Overview This crate palletizing and depalletizing line was integrated
in 2006 by Profipack Verpackungsmaschinen GmbH (Austria) around two
Yaskawa Motoman NX100 articulated robots - one palletizing cell and
one depalletizing cell - together with a Logipack vertical pallet
strapper. It is still installed at a German brewery, where it
palletized and depalletized crates for beer, CSD and mineral water
production until the whole line was stopped. Because it served
multiple product lines, it handles a wide variety of crate formats on
Euro pallets. The machine can be visited on request. Technical data
Manufacturer / integrator: Logipack (vertical strapper), Profipack
Verpackungsmaschinen GmbH (system integrator, Austria) Robots: 2x
Yaskawa Motoman NX100 articulated robots (palletizer + depalletizer)
Year of manufacture: 2006 Machine type: crate palletizing and
depalletizing line Capacity: 33,000 bph (160 bottles per layer) Pallet
format: Euro Crate formats: 5x4 - 400x300x300 mm / 6x4 - 400x300x270
mm / 5x4 - 400x300x210 mm / 4x3 - 355x275x345 mm / 4x3 - 400x300x330
mm / 5x4 - 355x275x255 mm / 5x4 - 400x300x290 mm Controls: Siemens
SIMATIC S7 PLC, B&R Power Panel HMI with ACOPOS servo drives, Danfoss

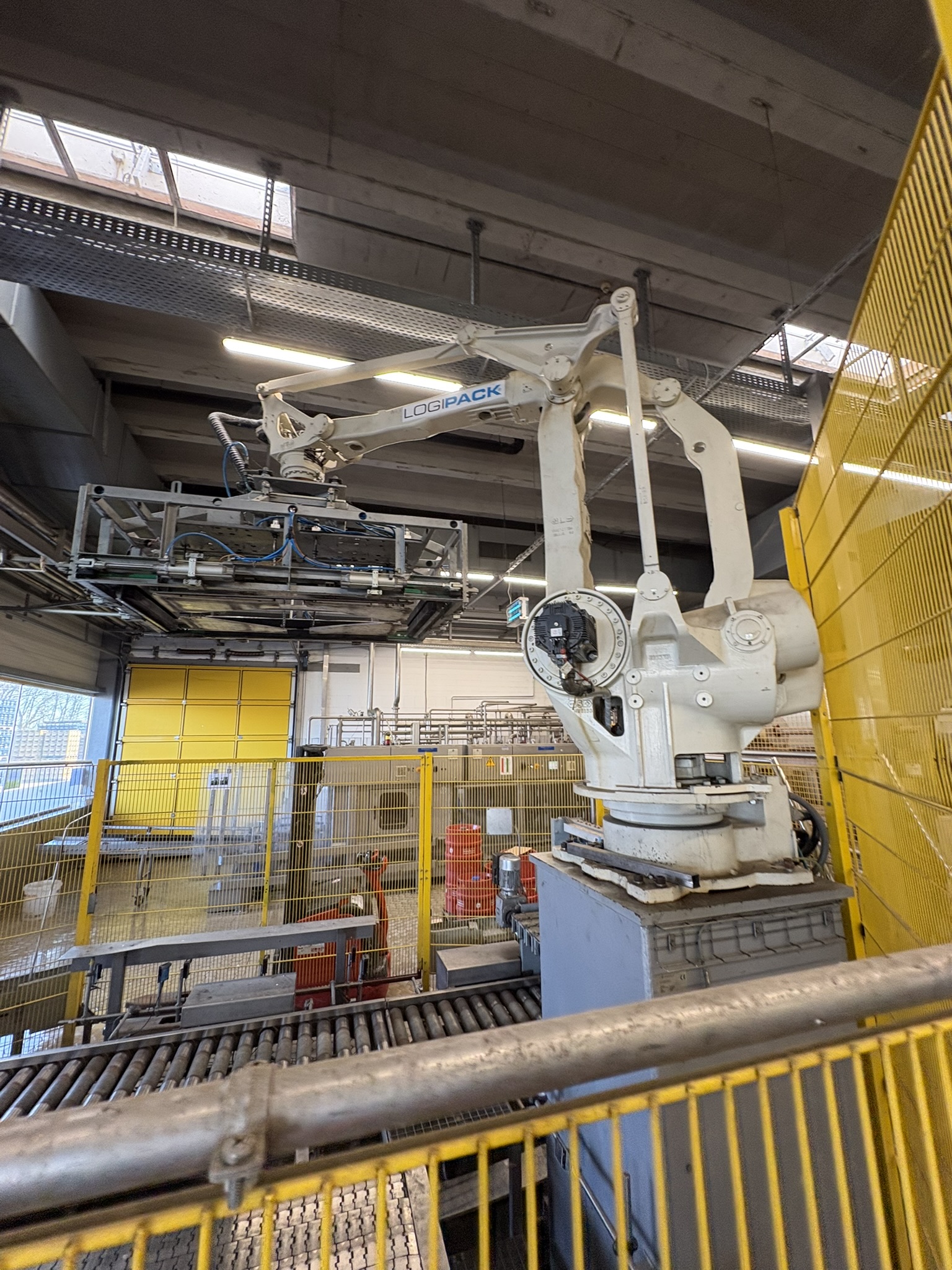

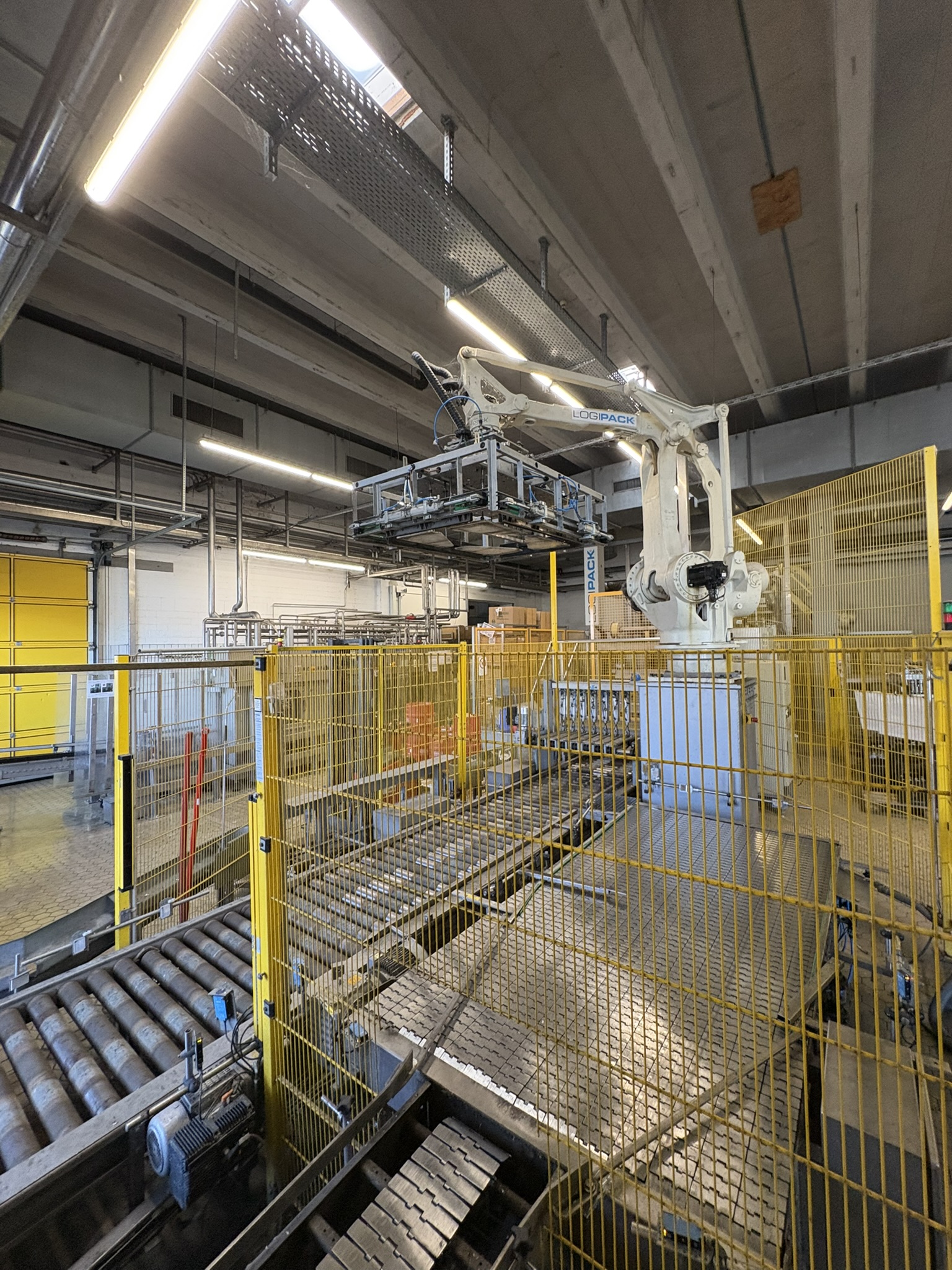

VLT 5000 frequency drives, SEW MOVIDRIVE Equipment Palletizer robot

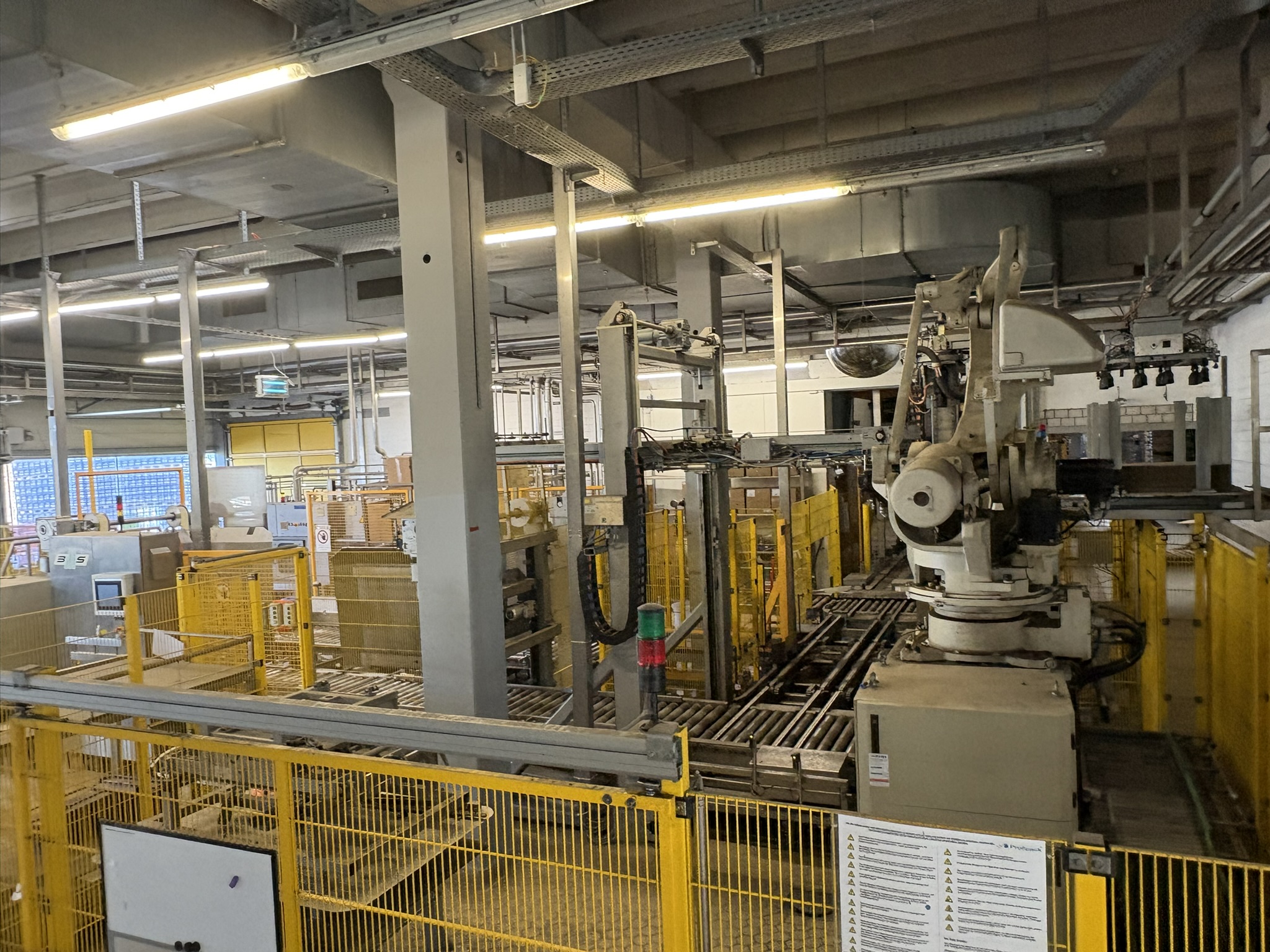

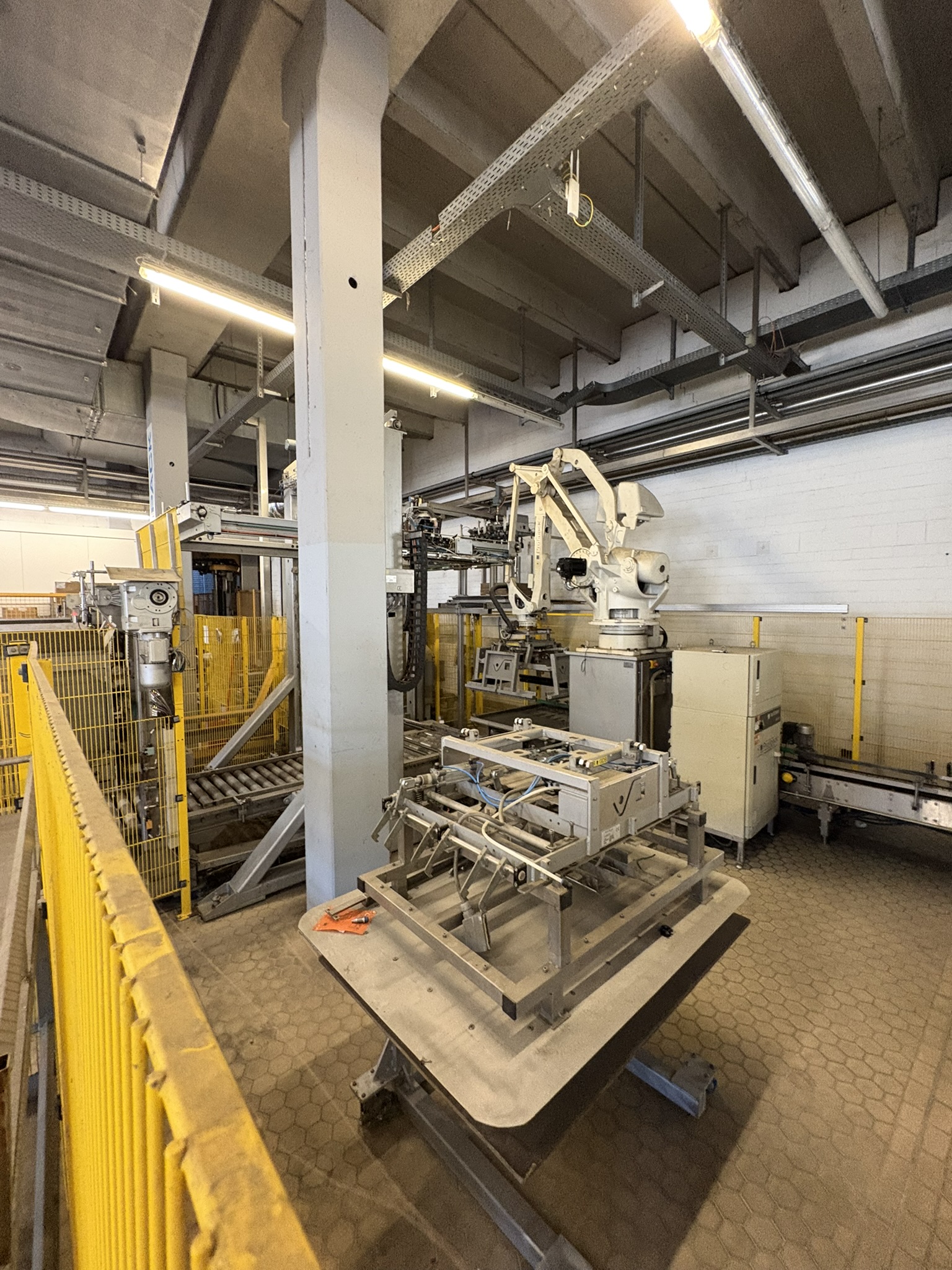

cell (Yaskawa Motoman NX100) with layer-gripper tooling Depalletizer

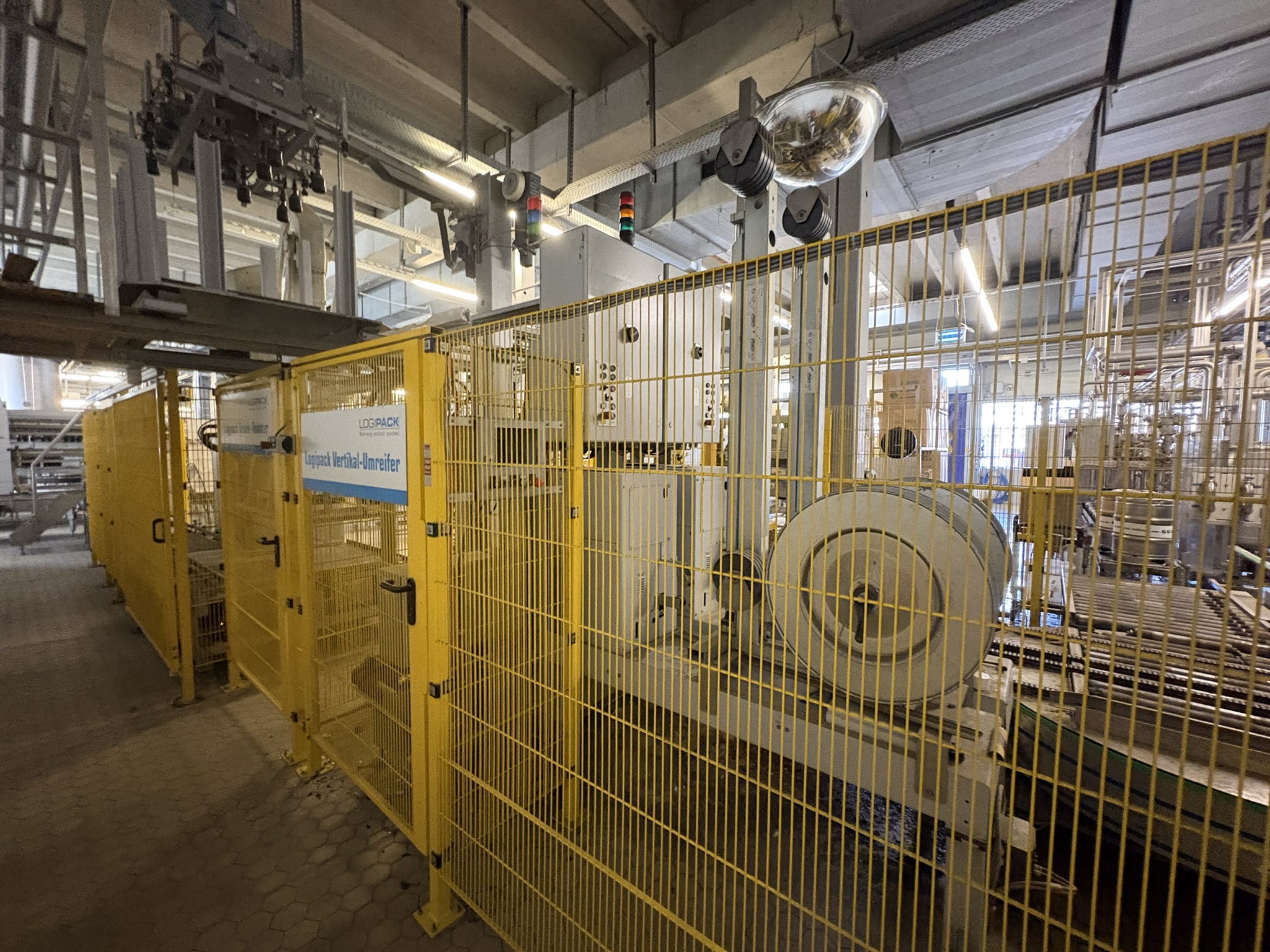

robot cell (Yaskawa Motoman NX100) with layer-gripper tooling Logipack

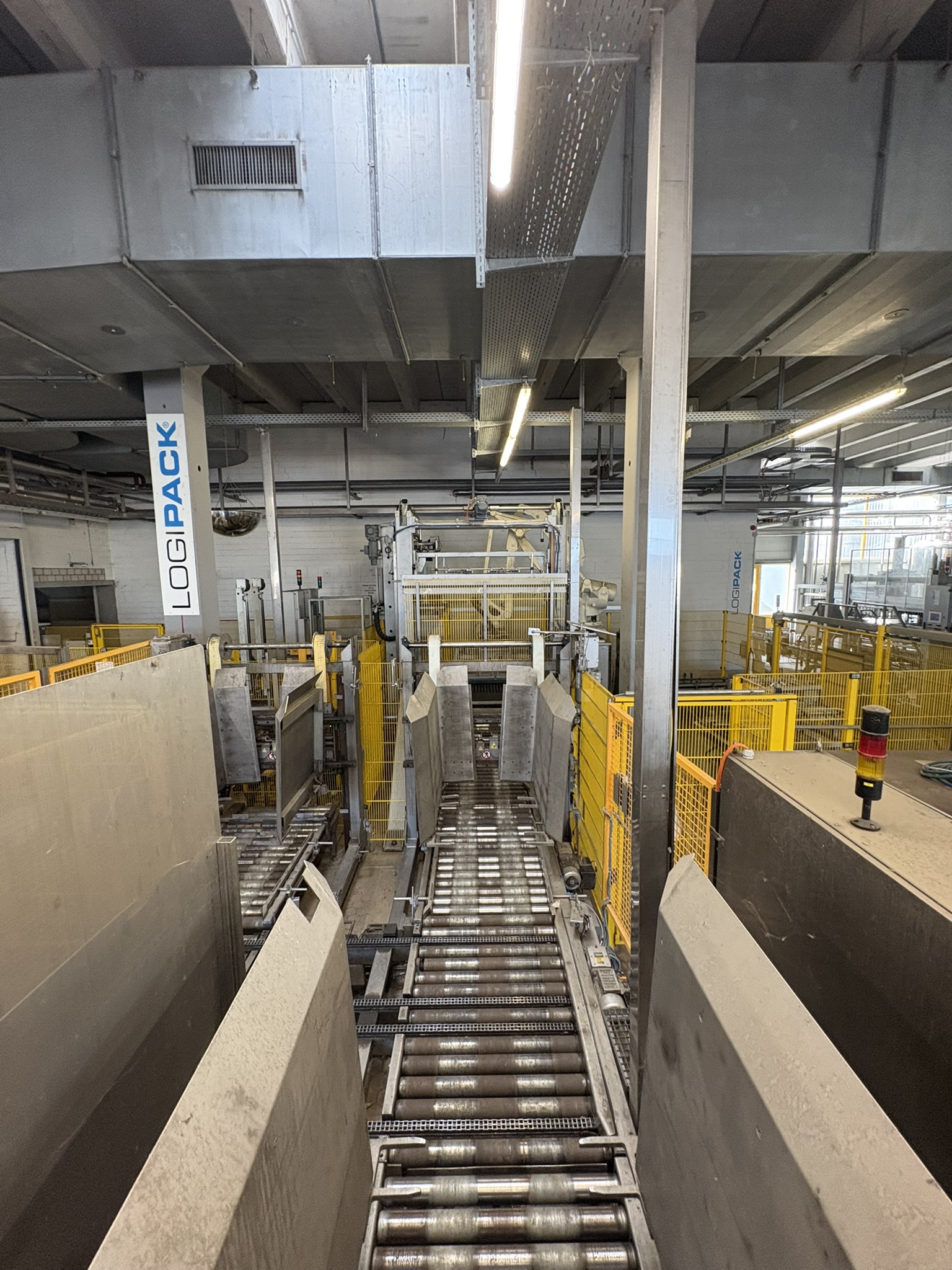

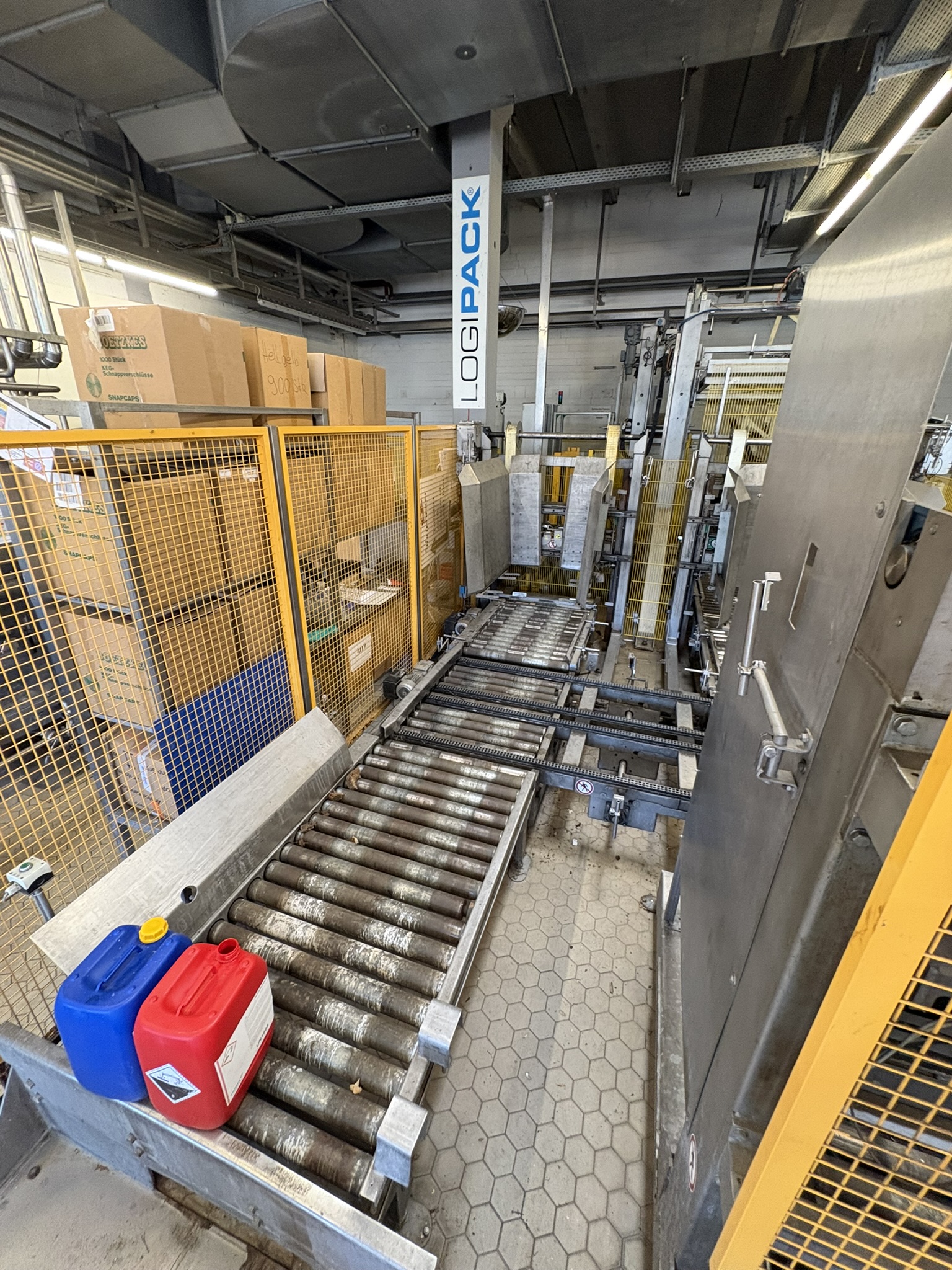

vertical pallet strapper Pallet and crate roller/slat conveyors
Layer-forming / grouping table Unloading table Pallet magazine
Separate BMS-branded control cabinet Safety fencing with light-curtain
guarding Condition Used - complete, still installed; no longer in
production (line stopped). Availability Available immediately.
Location: Germany. Can be visited on request. Dismantling, handling,
packing and truck loading can be quoted on request (EXW).
