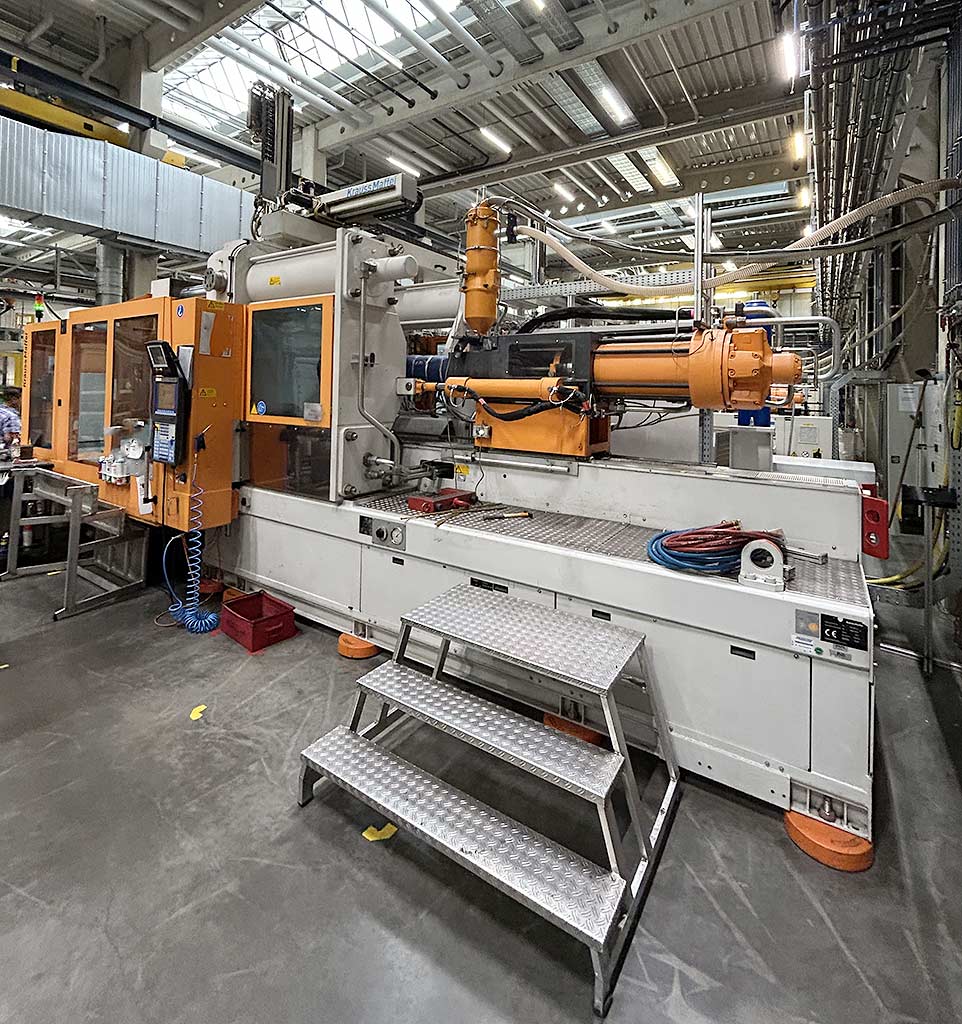

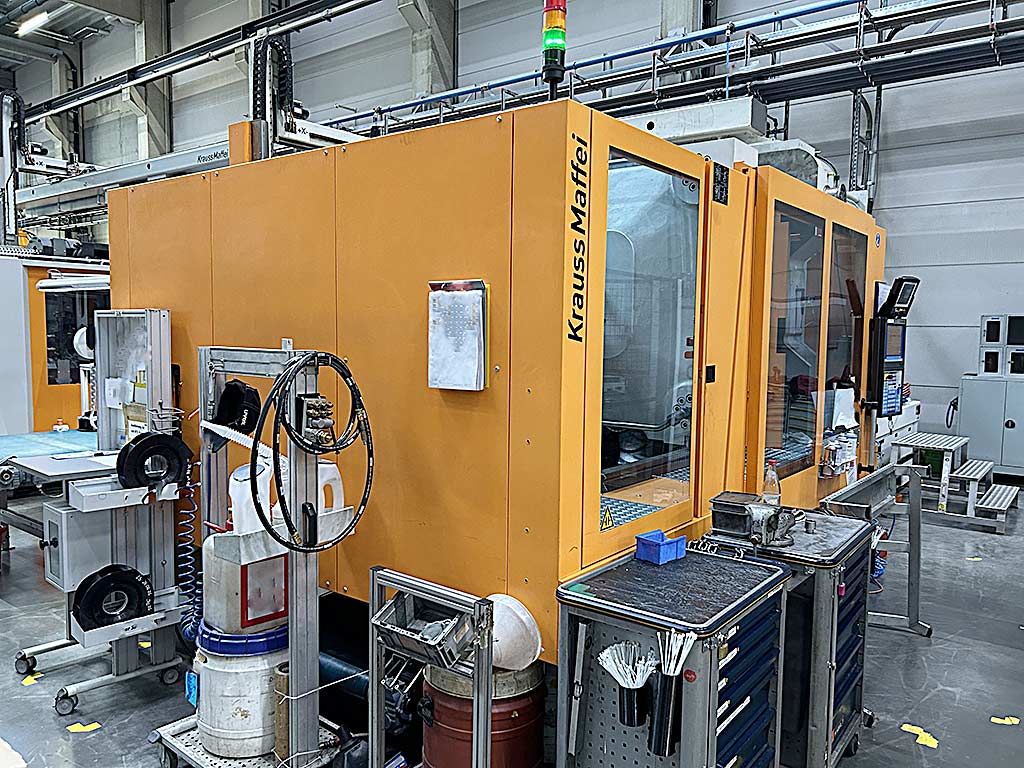

A fully hydraulic large-format two-platen injection molding machine
from Krauss Maffei with an LRX350 linear robot is available. Clamping
force: 6500kN, injection unit: SP3000, screw diameter: 70mm, L/D
ratio: 22.9, max. injection pressure: 2389bar, shot volume: 1232cm³,
shot weight: 1121g, injection rate: 462cm³/s, screw speed: 285rpm,
plasticizing rate: 108.6g/s, nozzle contact force: 129kN, mold opening
force: 345kN, mold opening stroke: 1150mm, min. mold height: 600mm,
max. daylight opening: 1750mm, ejector stroke: 250mm, ejector force:
95kN, max. mold weight: 11400kg, clear distance: 1200mm/1120mm, platen

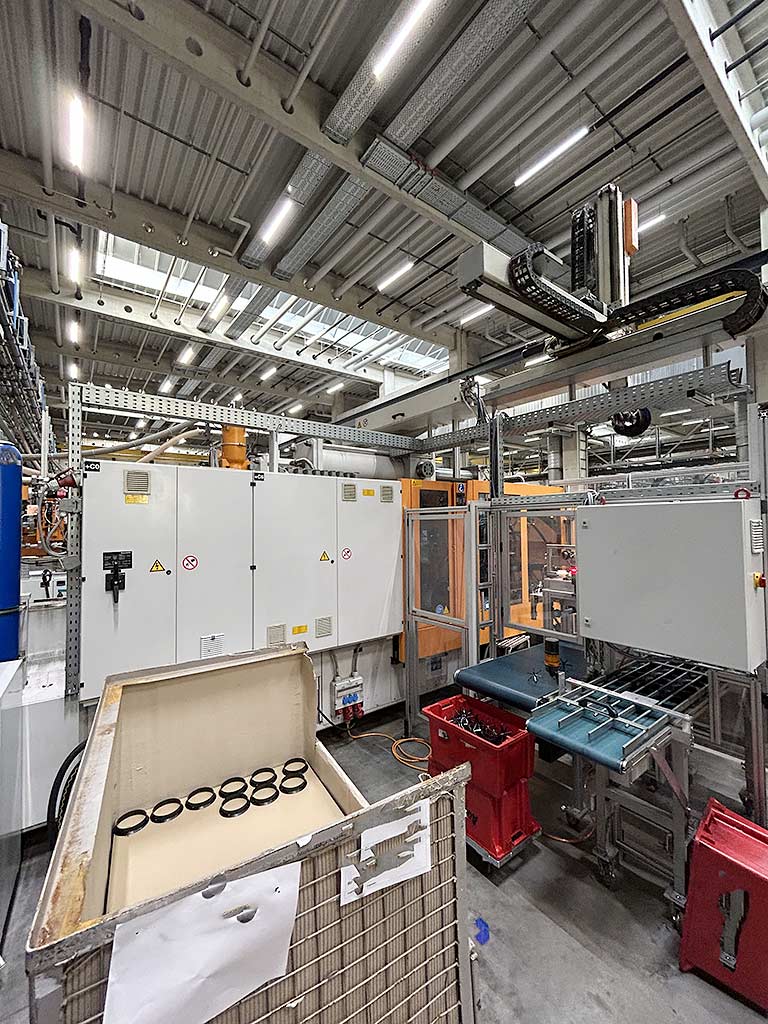

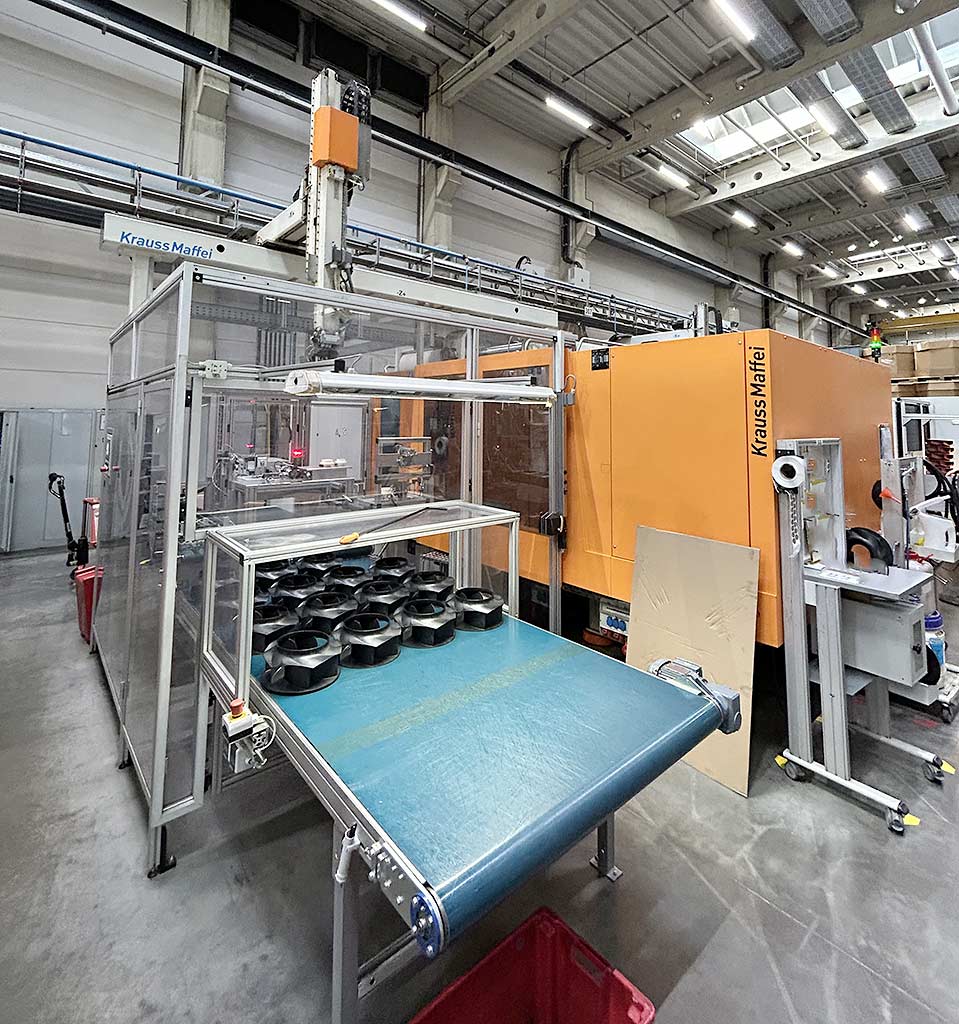

dimensions X/Y: 1510mm/1370mm. Robot payload: 35kg, travel X/Y/Z:
1200mm/2000mm/4000mm, conveyor dimensions X/Y: 2500mm/800mm, discharge
height: 1000mm, max. conveyor belt temperature: 70°C. Machine
dimensions X/Y/Z: approx. 8000mm/3000mm/2700mm, weight: approx. 31t,

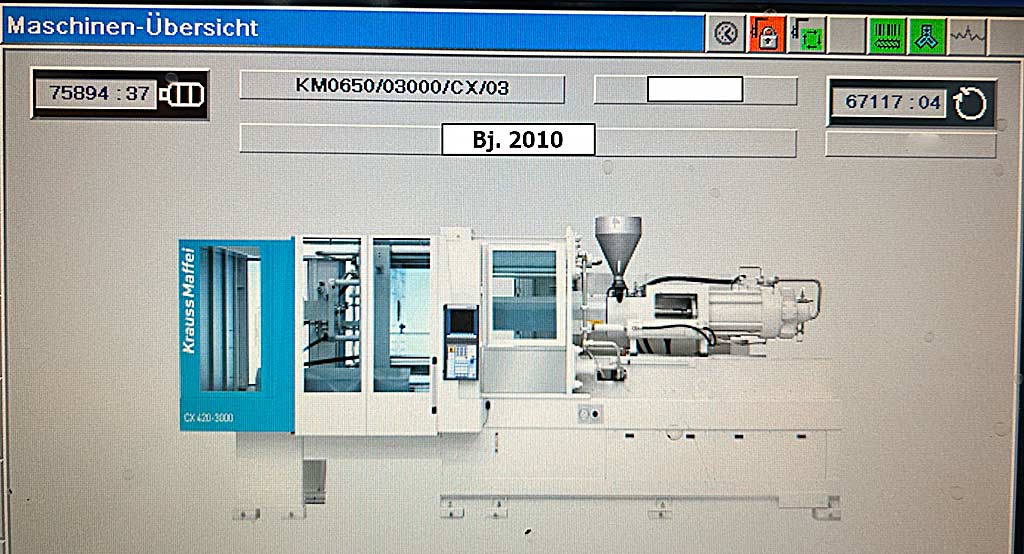

operating hours: approx. 75900h. Documentation available. An on-site
inspection is possible. Available from approximately November 2026.
