Flottweg three-phase decanter, Z4D-3/441, last used in a fruit juice
plant. Inner drum diameter: 420 mm Inner drum length: 1245 mm Drum
wall thickness: 10 mm The medium to be separated is fed into the
hollow center axis of the decanter. Centrifugal force causes the
solids to collect on the drum shell. A cylindrical-conical screw

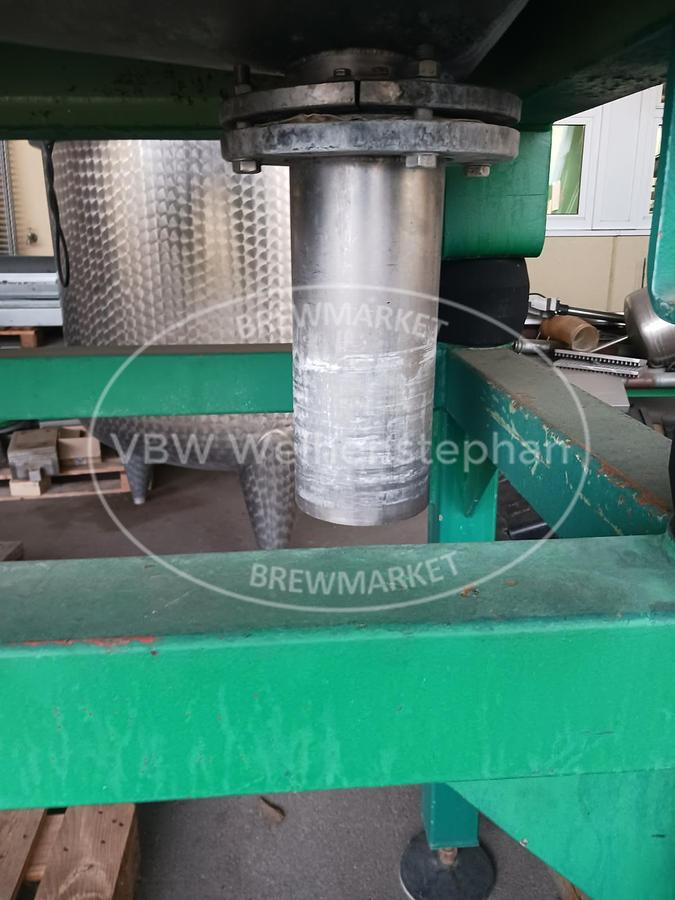

conveyor transports the ring of solids to the discharge openings,

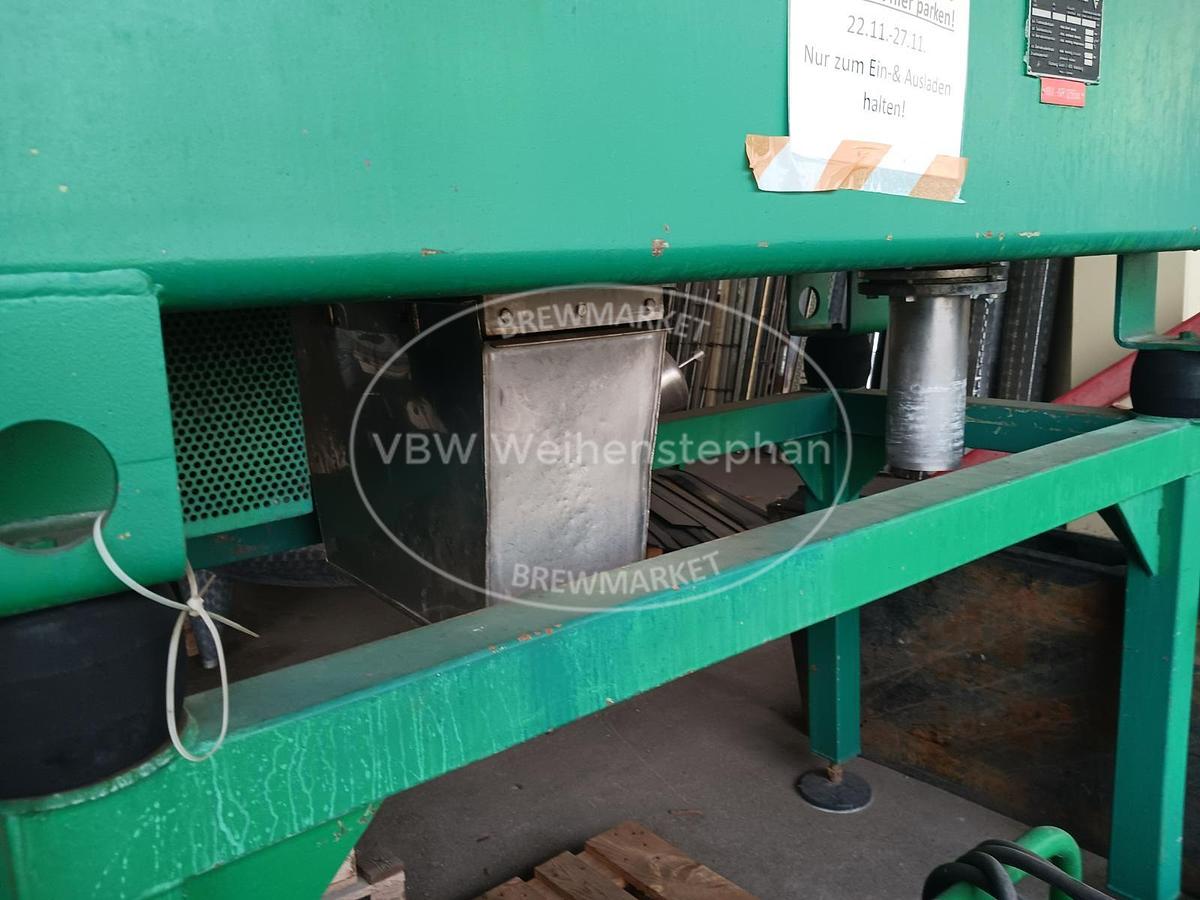

where it is ejected into the solids housing. The two liquid components
separate according to their specific density and form two hollow
liquid cylinders. The diameter of the liquid rings can be adjusted
using a peeling disc and overflow weir. One of the two phases is
discharged without pressure and one is discharged under pressure via
the paring disc. The moisture content of the solids and the purity of
the liquids can be controlled by: - Varying the phase separation discs
and paring diameter - Decanter speed - Screw speed, Additional title:
3-phase decanter, Capacity: 1500 l/h, Max. bowl speed: 4000 r/min,
Max. sediment-density: 1 g/cm³, Mass moment of inertia: 15.5 kgm²
with an empty drum, Weight: 2250 kg, Material: housing from stainless
steel 1.4301 (AISI 304); drum made of high-strength cast stainless

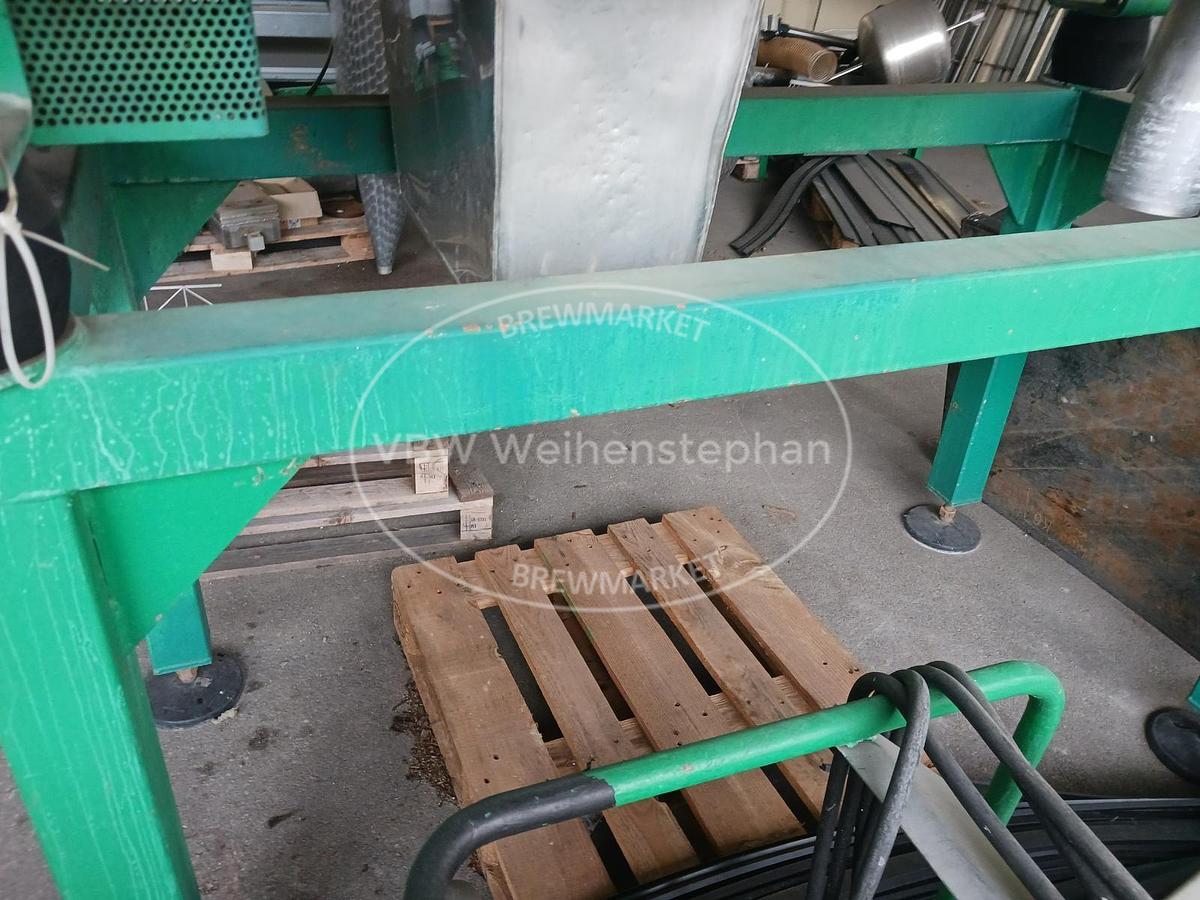

steel 1.4463, Position: free standing, Base construction: Horizontal
decanter drum in steel frame, on square tube frame with dome feet,

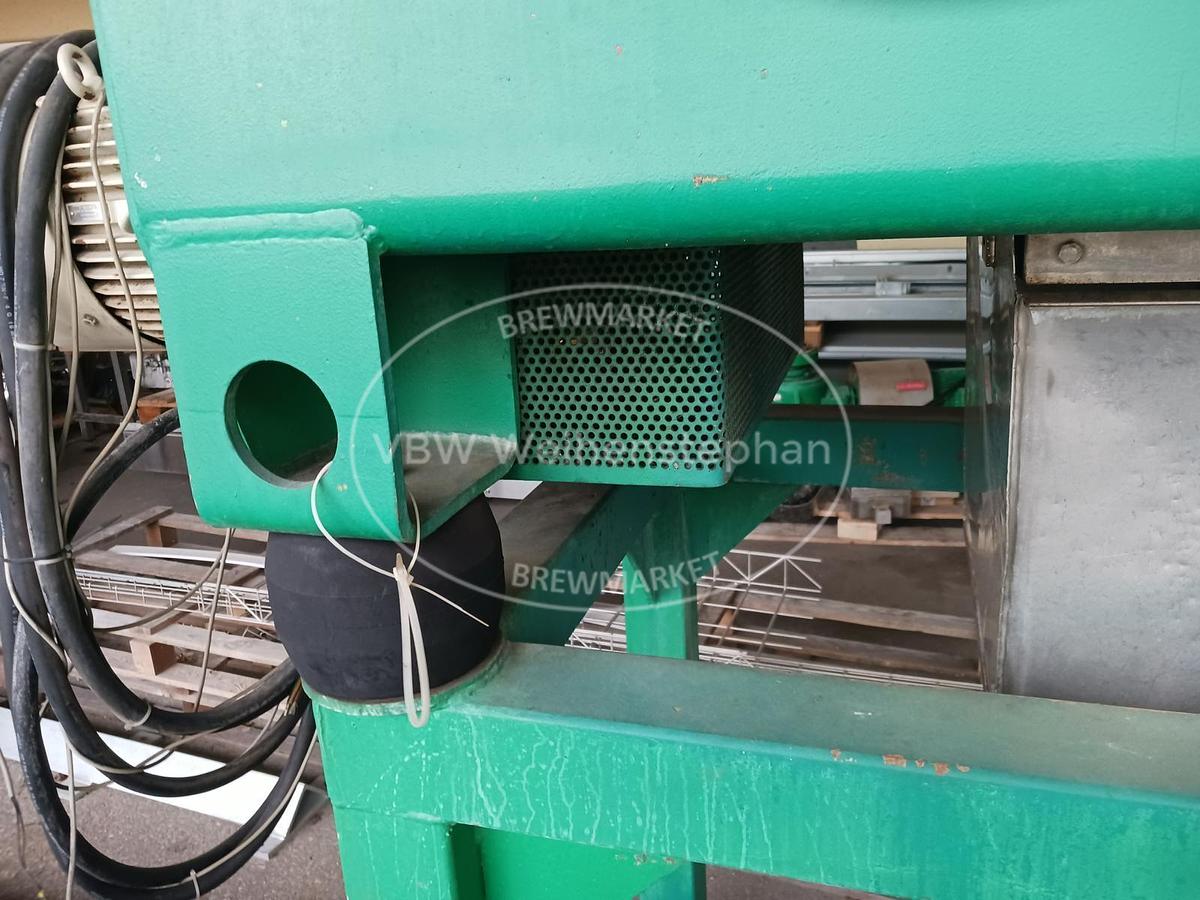

Features: Base with rubber mountings, electric motor (Loher 180 M, 22
kW)
