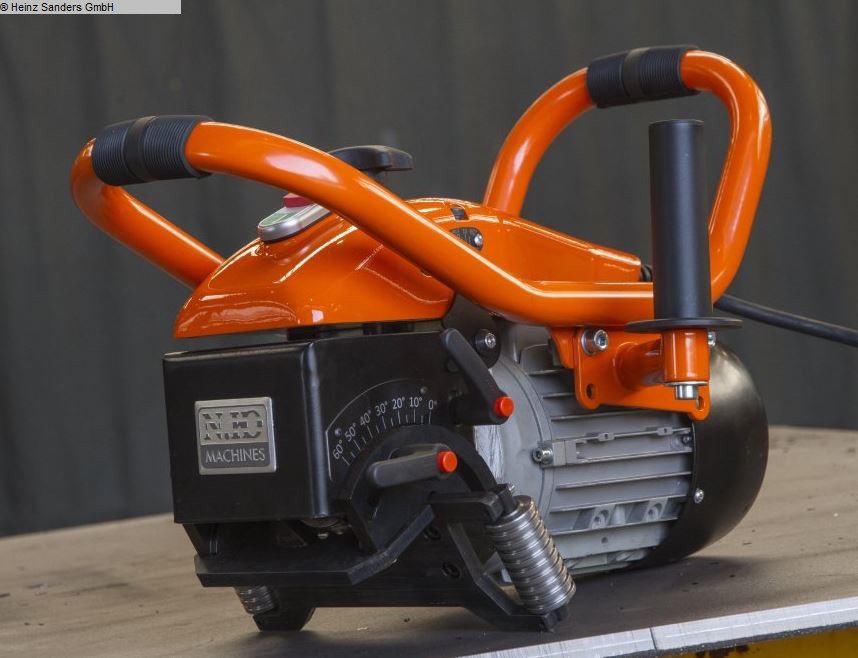

NKO Anfassystem B22 ZERO 板金バリ取り機

diameter: -- mm
workpiece length: -- mm
work piece width: 0 - 20 mm
speeds: 2850 U/min
range of angles: 0 - 60 (stufenlos) °
weight of the machine ca.: 19,5 kg
Maximum chamfer width 20 mm + face machining
Designed for chamfering and deburring straight edges, for the
so-called FACING - removing an unwanted layer of material on the
Front side of the workpiece, which is created, for example, by flame cutting a
sheet metal.
Specially developed for the production of visible chamfers and
weld preparations. Powerful electric drive for extreme
Charges.
* High performance motor
* stepless adjustment of the working angle in the range of 0° - 60°
* FACING - Edge processing at an angle of 0° to remove unwanted ones
Layers of material after flame cutting
* The unique mechanical scale to adjust the bevel width for higher
precision
* A very compact and ergonomic design for high work productivity
* Circumferential protective frame against damage and versatile grip options
* With the appropriate accessories, pipes from D= 150 mm can also be processed
* Additional adjustable handle
- Chamfer width (hypotenuse): 0 - 20 mm = 400 Mpa / 0 - 16 mm = 400 Mpa
- Motor: 1100W
