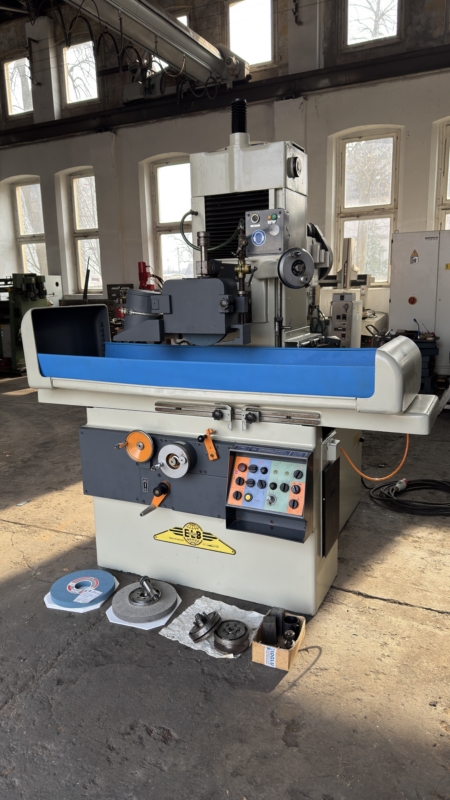

ELB 6/4 VA 平らな粉砕機

grinding length: 600 mm
grinding width: 400 mm
workpiece height: 450/510 mm
grinding spindle - swivable: 10 °
grinding spindle slide: 450 mm
horizontal movement: 320 mm
swivability (for helical bores): 1 °
surface area: 900 x 300 mm
stroke: 50 mm
clamping slots: 1
cross travel: 320 mm
longitudinal feed: 600 mm
table load: max 320 kg
weight: 2.450 kg
total power requirement: kW
dimensions of the machine ca.: 2000 x 1900 x 2350 mm
Grinding length: 600 mm
Grinding width: 400 mm
Max. workpiece height: 450 / 510 mm
Swivelling grinding spindle: ±10°
Grinding spindle slide travel: 450 mm
Cross travel: 320 mm
Table swivel (for angular grinding): ±1°
Clamping surface: 900 × 300 mm
Vertical travel: 50 mm
T-slots: 1
Cross travel: 320 mm
Longitudinal travel: 600 mm
Max. table load: 320 kg
Machine weight: 2,450 kg
Space requirement (L × W × H): approx. 2,000 × 1,900 × 2,350 mm
16 A three-phase power supply required
