Code: 0239
Brand: STROMAB

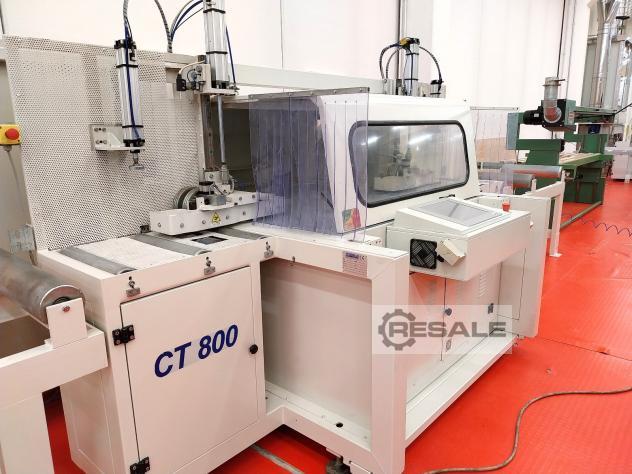

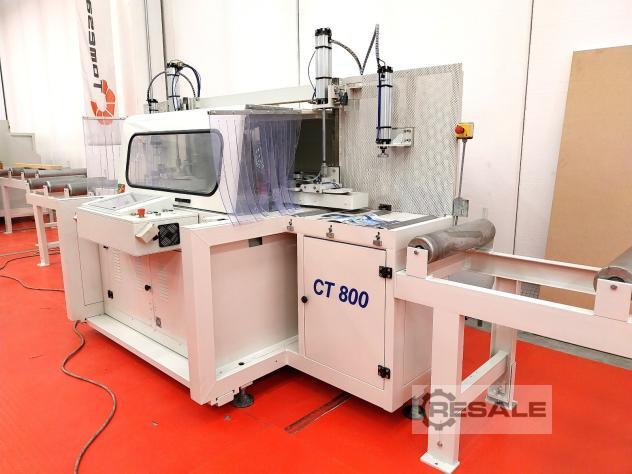

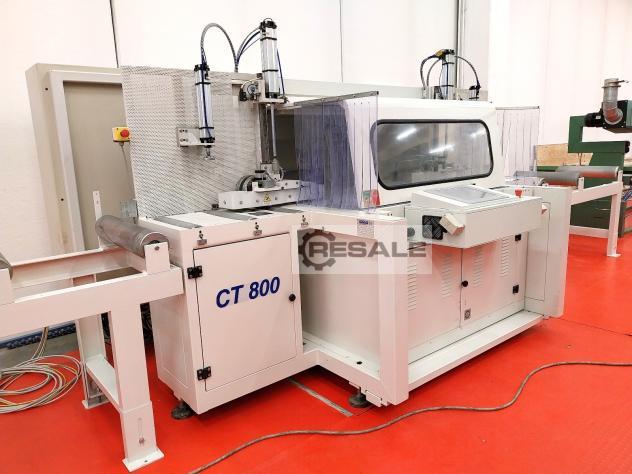

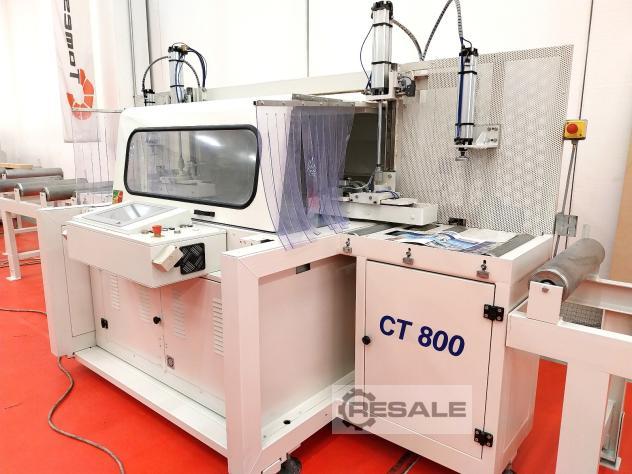

Model: CT 800 - CE Standard
Cutting centre for beams, wood carpentry, wooden roofs, sawmill,
balconies, and various - CE Standard
Technical data
Blade diameter mm 800
Motor power Hp 20

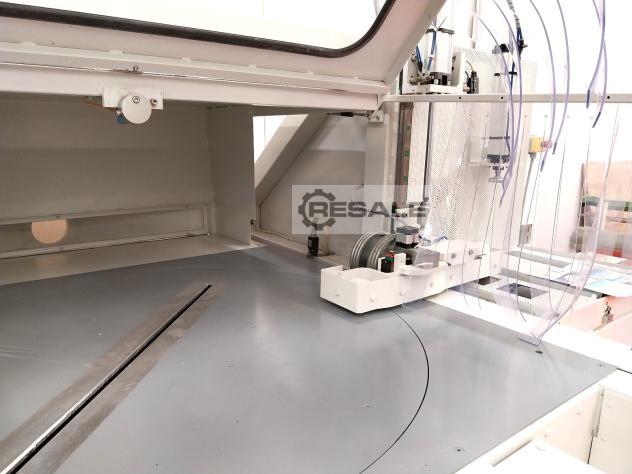

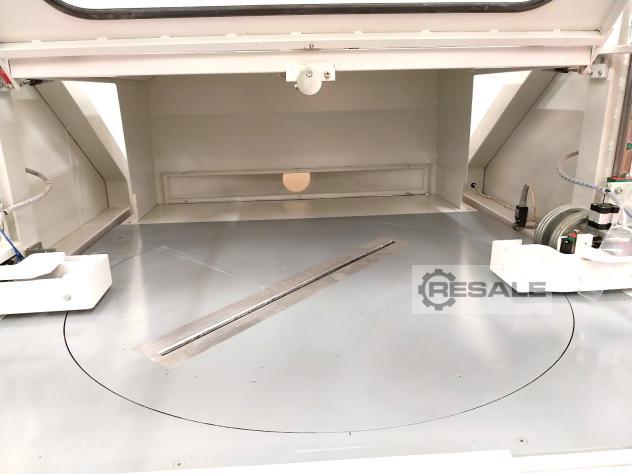

N° 5 axis controlled by programmer : Saw table rotation (
0-340°) - Speed of the saw table rotation 9 sec. each 180° -
Blade beveling from 90° to 45° (speed of the blade beveling 20
sec.) - Height of the blade above the table ( speed 15 sec. each
10 cm) - Beam positioning and measuring ( speed 17 mt/min) -
Motorized positioning of the saw table compared to the saw fence mm
600
Photocell for the automatic reading of workpiece beginning

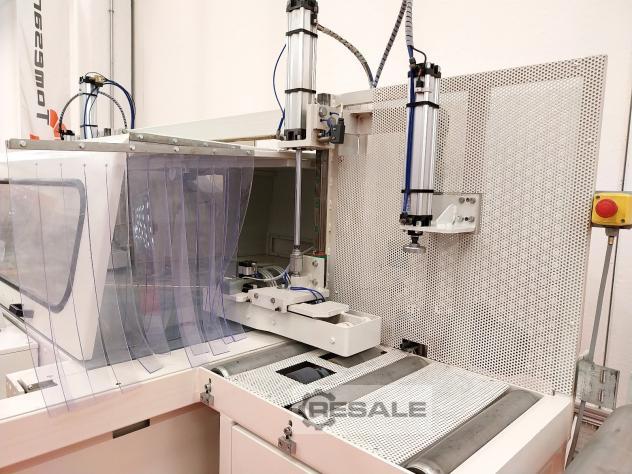

Pair of vertical cylinders for cutting optimisation management
Cutting capacity at 90° with single stroke: mm 280 x 290 / 250 x
390 / 200 x 450
At 90° with saw table sliding and repeted cut mm 280 x 770 / 250 x
840
At 45° with single stroke mm 200 x 210
At 45° with saw table sliding and repeted cut mm 200 x 760
Maximum ripping height mm 300
Cutting T51246512 precision : +/- 2 mm on 10 mt beam (straight
beam ) - +/-0,2° on rotation edge of the table - +/-0,2° on
inclination angle of the blade

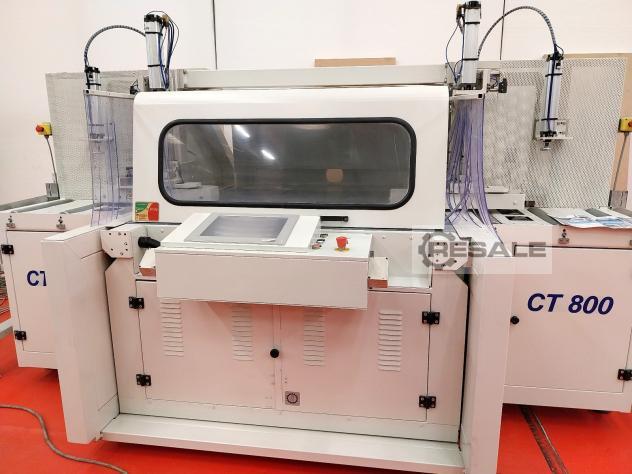

Control by industry-standard PC Touch- Screen - Windows Operating
System - USB ports - Ethernet
Rollers: :
n° 3 idle rollers benches mt. 2 with rollers diameter 133 mm
Widia blade diameter 800 mm
Compressed air 6/7 bar
Machine weight kg 2900
Total weight kg 3250 (Machine + roller benches)
Italy
