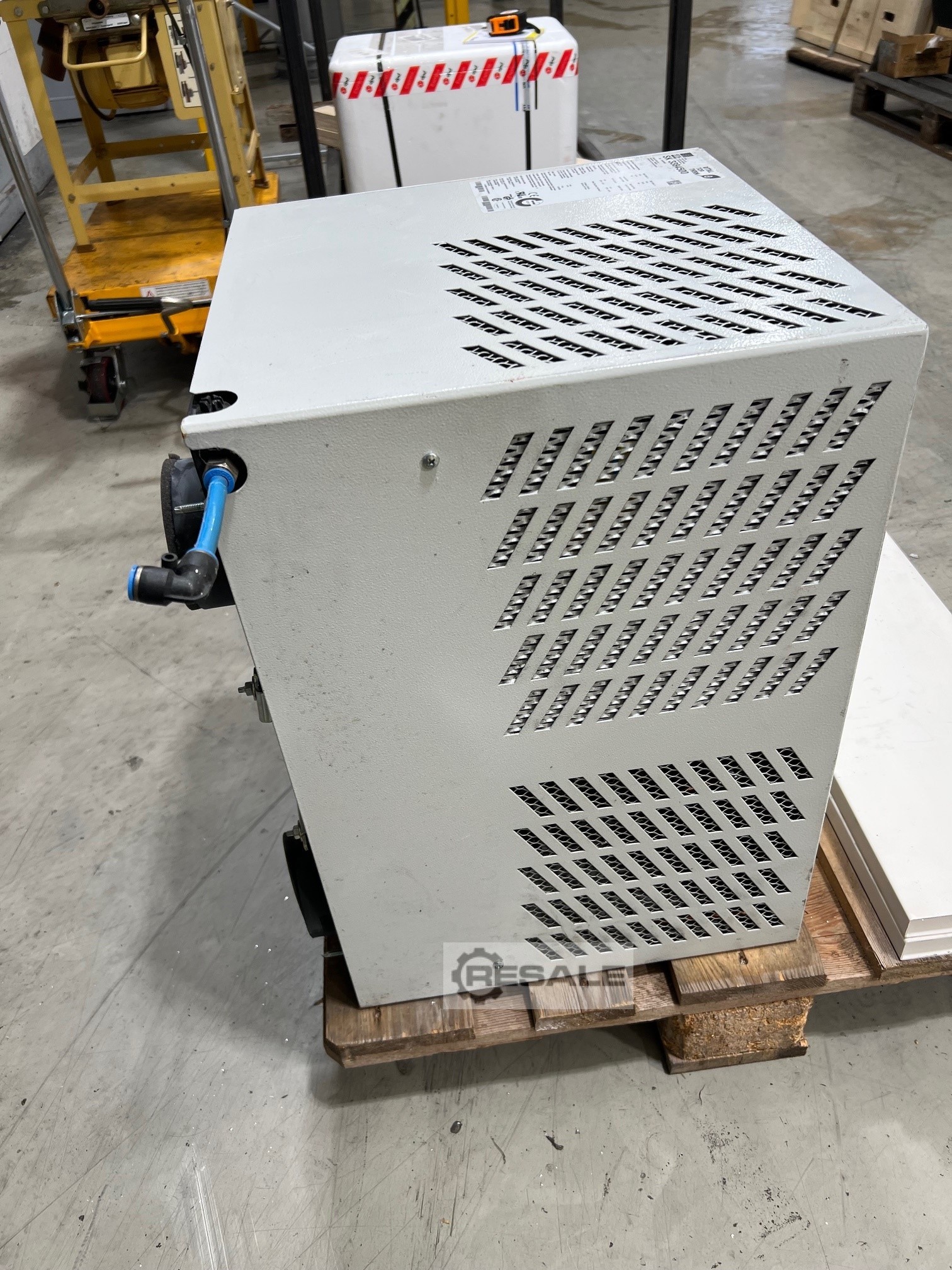

Cooling Units RITAL SK 3384500

Order number: SK 3384.500
Design: Roof structure
Product
Energy-efficient Blue e rooftop air conditioners with integrated e-Comfort controller and electric condensate evaporation as standard.
Advantages
Can be networked with e-Comfort Controller with IoT interface via Blue e IoT adapter from 500 W cooling capacity
Material: Sheet steel
Colour: RAL 7035
Scope of delivery:
- Condenser with hydrophobic RiNano coating
- Integrated electrical condensate evaporation
- Completely wired, ready for connection (plug-in terminal block)
-Drilling jig
- Mounting material
Total cooling capacity according to DIN EN 14511:
Cooling capacity L35 L35/50 Hz: 1.6 kW
Cooling capacity L35 L35/60 Hz: 1.75 kW
Cooling capacity L35 L50/50 Hz: 1.15 kW
Cooling capacity L35 L50/60 Hz: 1.21 kW
Rated operating voltage:
230 V, 1~, 50 Hz/60 Hz
Hint:
The 3273.500 roof-mounted air conditioner is also suitable for office applications due to its low noise level.
Maximum rated current:
At 50 Hz: 5.5 A
At 60 Hz: 6.4 A
Maximum starting current:
At 50 Hz: 14.7 A
At 60 Hz: 13.6 A
Air flow (free airflow):
External circuit: 1,600 m³/h
Internal circuit: 491 m³/h
Energy Efficiency Ratio (EER) 50/60 Hz L35 L35
Ndsbpexac T Dox Tddcjb
Cooling factor L35 L35 (EER) 50 Hz: 2.3
Cooling factor L35 L35 (EER) 60 Hz: 1.92
Design: Roof structure
Dimensions:
Width: 597 mm
Height: 417 mm
Depth: 475 mm
Degree of protection according to IEC 60 529:
External circuit: IP 34
Internal circuit: IP 54
Refrigerant/coolant:
Refrigerant: R-513A
Capacity: 0.88 kg
Global Warming Potential (GWP): 631
CO₂ equivalent (CO₂e): 0.56 t
Electrical connection:
Terminal block
Duty cycle: 100%
Temperature:
e-Comfort controller (factory setting +35 °C)
Temperature range:
10 °C... 55 °C
Max. operating temperature at 60 Hz: 53 °C
Storage temperature range: -40 °C... 70 °C
Setting range: 20 °C... 53 °C
Power Consumption Pel
Power consumption L35 L35/50 Hz: 0.7 kW
Power consumption L35 L35/60 Hz: 0.91 kW
Power consumption L35 L50/50 Hz: 0.79 kW
Power consumption L35 L50/60 Hz: 1 kW
Permissible operating overpressure (p. max.): 28 bar
Fuse: Circuit breaker/fuse: 10 A
Packaging unit: 1 pc.
Net weight: 42.5 kg
Gross weight: 51 kg
Customs Tariff Number: 84158200
EAN: 4028177322875
ETIM 9: EC000855
ETIM 8: EC000855
ECLASS 8.0: 27180704
Product name:
SK Blue e Cooling unit, roof structure, 1.6 kW, 230 V, 1~, 50/60 Hz, sheet steel, BHT: 597 x 417 x 475 mm
seller offer No. resale 167980935
