m 91 used for sale

Used Capsuling Machine ROBINO GALANDRINO up to 15000 bph Introduction The machine provides a highly efficient solution for the bottling process. Specifically, it is suitable for operations requiring a machine with a production capacity of up to 15,000 bottles per hour (bph). This specific model, in particular, applies heat-shrink capsules, ensuring a secure and uniform closure on a wide range of bottles. Technical Specifications The MONOSTADIO Z T8 model, for instance, features 8 thermal heads, allowing it to operate at speeds of up to 15,000 bph. Consequently, the machine moves bottles from left to right, which is crucial for integrating it with other line equipment. Safety and Protections The machine, therefore, prioritizes operational safety with guards installed along its entire perimeter. Consequently, these safety guards minimize the risk of accidents during operation and ensure a  ...

Technical Specifications & Performance Data The Used Capsuling Machine Robino & Galandrino MONOSTADIO FT6 is a high-precision rotary capsuler designed for PVC capsule application on sparkling wine formats. Engineered for reliable operation in demanding beverage production environments, this second hand unit combines throughput with precise capsule placement for professional finishes on glass bottles. Manufacturer / Model: Robino & Galandrino MONOSTADIO FT6 Year of manufacture: 2010 Machine category: Capsuling machine (PVC capsules) Production speed: up to 7,000 bottles/hour (format-dependent) No. of heads: 6-head rotary carousel for continuous operation Container type: Glass bottles Bottle format: 0.75 L (typical sparkling wine “Spumante” format) Product type focus: Spumante and sparkling-style wine applications Safety: Safety features included (guarding and interlocked access) ...

Used Shrinkable Capsuling Machine Robino & Galandrino Monostadio Z9T The Used Shrinkable Capsuling Machine Robino & Galandrino Monostadio Z9T is a shrinkable capsuling machine designed to optimize high-performance bottling lines. In fact, this model delivers an advanced technical solution, providing precise and reliable application of PVC shrinkable capsules on bottles of various sizes and types. This machine handles bottle formats with diameters ranging from Ø55 to 120 mm and heights from 220 to 360 mm. Main Technical Features Manufacturers produced the machine, model Monostadio Z9T, in 2007. It features a rotary multi-bell distributor with 9 heating heads. Consequently, this configuration ensures uniform heat distribution, which allows the capsules to shrink evenly and adhere perfectly to the bottle neck. Moreover, the multi-bell system optimizes capsule handling, minimizes downtime ...

An automatic glass sandblasting cabin is offered. Working range X/Y: unlimited/1500mm, extraction air capacity: 1800m³/h, filter area: 17m², filter differential pressure: 1500Pa, operating principle: automatic surface blasting operation, filter system: cartridge filter unit with pneumatic cleaning, glass transport: vertical roller conveyor system, control: PLC control with digital control panel. Equipped with separate filter unit, blasting nozzle feed unit, water separator, enclosed cabin construction with rubber buffer inlet. Weight: approx. 1550kg, overall dimensions X/Y/Z: approx. 4500mm/2850mm/1650mm. Inspection possible by arrangement.

Technical Specifications & Performance Data The Robino & Galandrino MONOSTADIO ZT9 is a high-throughput capsuling machine engineered for continuous operation in beverage production environments. Purpose-built for glass wine and spirits applications, it delivers consistent capsule application at line speeds suitable for modern used bottling line configurations. Manufacturer: Robino & Galandrino Model: MONOSTADIO ZT9 Year of manufacture: 1994 Application: PVC capsule application on glass bottles Nominal production speed: up to 15,000 bottles/hour No. of working heads: 9 (continuous-motion carousel) Bottle format supported: 0.75 L Container compatibility: Glass (integration-ready with lines handling PET or aluminum containers upstream/downstream) Capsule magazine: Single stock position Safety: Protective guards and interlocks included Documentation: Manuals available Detailed dimensions, we ...

Used capsuling machine Robino & Galandrino Minibloc year 2023 – 3000 bphThe used capsuling machine Robino & Galandrino Minibloc year 2003 – 3000 bph offers a compact and versatile solution for automatically applying capsules to bottles of still and sparkling wine. As a result, this machine suits diverse production environments. Robino & Galandrino designed this monoblock machine to meet different production needs while ensuring high operational efficiency and consistent product quality.Structure and mechanical configurationRobino & Galandrino configured this machine as a Minibloc automatic capsuling monoblock. Specifically, the design includes two operational heads, each performing specific stages of the capsuling process. The infeed screw aligns and guides the bottles precisely into the processing area. In this way, the machine ensures accurate bottle positioning throughout th ...

Used Capsuling Machine Robino and Galandrino up to 15000 bph In the bottling field, efficiency and precision are paramount. They ensure maximum productivity and uphold high-quality standards. Consequently, the used Robino and Galandrino capsule machinery emerges as a technologically advanced solution. Specifically designed to meet particular needs, it boasts a capacity of up to 15000 bph. This article meticulously explores the machine’s technical characteristics and specifications. Furthermore, it highlights how it can significantly optimize bottling processes. PVC Capsule Distributor of the Used Capsuling Machine Robino and Galandrino up to 15000 bph The PVC capsule distributor, ingeniously designed for continuous feeding, guarantees an even distribution of capsules on bottles. This essential component steadfastly maintains a steady production flow. Moreover, it ensures each bottle ...

Used palettizer MONDO & SCAGLIONE P0 up to 1000 box/hour The machine delivers a highly efficient and versatile solution for bottling lines. Therefore, it optimizes the palletizing process and perfectly suits lines with a production capacity of approximately 4,000 bottles per hour. Technical features of the MONDO & SCAGLIONE palettizer The palettizer, designed by the renowned company MONDO & SCAGLIONE, ensures high reliability and performance. Moreover, it uses a one-way carton inlet with a motorized roller conveyor, which simplifies and accelerates load management thanks to its integrated carton separator. Additionally, the machine moves loads precisely and quickly across three axes. Its iron structure provides durability and robustness, while the safety protections, in turn, safeguard operators during use. The palettizer MONDO & SCAGLIONE also simplifies operational control through its  ...

A flatbed glass cutting system is offered. Working range X/Y: 3700mm/2600mm, glass thickness: 2mm-19mm, cutting speed: 120m/min, positioning accuracy: +/-0.15mm, table surface: felt covering with air cushion function, bridge design for linear and shape cutting, breakout bars: pneumatically controlled, control: CNC control. Weight: approx. 3200kg, overall dimensions X/Y/Z: approx. 4650mm/3400mm/1350mm. Inspection possible by arrangement.

Offer 26135 Technical data: - Pressure capacity infinitely adjustable 25 t - Stroke infinitely adjustable 300 mm - Torque on the rotary shafts 6900 NM - Speeds on the lower rotary shafts 4 + 8 rpm - Speeds on the upper shaft infinitely variable 2 - 12 rpm - Digital + analogue actual value display - Drive 400 V / 6 kW - Space requirement approx. W 1480 x H 1100 x D 800 mm - Weight approx. 1300 kg - Bending performance if tools are available - Edges with W 125 120 x 16 mm - Straightening without straightening beam 100 m³ - Pipe ( pressing process ) 2 " - Ring bending ( flat material upright ) 80 x 10 mm - Ring bending ( round tube ) 60 x 4 mm - Mandrel bending 60 x 2.6 mm - Round bending ( flat ) 70 x 12 mm - Bending tools : - Bending tools, sharpening tools + prisms - Various other pipe bending tools incomplete

Key data: 500 mm

Max. saw blade diameter: 500 mm Automatic positioning of length and angle (90° or 45°), intermediate mitres adjustable from the front Moving roller conveyor Material support pneumatically folds up Minimum quantity spraying device USB Port Instruction manual Weight: 1400 kg

MCB2522 4 roll hydraulic plate bending machine Make Davi Italy - year 03/95 Plate width 2500 mm Plate thickness 10 mm Prebending 8 mm top roll size 220 mm Electric power Hp 7,5 380/50 Vac Configuration installed: -Hardened rolls -Conical hydraulic attachment -Digital readouts -Extended rolls front shafts -Predisposed with additional hydraulic circuitry to connect a side support or top support ---- Cleaned lubricated , tested Machine refurbished in working conditions ready for use. CE quality certification made in Italy . Manuals and schematics with the machine.

General SKU025C042 MakeServo-Lift GmbH / Pharmatech TypePharmalift Hoist No.E-4398 A Year of construction1992 LocationBarneveld Main Features MaterialStainless steel Motor1.5 KW Height2550 mm Specified Features - Lifting/tilting machine MaterialStainless steel 1.4301 (304) Lifting machineSlewable IBC hoist (1x) Max. weight150 KG Lifting height695-2550mm Hydraulic drivecheck With hydraulic unitcheck Motor1,5 KW, 230/400 Volt Information With switchgearcheck Floorspace1,8x1,0 M Total height2,9 M Extra Specifications- With 1x IBC (316), Dim. 500x500x400mm, Conical bottom 350mm Lifting/tilting machinesDiscountServoliftConveying systems > Lifting/tilting machinesDiscountBrand > Servolift What you can expect from Foeth: -- Machine is in working condition -- At a reduced price compared to new -- Ready for shipping to any destination worldwide -- You are welcome to inspec ...

GeneralUniversal Machining Centre with rotating viewing panel and Electronic handwheel; Control: 3D-Control Heidenhain TNC 640 Technical DataFeed rate longitudinal/transverse/vertical60000/40000/40000 mm/minRapid traverse longitudinal/transverse/vertical60/40/40 m/minWorking area 1Longitudinal2100 mmCross2100 mmVertical1250 mmMiscellaneousClamping SystemDIN 69872 Tool changerApplicationUniversal Type of magazineChain Type of gripperDouble gripper Universal milling head with controlled B-axisUniversal milling head with controlled B-axis SK 50 Continuously positioning universal milling head (B-axis) with integrated motor spindle for 5 axes positioning and simultaneous machining. - swivel angle: from horizontal position to max. 250° (70NC rotary tableType of Measuring system Direct measuring systemNumber of Slots 13Slot width 18 mmMaximum load (table centre) 8000 KgCentre bore 50H6 mmTab ...

GeneralUniversal Machining Centre; Control: 3D-Control Heidenhain TNC 640 Technical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minWorking area 1Longitudinal1600 mmCross1600 mmVertical1100 mmTool changerApplicationHorizontal Type of magazineWheel Type of gripperDouble gripper Number of tools60 MiscellaneousClamping SystemDIN 69872 NC rotary tableType of Measuring system Direct measuring system4. Axes (swivelling range) 360 x 0,001 degreeRotation speed max.4. Axis 15 rpmDistance between T-Slots 125 mmNumber of Slots 9Slot width 18 mmMaximum load (table centre) 4500 KgCentre bore 50H6 mmTable surface Ø 1600 x 1250 mmChip removal2 worm conveyors in the machine bed convey into a chip conveyor (scraper type conveyor), with interval control, placed at right angles. discharge height: 950 mm / 37.4 in width: 580 ...

General SKU215X093 MakeCMA LocationBarneveld CEcheck TypeMAT Main Features MaterialStainless steel Volume125 Ltr. Motor5 KW Specified Features - Tumbler mixer MaterialStainless steel 1.4306 (304L), Stainless steel 1.4435 (316L) Tumbler mixercheck Capacity150 kg With motor1,1 kW, 400 volt, Speed mixer11 rpm Information No.211 Year of construction2008 With switchcheck (as is) With switchgearcheck (as is) Total height3,50 m Weight1000 kg Extra Specifications- Tumbler mixer with sieve granulator attached - 4 containers with lid - sieve granulator with 4 sieves (nibbler) - control panel and e-panel (as is) Tumbler mixersNew arrivalsCMA QuimpeMixers > Tumbler mixersNew arrivalsBrand > CMA Quimpe What you can expect from Foeth: -- Machine is in working condition -- At a reduced price compared to new -- Ready for shipping to any destination worldwide -- You are welcome to ...

Offered is a CNC horizontal milling machine. Working area X/Y/Z: 1000mm/800mm/850mm, pallet size: 630x630mm, table load: 1300kg, B-axis indexing: 0.001°, spindle speed: 6000rpm, spindle power: 30kW, spindle torque: 600Nm, tool holder: SK50, magazine positions: 120, spindle internal cooling pressure: 70bar, pump capacity LD: 150l/min at 3bar, pump capacity MD: 40l/min at 7bar, pump capacity HD: 32l/min at 70bar, cooling capacity cooling unit: 11.8kW, control: FANUC 31iMA. Equipped with additional pallets with threaded grid (24xM16 in 125mm grid), direct absolute scales, spindle internal cooling system, automatic scraper belt chip conveyor with 1000l dirty water fine filtration, recirculating chiller, washing shower, mist extraction system, touch probe. Weight: approx. 18500kg, overall dimensions X/Y/Z: approx. 6800mm/4200mm/3400mm. Inspection possible by arrangement.

Offered is a CNC horizontal machining center. Working area X/Y/Z: 750mm/750mm/850mm, pallet size: 550mm/550mm (2-position changer), spindle speed: 15000rpm, tool holder: SK50, tool magazine: 60 positions (chain type), B-axis: 0.001°, max. loading weight: 800kg, rapid traverse: 60m/min, power-on hours: 64148h, feed time: 21867h, control: Fanuc 31i. Equipped with 2-position pallet changer, coolant filtration system (central system designed for up to 3 machines), cooling unit, oil mist extraction system, tool package (15x drill chucks, 8x collet chucks, 13x face clamping holders), linear measuring system X/Y/Z, weight: approx. 12500kg, overall dimensions X/Y/Z: approx. 5500mm/3500mm/3200mm. Inspection possible by arrangement.

turning diameter:120 mm turning length:100 mm control:Fanuc Spindle 1 power:7,5 kW Spindle 1 RPM:4500 1/min Spindle 2 power:7,5 kW Spindle 2 RPM:4500 1/min Distance between spindle noses:600 mm Turret No.1 stations / rotary tools:15/15 Power rotary tools turret 1:2,7 kW RPM of rotary tools turret 1:4000 1/min Turret No.2 stations / rotary tools:15/15 Power rotary tools turret 2:2,7 kW RPM of rotary tools turret 2:4000 1/min Travel x/z turret 1:250 / 300 mm Travel x/z turret 2:250 / 920 mm Bar capacity spindle 1:51 mm Bar capacity spindle 2:51 mm power chuck:165 mm Spindle bore sp. 1:62 mm Spindle bore sp. 2:62 mm dimensions of the machine ca.:3700 x 2300 x 3000 mm weight of the machine ca.:5600 kg Used CNC-2-spindle CNC turning and milling center with gantry loader - 2x 15 station turret -automatic gantry loader with turnaround station. 14 station-magazin right side Max. Parts size Ø 12 ...

turning diameter:356 mm turning length:705 mm control: CELOS M730 UM MAPPS swing dia.:742 mm standard turning diameter:275 mm travel -x axis:260 mm travel -y axis:100 ( ±50) mm travel -z axis:795 mm rapid travel - longitudinal/face:30 / 30 m/min Rapid travel B-axis (parts transfer subspindle):734 m/min Spindle 1 RPM:4000 1/min Spindle 1 Power:15/18,5/18,5 kW Spindle 1 Torque:409/505 /599 Nm Spindle 1 max. bar diameter:80 mm Spindle 2 RPM:4500 1/min Spindle 2 power:7,5/11 kW turret stations / rotary tool stations:20 / 20 BMT40 speed of driven tools:10000 1/min :3.7/5,5/5,5 kW torque rotary tools:14 / 24 Nm total power requirement:38 kVA weight of the machine ca.:6,3 t dimensions of the machine ca.:4 (9) x 2,1 x 2,2 m Parts catcher:Sp. 1 und Sp. 2 Spindle 1 Chuck:Kitagawa B 210 (250 mm) Spindle 2 Chuck:Kitagawa B 206 (160 mm) Tool presetter:Spindle 1 & 2 High precision Turning and Millin ...

turning diameter:370 mm turning length:200 mm Spindle 1 RPM:4000 1/min control:Siemens 840 D Spindle 2 RPM:4000 1/min power capacity:L / R 18/24 kW max. torque on the spindle:630 nM C-Axis:0,001° Turret No.1 stations / rotary tools:12/12 VDI 40 Turret No.2 stations / rotary tools:12/12 VDI 40 turning speed range - milling:3000 1/min power capacity - milling spindle:8,8 kW torque rotary tools:28 Nm Bar capacity spindle 1:85 mm total power requirement:65 kVA weight of the machine ca.:13 t dimensions of the machine ca.:5,7x2,4x2,1 m Travel x1:260 mm Travel x2:260 mm Travel Y1:600 mm Travel y2:600 mm Power Chuck:2 x 250 mm manual tool eye:l & r High performance 6-axis subspindle CNC-Lathe with twin turren and rotating tools.

standard turning dia.:200 turning length:max. 810 mm control:MSX-701 MAPPS IV greates pass round over bed:800 mm Max. distance between centres:1130 mm max. turning diameter:320 mm max. workpiecediameter:300 mm bar material dia.:65 mm Traverse X-Axis 1:210 Traverse X-Axis 2:210 mm Traverse X-Axis 3:210 mm Traverse Y-Axis 1:110 (+65/-45) mm Traverse Y-Axis 2:110 (+45,/-65) mm Traverse Z-Axis 1:300 mm Traverse Z-Axis 3:300 mm Traverse Z-Axis 2:810 mm Traverse B-Axis:870 mm turning speed range - spindle:5.000 1/min Number of spindle speed ranges:2 . spindle nose:JIS A2-6 spindle bore:73 mm spindle bearing diameter:120 mm C-Axis:0,001 ° turning speed range - spindle:5.000 1/min spindle nose:JIS A2-6 spindle bore:73 mm bar material dia. max:65/52 mm spindle bearing diameter:120 mm C-Axis:0,001 ° Number of Turrets:3 . Number of tool stations:16 x 3=48 pos Schank height for square tool:20 mm D ...

turning diameter:670 mm turning length:1540 mm control:F31iB5 Celos Fanuc 35iB5 swing diameter max. over bed cover:700 mm Travel turret No.1 (milling spindle) x/y/z:495 / ± 150 / 1562(+164) mm Rotation B-axis:-30° / +210° Rapid traverse feeds turret 1 (milling head) x/y/z:40/40/40 m/min RPM milling spindle:12000 1/min power capacity - milling spindle:20,2/18,8 kW Torque of milling spindle:120 / 44 Nm tool taper milling spindle:Coromant Capto C6 Tool magazine for milling spindle (turret 1):76 Tool change time tool/tool, milling spindle:1,25 s Spindle 1 RPM:3000 1/min Spindle 1 Power:36 / 30 / 25 kW C-axis spindle 1:0,001 ° Bar capacity spindle 1:102 mm Spindle 2 RPM:4000 1/min Spindle 2 power:26 / 22 / 15 kW C-axis spindle 2:0,001 ° Bar capacity spindle 2:80 mm dimensions of the machine ca.:7,8 x 3,6 x 2,9 m Linear scales on axis:X, Y programmable steady:KLU-A530 & SLU-X3.2 Spindle 1 ...

turning diameter:500 mm turning length:1000 mm control:Siemens 840 D spindle:42 / 28 kW spindle turning speed - stepless:31 - 4000 1/min max. torque on the spindle:345 Nm c-axis:360000 x 0,001° feeds -stepless-:0 - 10000 mm/min rapid traverse:10000 mm/min turret stations / rotary tool stations:12/12 VDI 40 RPM of rotary tools:2000 1/min diameter of quill:90 mm quill stroke:80 mm tailstock quill taper ISO:SK 30 Tailstock Travel:600 mm Power rotary tools:3,5 kW :22,5 Nm Rotary tool holders:4 ax./ 4 rad. spindle passage:66 mm total power requirement:30 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:8x 3 x 4 m

turning diameter:356 mm turning length:705 mm control:MSX 850 MAPPS II swing dia.:755 mm standard turning diameter:275 mm travel -x axis:260 mm travel -y axis:100 (+-50) mm travel -z axis:795 mm rapid travel - longitudinal/face:30 / 30 m/min rapid traverse Y-axis:10 m/min Rapid travel B-axis (parts transfer subspindle):30 m/min Spindle 1 RPM:4000 1/min Spindle 1 Power:18,5/18,5/15 kW Spindle 1 max. bar diameter:80 mm Spindle 2 RPM:6000 1/min Spindle 2 power:11 / 7,5 kW turret stations / rotary tool stations:16 / 16 VDI 30 :5.5/5,5/3,7 kW speed of driven tools:6000 1/min total power requirement:39,2 kVA weight of the machine ca.:6,2 t dimensions of the machine ca.:3,1 x 2,0 x 2,2 m Spindle 1 Chuck:Kitagawa B 210 (250 mm) Spindle 2 Chuck:Kitagawa B 206 (160 mm) High precision Turning and Milling Centre with Y-axis and sub spindle. Easy programming by MAPPS II Control.

x-travel:800 mm y-travel:410 mm z-travel:510 mm control:Fanuc 10 MA rapid travel x/y/z:20/20/15 mm/min table surface area:1100 x 450 mm tool taper:BT 40 tool magazin::30 BT 40 max. tool length:250 mm max. tool weight:8 kg power requirement:7,5/5,5 kW turning speed range:6000 1/min weight of the machine ca.:6,3 t Under offer is a complete CNC tool shop, which will be given up due to old age of owner. The Mori Seiki is still highly accurate. All existing tool holders, tools, drills, vices etc. come with the machine. All measuring devices also come with the machine. Upon request orders for parts to be made can be passed on to new owner. This is a low cost all inclusive opportunity for a "Startup"

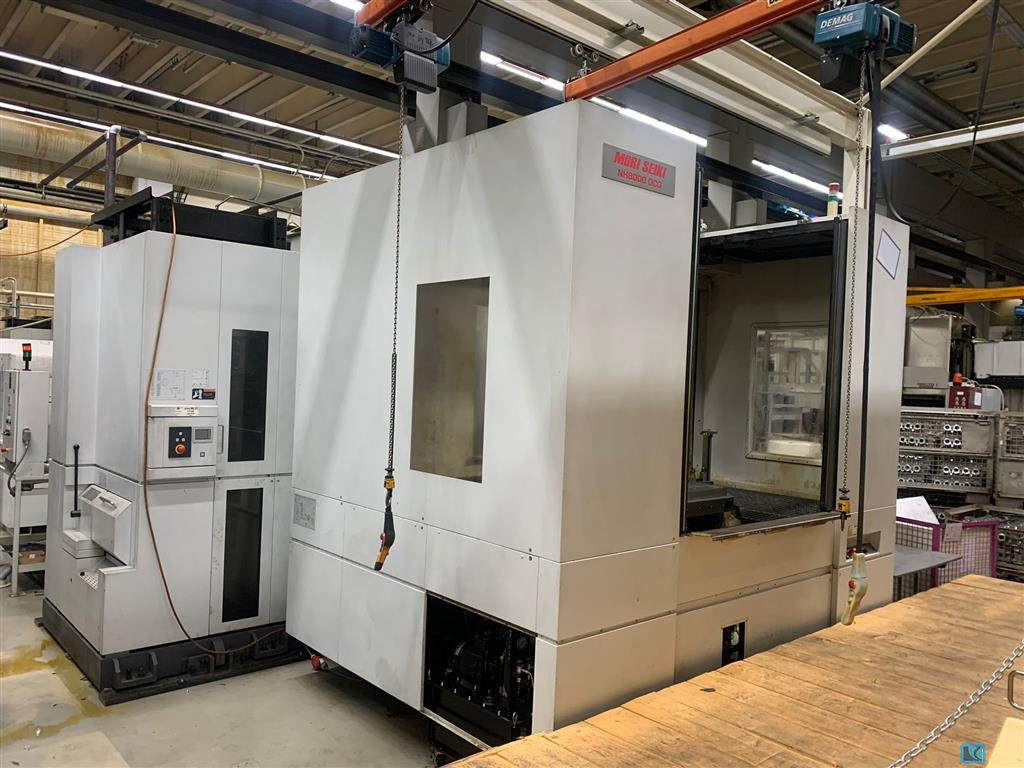

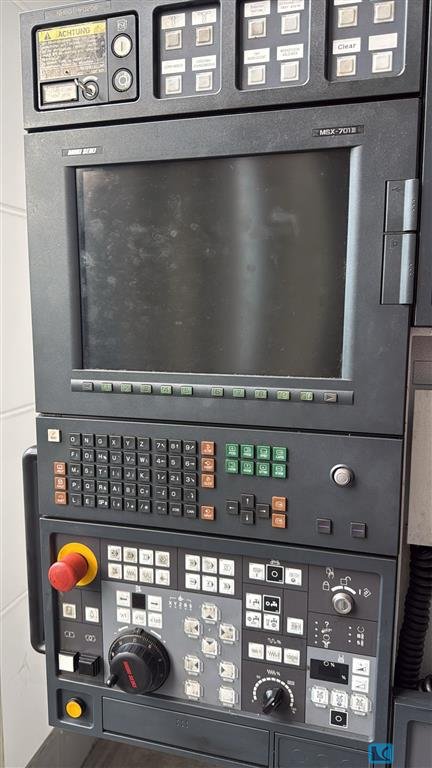

x-travel:1400 mm y-travel:1200 mm z-travel:1350 mm control:MSX- 701 Mapps III table surface area:800 x 800 mm rapid traverse:50 m/min table rotating:360.000 x 0,001 B-Achse ° table load:2,0 t numbers of pallets:2 turning speed range:8000 1/min power capacity - milling spindle:37 kW no. of tools in the magazine:60 Stück tool taper:HSK-A 100 weight:31 t dimensions:5,9 x 3,48 x 3,68 m Equipment: - Thru-the-spindel coolant system Mayfran Consep 2000 70 bar with chipconveyor - Helical cutting + Synchronized tapping - Parts program memory 1 MB - Knoll 70 bar high pressure and filter system - Electrostatic oil dust collector LTA - elect. hand wheel - renishaw probe - abso- scale i X/Y/Z- axis - 5 free m- funktions - 48 extra off sets - dual ballscrews on X/Y/Z- axis

x-travel:560 mm y-travel:560 mm z-travel:660 mm control:Celos Siemens 840D SL Operate ERGOline Multitouch turning speeds:20 - 20.000 1/min spindle drive:25/ 35 kW max. torque on the spindle:86 / 130 tool taper:HSK-A63 Number of tool station:60 diameter of tools max.:70 mm Tool diameter with no neighbouring tools:170 mm tool length - max.:450 mm weight of tools max.:12 kg numbers of pallets:2 Pallet dimension:400 x 400 mm max. workpiece diameter:630 mm workpiece height max.:900 mm table load:400 kg rapid travel x/y/z:60 m/min Feed x/y/z:60 m/min internal coolant system feed:70 bar weight of the machine ca.:8,5 t dimensions:3200 x 4800 x 2900 mm Renishaw probe (spindle):Vorbereitung / preparation only Horizontal machining center with Siemens - Celos control, full b-axis, tool magazine with 123 pos. HSK-A 63, coolant through spindle 40 bar. The machine has just received a new milling spind ...

x-travel:630 mm y-travel:600 mm z-travel:650 mm control:MSC 502 (Fanuc 16) Spindle RPM:12000 1/min spindle drive:22 / 18,5 kW rapid travel x/y/z:32 m/min Pallet dimension:500x500 mm numbers of pallets:2 table load:0,5 t working diameter:max. 610 mm Number of tool station:60 BT40 max. tool length:360 mm max. tool weight:12 kg tool changing time:1,3 sec B-axis positioning (non continuous):1 total power requirement:50 kVA weight of the machine ca.:14 t dimensions of the machine ca.:3,3 x 5,8 x 3,2 m spindle load monitor:Typ C This horizontal machining center comes with a pallet changer with 2 pallets, and has the following options: ATC 60 tool stations, High pressure coolant trough spindle interface,

x-travel:650 mm y-travel:450 mm z-travel:420 mm control:MAKINO Hyper i U-axis:± 75 mm V-axis:± 75 mm max. size of workpiece LxWxH:1000 x 800 x 400 mm workpiece weight:max. 1500 kg Table dimensions:910 x 710 mm weight of the machine ca.:5 t Dimensions (L/W/H):3 x 3 x 2,3 mm Memory:10 GB Wire EDM in good condition.

x-travel:1000 mm y-travel:1150 mm z-travel:700 mm table-size:900 mm table load:1500 kg spindle speeds:10.000 1/min spindle drive:Motorspindel von Cytec CS34-180-A 34&42KW/160&200 Nm spindle taper:A100 HSK T-slots:18mm/7/100 mm milling feed range:20.000 mm/min rapid traverse feeds:X/Y/Z: 24 m/min diameter of tools max.:150 mm workpiece length:300 mm weight of tools max.:20 kg weight of the machine ca.:15 t dimensions of the machine ca.:s. Katalog m CNC controller:Heidenhain iTNC-640 HSCI-Steuerung cnc rotary table:von Cytec; mit Ø900mm; 800 1/min Drehmomenttisch (AS3347) + HSK-T63/100 Spindel & ATC + TNC-640 Fräsdrehzahlregelung B-axis:Fräskopf, 0-180° c-axis:0,001° automatic tool changer:HSK-A/T100; 60 fach Scales:in X/Y/Z von Heidenhain mit Druckluft inner coolant:20

sheet width:2000 mm plate thickness:1.8 mm Controls:SIEMENS S7 PRESS DESIGN:. - frame design : H-frame :. - openings in uprights : yes :. - opening in table : yes :. - moving bolster : yes :. PRESS TABLE:. - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - height above floor level:375 mm RAM:. - ram force:800 to - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - stroke:350 mm - number of strokes max:55 /min RAM (MECHAN. PRESS):. - ram adjustment:350 mm TOOL ASSEMBLY DIMENSIONS:. - shut height (stroke down, adjustment up):1100 mm - distance between columns (H-frame):3100 mm - Free passage between side columns (width):2560 mm - Free passage between side columns (height):1500 mm DECOILER:. - design : single coil :. - sheet width max:2000 mm - sheet width (min):400 mm - max. weight of coil:30 to - max. diamet ...

pressure:800 t distance between columns:2900 mm stroke:350 mm Controls:SIEMENS PRESS DESIGN:. - frame design : H-frame :. - Drive type : mechnical :. - openings in uprights : yes :. - number of cushions:0 - opening in table : yes :. - moving bolster : yes :. PRESS FORCES:. - total force (nominal):800 to PRESS TABLE:. - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - rectangular breakthrough (width):2000 mm - rectangular breakthrough (front-back):1800 mm - height above floor level:850 mm RAM:. - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - stroke:350 mm - number of strokes max:55 /min RAM (MECHAN. PRESS):. - ram adjustment:350 mm TOOL ASSEMBLY DIMENSIONS:. - shut height (stroke down, adjustment up):1100 mm - distance between columns (H-frame):2900 mm - Free passage between side columns (width):2560 mm ...

band width:2000 mm plate thickness:1.8 mm number of rolls:13 Controls:SIEMENS DECOILER:. - design : single coil :. - sheet width max:2000 mm - sheet width (min):400 mm - max. weight of coil:30 to - max. diameter of coil:2000 mm - min. internal diameter of coil:610 mm FEEDERS:. - sheet width max:2000 mm - sheet thickness max:2 mm - feeding step max.:4000 mm LEVELER UNIT:. - sheet width max:2000 mm - sheet width (min):400 mm - sheet thickness max:1.8 mm - sheet thickness (min):0.6 mm - number of leveler rolls:13 - diameter of leveler rolls:50 mm

x-travel:630 mm y-travel:560 mm z-travel:560 mm weight of the machine ca.:6,5 t Number of axles:5 St. spindle turning speed range:18.000 U/min numbers of tools in magazin:24 tool taper:SK 40 Round Table B-Axis

table length:920 mm table width:600 mm ampere:13,2 A weight of the machine ca.:6 t dimensions of the machine ca.:2,46 x 2,24 x 2,33 m X-axis:600 mm y-axis:400 mm Z-axis:260 mm max. table load:1500 kg The dimensions for transport are: wide 2240 mm x high 2330 mm x deep 2460 mm weight approx. 6000 kg.

x-travel:800 mm y-travel:400 mm z-travel:350 mm total power requirement:44 kW weight of the machine ca.:8,8 t dimensions of the machine ca.:6,1 x 4,1 x 3,3 m tool taper:HSK63 number of spindle speeds:36-12.000 Number of tools:2 x 21 St. rotary table diameter:1340 mm Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2026, Josef Weber. All rights reserved.

number of spindles:6 spindle passage:22 mm ?Bar feeder complete is 4.70 meters - for 3 meters of material ?The machine is still on ?Materail to be processed on the machine: Steel ?Production with OIL Machine has only Single-NCU without PCU. The complete energy supply of all 6 main spindles was replaced in April 25. No socket for powered tools!

x-travel:1000 mm y-travel:800 mm z-travel:1100 mm weight of the machine ca.:20 t dimensions of the machine ca.:6,80 x 3,0 x 3,20 m Tool bore:SK50 Tool taper:HSK-A 100 turning speed range:45-6.000 U/min size of pallet:630x800 mm change time of pallets:21 sec Mechanical processing of cylinder heads and cylinder crankcases Machines have been in single-shift operation since 2013 Service and maintenance intervals were adhered to

x-travel:1000 mm y-travel:800 mm z-travel:1100 mm weight of the machine ca.:15,2 t Tool bore:SK50 Tool taper:HSK-A 100 turning speed range:45-6.000 U/min size of pallet:630x800 mm change time of pallets:21 sec Mechanical processing of cylinder heads and cylinder crankcases Machines have been in single-shift operation since 2013 Service and maintenance intervals were adhered to

x-travel:780 mm y-travel:560 mm z-travel:560 mm weight of the machine ca.:10 t Number of axles:5 St. spindle turning speed range:20-12.000 U/min numbers of tools in magazin:30 tool taper:SK 40 surface area:500 x 630 mm Round Table B-Axis Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2026, Josef Weber. All rights reserved.

max. wheel diameter:130 mm max. module:3 total power requirement:15 kW weight of the machine ca.:6 t dimensions of the machine ca.:2,3 x 2,5 x 2,17 m A well-preserved CNC hobbing machine Vertical for shafts and wheels With tailstock Also suitable for hard milling (good for steering pinion) Rapid traverse radial, axial: 10.000 mm/min Rapid traverse tangential: 7.500 mm/min Max. wheel diameter 130 mm Max. module 3 mm Tangential slide travel 200 mm Radial slide travel 10 / 100 mm Axial slide travel 300 / 200 mm Milling head speed 250-3500 U/min Milling head -swivable +/- 40 ° Tool diameter 80 mm Tool length - max. 240 mm Table turning speeds 5 - 1000 U/min Milling spindle drive 15 kW Feed range 0,1 - 2000 mm/min Table diameter 132 mm Control Sinumerik 840 C Connected load 40 kVA Motor output 15 kW Weight : 6 T Dimensions 2300 mm 2500 mm 2170mm Accessories : Hydraulical workpiece clamping ...

x-travel:450 mm y-travel:450 mm z-travel:450 mm weight of the machine ca.:14 t size of pallet:320 x 320 mm number of spindles:2 Double spindle 4-axis machining center Horizontal 4 machine plates Renishaw probe Control Siemens Sinumerik 840D Working space (X / Y / Z): 450x450x450 mm Load pallet / table max .: 300 kg Acceleration: 10 m / s² Rapid traverse: 60 m / min Pallet size: 320 x 320 mm Chip-to-chip time: 2.6 s Workpiece height max .: 700 mm Tool holder: HSK 63 Tool places: 2x 60 Tool spindle: 10,000 rpm, 95 Nm Speed increase to 18,000 rpm Infrared receiver for probe, Make Renishaw Vaf72a0p Tool magazine with 60 places Control panel on the workstation Control panel on the tool installation site Workpiece positioning stations can be rotated manually with hydraulic workpiece clamping 60 bar Pneumatic support control on the workstation Automatic swing gate Extended coolant layer 70 ba ...

turning diameter:33 mm turning length:330 mm control: 840 total power requirement:20 kW weight of the machine ca.:6 t dimensions of the machine ca.:3850,2000,2100 m 17 axes 3 revolvers with the powered tools 1 gantry with the driven tools Main and counter spindle with C axes Barfeeder Machine On-time 58,133 hours

stations:24 weight of the machine ca.:3,5 t ·Precise serial production of part families and demanding workpieces ·Table index repeatability of ± 2.5 µm ·24 stations with up to 44 machining units for very high output rates ·Ideal for high volume production with fast cycle times

x-travel:1660 mm y-travel:760 mm z-travel:660 mm weight of the machine ca.:8700 t dimensions of the machine ca.:4.320 x 3.380 mm distance spindlenose - table min./max.:808 mm distance work spindle /surface of the table:155 - 815 mm Machine height:2850 mm floor space required (w/o switchgear cabinet):4.320 x 3.380 mm spindle motor:11 (10 Minuten) /7,5 (30 Minuten)/ 5,5 (Dauerbetrieb) kW tool taper:SK 40 Spindle RPM:40 - 7.000 (Standard ) / 40 - 10.000 ( Option ) 1/min surface area:2.000 x 760 mm max. table load:1.000 kg feeds X-axis:1 - 5.000 mm/min rapid traverse X-axis:24.000 m/min rapid traverse Y-axis:24.000 feeds Y-axis:1 - 5.000 mm/min feeds Z-axis:1 - 5.000 mm/min rapid traverse Z-axis:20.000 m/min

x-travel:635 mm y-travel:510 mm z-travel:460 mm turning speed range:20 - 10.000 U/min tool taper:SK 40 table clamping surface LxW:790 x 560 mm Machine with glass scales Full safety cabin with sliding doors + interior lighting Height-adjustable machine shoes 3 pcs.

x-travel:1.100 mm y-travel:900 mm z-travel:1.250 mm tool length:750 mm rapid traverse in x-y-z axis:60 feeding capacity X Axis:17.000 daN feed capacity Z - max.:17.000 N spindle taper:SK50 max. workpiece weight:1500 kg revolutions per minute:10.000 U/min pallet table size:630 x 630 mm tool magazin::165x (bis D=125mm), 21x (bis D=225mm), 8x (bis D=350mm total power requirement:37 kW

travel -x axis:800/1825 mm travel -y axis:800/460 mm travel -z axis:600 mm Feeding X,Y,Z up to:0 - 40/40/40 mm/min. swival range +/-:+10 bis -90 x 360 Grad Rotary-table:800 x 630 mm number of T-slots:5 T-slot - distance:125 mm T-Slots:18 mm center hole:30H7X15 mm swival range +/-:90 Grad turning speed:20 m/min. Number of axles:3-7 St. Spindle RPM:12.000 1/min max. tool weight:10 kg max. tool length:330 mm diameter of tools max.:80 mm tool changing time:4 sec CNC control with 15.1" color flat-screen 19" machine control panel PCU 50 with Intel Pentium II Windows XP 10.0 GB hard drive

Hartner Multi-Step Drills Precision reimagined. Efficiency made tangible. Made in Germany. The multi-step drills are the intelligent further development of classic HSS and HSS-E twist drills. Thanks to their innovative step-drill geometry, the drills deliver significantly higher performance, greater precision, and noticeably improved drilling comfort in daily use. What makes the multi-step drill so special? Unlike conventional HSS drills that machine material in a single cutting action, the multi-step drill works in several defined cutting stages. The result is smooth, low-vibration operation with significantly lower force requirements. Additional advantages include optimal chip removal, perfectly round and precise holes, and almost burr-free hole exits. Even when used with hand drills and cordless drills, the special geometry enables controlled drilling without jamming or slipping in t ...
