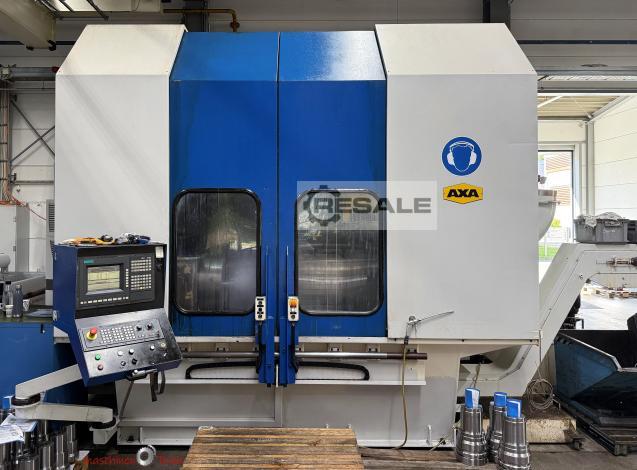

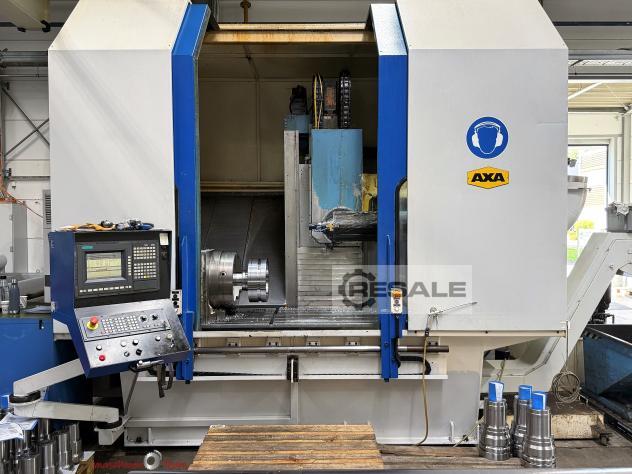

AXA VHC-3-M/K
5 Axis Universal Machining Center
Year of construction 1998

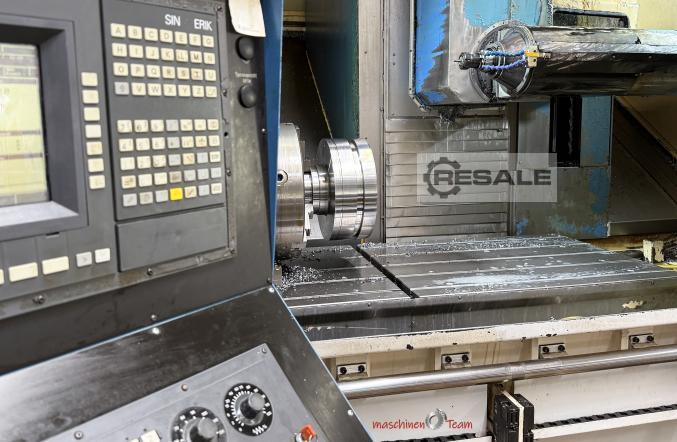

Control SIEMENS 840C
Machine number 85667
Travel:
Longitudinal X-axis 1,200 mm
Transverse Y-axis 700 mm
Vertical Z-axis 800 mm
B-axis -90° to +90°
C-axis 360,000°
Spindle repair worth € 15,000 carried out in 08/2025.
Equipment:

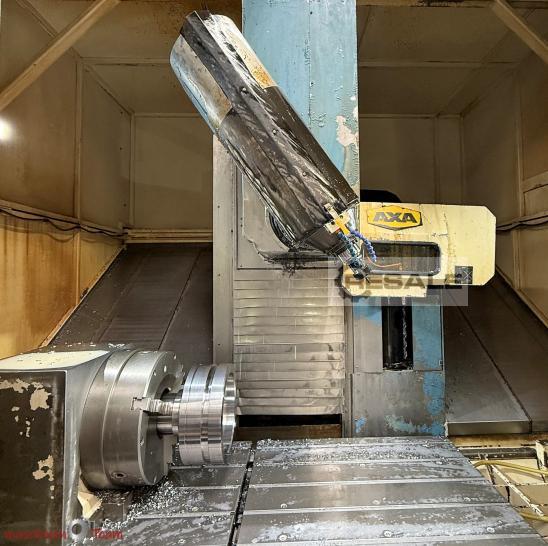

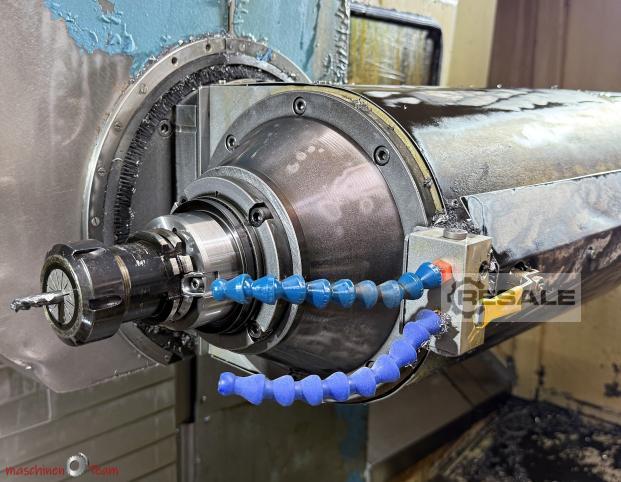

Swivel head -90 degrees to +90 degrees, pitch 2.5 degrees

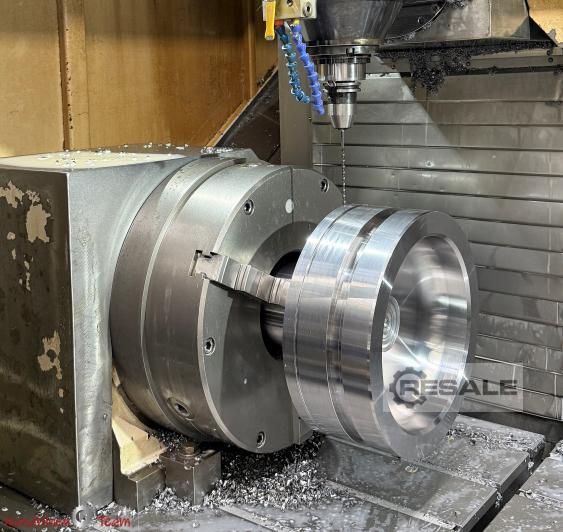

NC rotary table SEMPUCO 400 mm
Speed from 40 – 6,000 rpm / 17.2 kW
Tool changer 22-fold
Internal cooling by the spindle
Exterior cooling

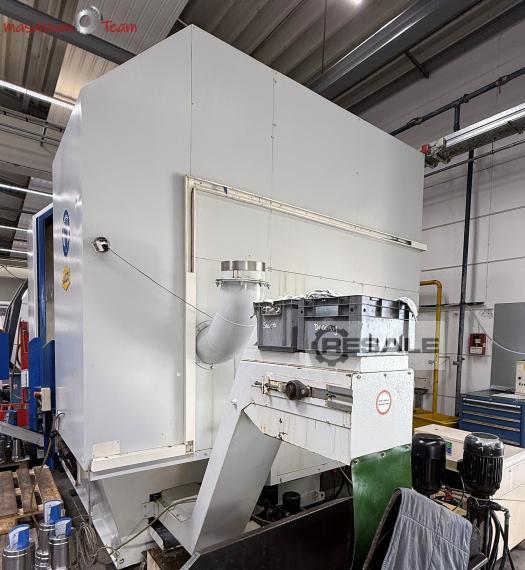

Paper Belt Filter
Conveyor
Included in delivery: Documentation / machine parameters on data
carrier
More photos and PDF with equipment, technical data and transport on
request. Image, content and information without guarantee, therefore
not binding.
All other accessories visible in the photos and video are m51253974
not included in the scope of delivery, so they are not part of this
sale. The scope of delivery only includes the accessories that are
expressly listed here, in the order confirmation and invoice.
FCA (Free Loading Truck) D-92729 Weiherhammer
Packaging only
Delivery time immediately
Subject to prior sale / payment immediately upon completion of
purchase
Germany
92729 Weiherhammer
