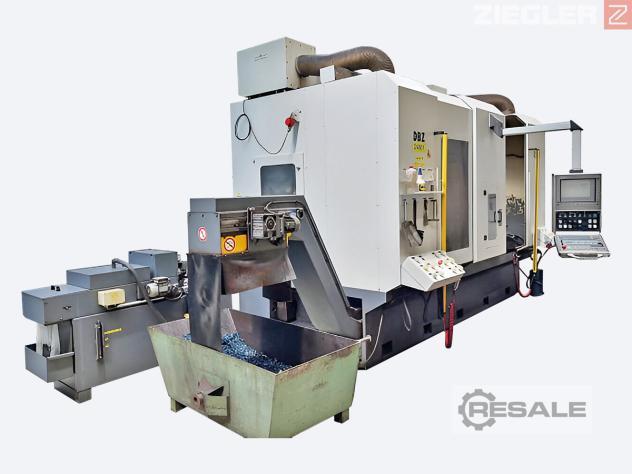

AXA DBZ 40 - Vertical double-station machining center

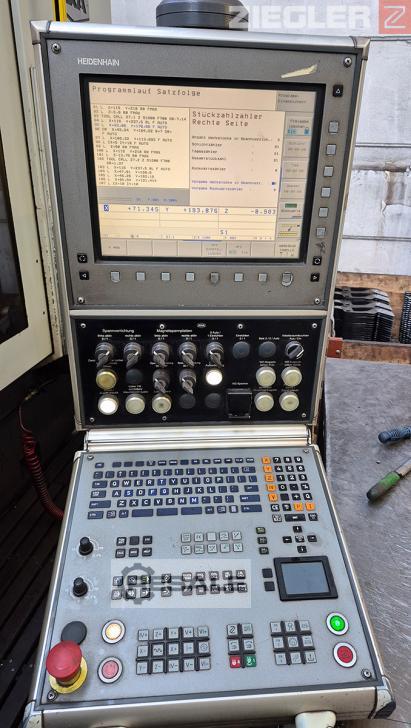

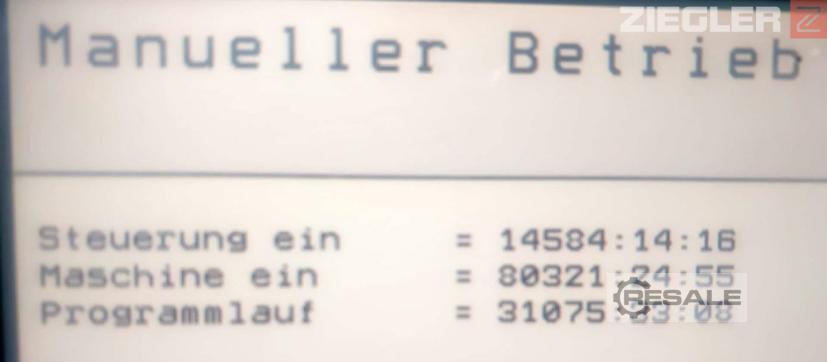

- Heidenhain iTNC 530 CNC control with digital drive control
- CNC with all controls in movable control panel
- Shuttle package
- Increased spindle speed 30 - 8,000 rpm
- 2 AXA RTA 2-300 face plates 300 mm, center height 200 mm
- Counter bearing size 50, hydraulically clamped, center height 200
mm
- Swivelling of the rotary table axis by hand
- Machine table extension left & right 1350 mm
- Heidenhain: Direct linear measuring system in all axes
- Hardened precision steel guides built on a hand-scraped or ground
surface - Counter guides coated with Turcite
- X/Y basic slide, Z-stand, slide and headstock made of high-quality
machine casting

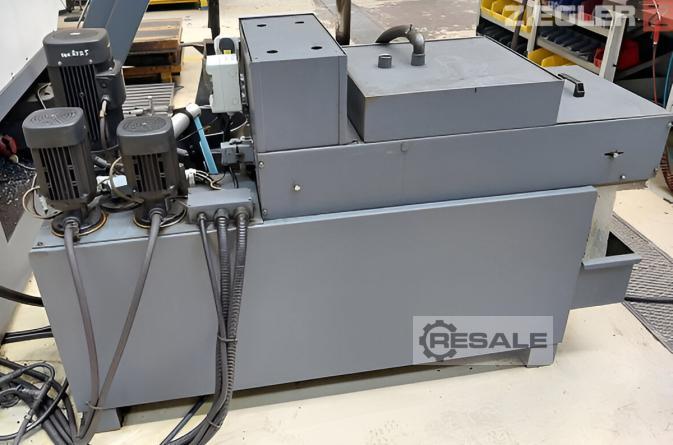

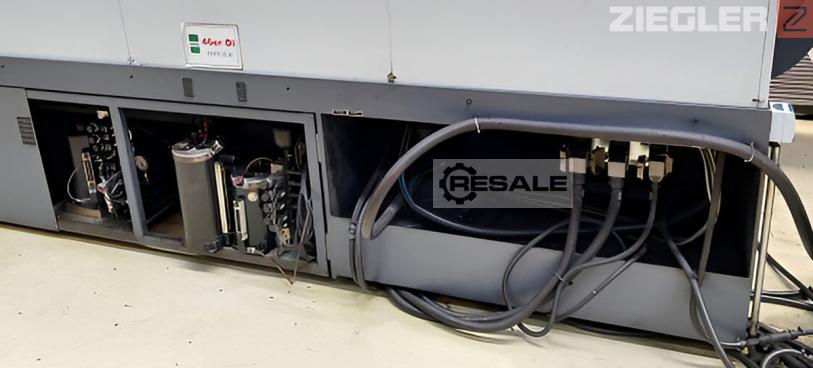

- Coolant system with integrated 100 l tank with pump for external
cooling
- Coolant through the spindle

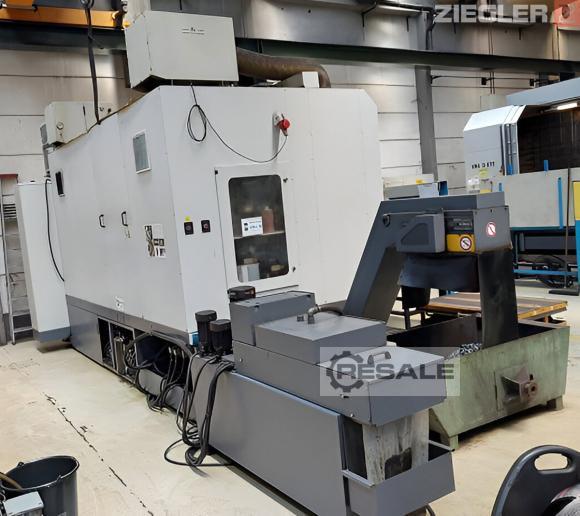

- Chip conveyor, mounted on the left
- 2 IFS oil and emulsion mist separators
- Spindle dust protection package (scraper)
- Oil level monitoring

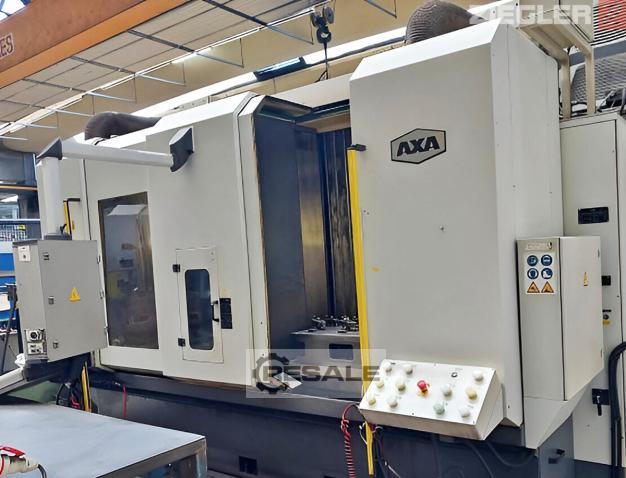

- Automatic sliding doors
- 2 hand rinsing guns
- Spindle renewed in 2022

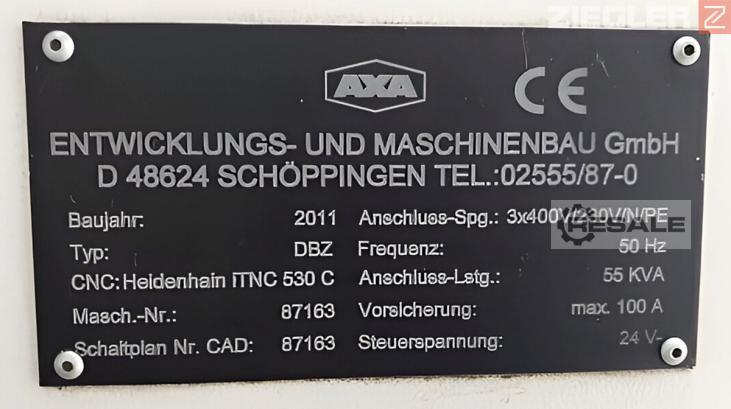

- Year of construction 2011
Specifications
- Longitudinal movement X: 2x 750 mm
- Transverse movement Y: 500 mm
- Vertical movement Z: 600 mm
- Distance table - spindle nose: 180 - 780 mm
Machine table:
- Table clamping surface left and right: 1350 x 500 mm each
- T-slots 3 pieces: 14 mm
- Load on the tables with even, flat load: 800 kg/m²
Accuracy according to AXA test protocol:
- Repeatability: ± 0.005 mm
- Positioning accuracy per 1000 mm per axis X/Y/Z: 0.015 mm
Feeds:
- Max. feed force: 9000 N
- Rapid traverse in X/X/Z: 25 / 25 / 20 m/min
- Feed rate in all axes: 1 - 9999 mm/min
Main Z51237148 Drive / Headstock:
- Main drive AC - hollow shaft motor 40 % ED: 30 kW
- Rotation rate range. Stepless: 30 - 8000 rpm
- Spindle torque 40 % ED: 143 Nm
- Tool tightening: via head bolts/disc springs
- Tool pull-in force: 12000 N
- Spindle diameter in the front bearing: 65 mm
- Tool holder/head bolt: SK40 DIN69871A/69872A
Tool Changer:
- Tray storage spaces: 22
- Tool change time: approx. 7 s
- Chip to chip time: approx. 9 s
- Max. tool weight / max. tool length: 8 kg / 400 mm
- Tool diameter / with free neighboring spaces: 85 / 135 mm
General data:
- Electrical connection: 3x 400/230V/N/PE
- Control voltage: DC 24 V
- Dimensions: LxHxD: approx. 4200 x 2700 x 2300 mm
- Weight: approx. 8500 kg
Austria
