High Precision Flat Grinding Machines AMADA Techster 106

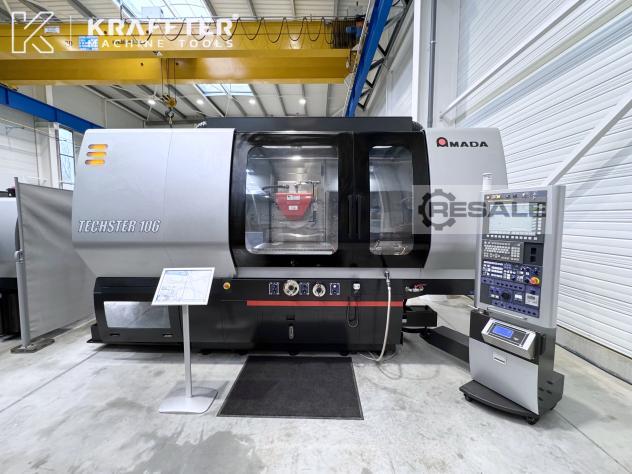

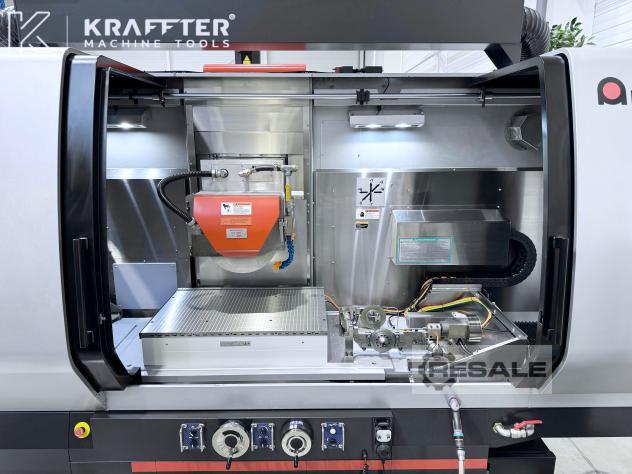

AMADA Techster 106 CNC surface grinding machine

TECHNICAL FEATURES:

Year: 2017

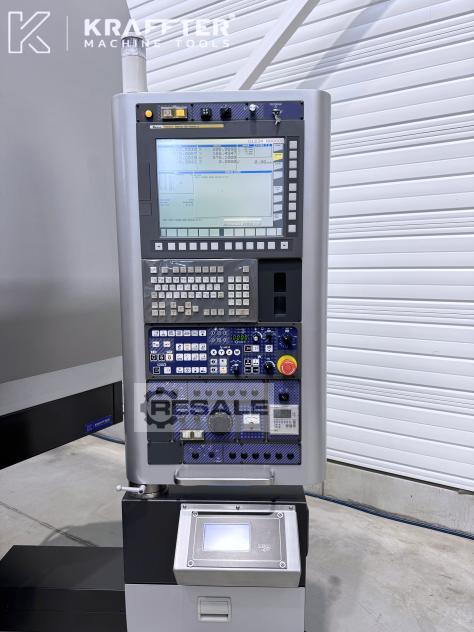

NC Type: FANUC series 32i-B
Color Touch Screen: 15 ["]
Maximum surface area. Grinding Length x Width: 1000 x 600 [mm]
W-axis stroke (longitudinal axis): 1300 [mm]
Minimum speed. W-axis travel: 0.1 [mm/min]
Maximum speed W-axis stroke: 40000 [mm/min]
W-axis fast feed speed: 40000 [mm/min]
X-axis stroke (transverse axis): 660 [mm]
Minimum speed. X-axis travel: 0.1 [mm/min]
Maximum speed X-axis travel: 5000 [mm/min]
X-axis fast feed speed: 5000 [mm/min]
X-axis resolution: 0.0001 [mm]
Y-axis travel (vertical axis): 750 [mm]
Minimum speed. Y-axis travel: 0.1 [mm/min]
Maximum speed Y-axis travel: 500 [mm/min]
Y-axis fast feed speed: 2000 [mm/min]
Y-axis resolution: 0.0001 [mm]
Maximum distance Spindle/table: 750 [mm]
Maximum weight Tabletop Allowable: 1500 [Kg]
Minimum speed. Grinding Spindle: 300 [RPM]
Maximum speed Grinding Spindle: 2000 [RPM]
Spindle power : 11 [kW]
Maximum diameter Grinding wheel: 405 [mm]
Maximum width Grinding wheel: 50 [mm]
Wheel bore: 127 [mm]
Working time: 2710 [h]
Installed power: 29 [kVA]
Weight: 11000 [Kg]

EQUIPMENT / OPTIONS INCLUDED:

Interpolation of the 2 axes

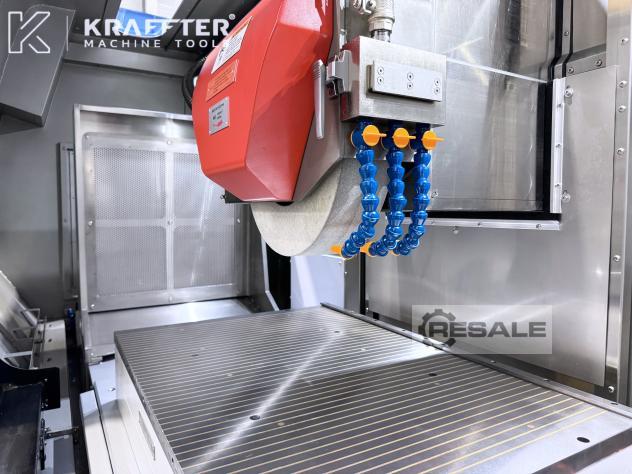

x1 electro-magnetic plate 900 x 600 [mm]
x1 MPM Type 3.ESB.150A.114.CF Automatic Wheel Balancing Device
x1 Automatic measuring probe with compensation function

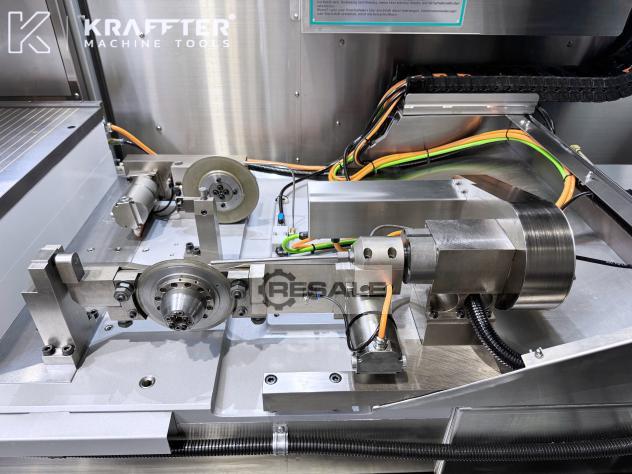

x1 Wheel Roll Forming Unit - NC Driven Wheel Tilt (TPA)
x1 fixed dressing unit (wheel)
x1 Straight Dressing Stand

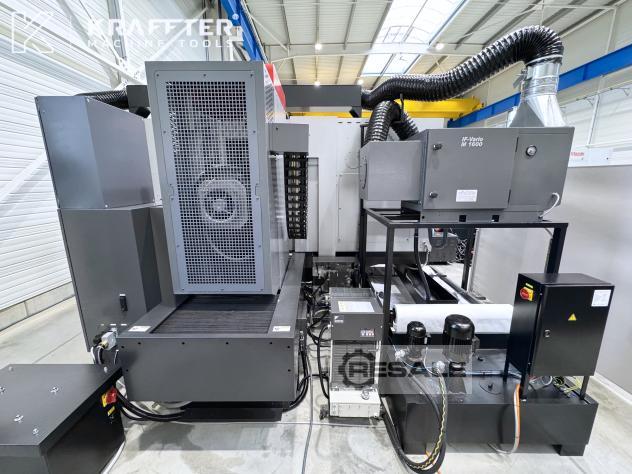

x1 Paper Filtration Unit
x1 DAIKIN AKZ149-C oil K51249644 cooler
x1 IFS oil K51249644 mist fan type M 1600
x3 Wheel Holder Flanges
x3 Grinding Wheels
x1 Axis Clamping Kit
x1 Toolbox (Service Keys)
x1 Balance Shaft
x1 Transformer

Machine visible under tension for testing at our premises, by appointment.

Price excl. VAT on request, including truck loading.

Possibility of shipping throughout France as well as internationally.

More photos and details on request.

Technical description for information purposes only, without obligation on our part.
