drilling used for sale

Radial Drilling GSP 49S22 Spindle: Ø 125 mm Cone CM6 Spindle exit: 600 mm Spindle speed: from 17 to 1050 RPM Arm travel: 1800 mm Maxi height column travel: 1800 mm Column diameter: 600 mm Total column height: 3000 mm Spindle motor: 11 kW Drilling/tapping function Mechanical locking of the column Hydraulic locking of the trolley Auto descent Delivered with one cube dimensions: L 800 x W 560 x H 600 mm Table size: L 3300 x W 1400 x H 320 mm Voltage: 380 V Total weight: 12 T

Drilling machine, column drilling machine, pillar drilling machine, pillar drilling machine, multi-spindle head, multi-spindle drilling head, drilling gear -with two-spindle drilling head Manufacturer Sigloch Schrieder Type: V602 -Drive power: 1.02/0.88 kW -Drill distance adjustable: 18-110 mm -Max. Drill: 2x Ø 6 mm -Table size: 275 mm -Spindle mount: MK3 -Projection: 220 mm -Speeds: 100-2900 rpm -Columns: Ø 100 mm -Spindle stroke: 75 mm -Transmission -Dimensions: 900/400/H1910 mm -Weight: 230kg

Magnetic drilling machine, magnetic drilling machine Core hole drilling machine, Metal core hole drilling machine DR. BENDER Type EK 323 Masch No. 180543 Year of construction approx. 1988 Drilling capacity 23 mm Spindle holder MK 2 Spindle speed 160 / 400 / 1250 rpm. Magnet 215 x 105 mm Drilling unit 220 Volt, 50 Hz, 1025 Watt E-magnet 220 Volt, 50 Hz, 65 Watt - Spindle speed via 3 gear stages - Left and clockwise rotation - E-magnet KOCH, type KL32/6 - Drill head height adjustment guided in a linear guide - manual expulsor - Drill stand rotatable on magnetic base, clamping via toggle screw Dimensions L x W x H 680 x 380 x 630 mm Weight 35 kg good condition; used

Boom drilling machine KNUTH type KAB16 Masch. No. 44715 Year of construction 1987 Drilling capacity in steel 16 mm Drilling capacity max. 23 mm Spindle holder MK 2 Pinol stroke 80 mm Projection 550 mm Spindle speed 290 - 2330 rpm 12 steps Clamping surface 650 x 310 mm Distance between drilling spindle Clamping surface max. 890 mm Column diameter 102 mm Motor power 0.55 kW Mains connection 400 volts, 50 Hz Spindle speed via 12 V-belt steps - Drill head height adjustment via hand crank - Drill head swivels +/- 90- Drill head rotatable on the column and on the boom arm Space requirement L x W x H 1030 x 400 x 1000 mm Weight 140 kg very good condition; used

Double-sided double-spindle drilling and grooving machine Balestrini Pragma Top Characteristic Overall dimensions, mm - 1600х1600х1300 Power, kW - 4,5 Machine weight, kg - 1500 Drill diameter, mm - 16 Table height, mm - 950 Distance from the table to the spindle, mm - 100 Clamp - pneumatic

Econiche data: Drilling rig 345-31 WHT-No. 147-0338 SNr. 103 563 Linear unit M4: Fanuc, type: Beta is 4/4000 HV A06B-0064-B203 Motor: plug version with resolver Resolver line and motor cable: PM505CBL2040B 10 319V 50Hz 2.3A 3.5Nm , 3000 rpm Drill tape M3: Astro, type: ASM 46 SG10 3-400V 50/60Hz 65/60mA 4/4,8min-1 Spindle drive M1: Bonfiglioli, type: BN 132 S 6 No. 802002 Cod: 8D62030016-519951 230V / 460V 13.5A / 7.8A 50H7 940 min' 3kW cosQ 0.76 IP 55 IsKI.F Lifting drive M2: Fanuc, Type: Beta 22/2000 HV is A06B-0086-B503 Motor: in plug version with resolver and brake Resolver line and motor cable with brake: PM505CBL2020B 5 448V 50Hz 3.4A 22Nm, 2000 rpm Insert tape M10 : SEW / Maschienenbau Kitz, Type: WF 10DT56LA/TF Product number: 01.1230640901.0001.08 230V / 400V 50Hz 0.80/0.46A 0.12kW 1600 rpm cos 0.68 Delivery belt M11: SEW / Maschienenbau Kitz, Type ...

Brand: Bavelloni Type: Drilling machine Model: Trapano VT Construction year: 1992

Bore diameter: variabel mm Number of heads horizontal: 3 St. Number of heads vertical: 4 St. Götzinger Power Drill in special version with dübelleim and press-in station With the Götzinger PowerDrill, you can choose: - Drill the front and long sides - Doweling of doors, seatings, fighters - The drilling patterns are freely programmable - You can: Grip handle and corner bearing, with quick-change Multi-spindle drilling heads - You can: lock casings, pusher and PZ as well as 3D tapes and drill - The machine has a horizontal and a vertical milling unit - A simple control lets you create drilling and milling programs, Save and recall POWER DRILL - drilling and milling machine Universal drilling machine for drilling olives, corner bearings, dowel work On the front and the front, milling, lock boxes, tapes, etc. Base in stable design, covered with sheet metal Table top 1800 x 200 mm  ...

Bore diameter: variabel mm Number of heads horizontal: 3 St. Number of heads vertical: 4 St. Dimensions (L/W/H): 6100x1500x2300 mm Weight: 950 kg 1 NEW drilling and milling center Götzinger Power Drill 300 With the Götzinger PowerDrill you can, depending on the type and design: - Drill on the front and on the long side - Dowels of front doors, pegs, fighters - The drilling patterns are freely programmable - You can drill: handle slides and corner bearings, with quick-change multiple spindle - You can: Milling lock case, pusher and PZ as well as 3D belts and drill - The machine has a horizontal and a vertical milling unit - A simple control lets you create drilling and milling programs, save and call again Base frame in sturdy design, covered with sheet metal Table top 1800 x 200 mm Processing unit: X-axis - 500 mm working travel Y-axis - 0-120 mm Z-axis - 0-105 mm (above table) Hori ...

Dowel drilling machine, dowel drilling machine, drilling and dowel station, row of holes dowel drilling machine, knothole drilling machine, row drilling machine, drilling beam, multi-spindle drilling head, articulated multi-spindle head, row drilling machine, dowel drilling head, dowel drilling machine, drilling gear -Drive: 1.5 / 2.0 kW -Drill speed: 2200/4400 rpm -pneumatic workpiece clamping -15 drill bits from below, grid 32 mm -Bore head: swiveling -Foot switch -Bore depth: max. 185 mm -Height adjustment: max. Mm -Max. Clamping height: 110 mm -Dimensions: 950/1100 / H1350 mm -Weight: 616 kg

CNC drilling machine Make: Alberti Type: Vector SH New machine This CNC drilling machine machines workpieces from above with 29 spindles and has 4 controlled axes. Optionally, the Vector is available as Modulo-SH with a total of two machining heads (top with 30 spindles and bottom with 7 spindles). Machining head, working from above Manual or automatic loading and stacking with longitudinal workpiece transport Monolithic frame in welded strong steel Independent control of all axes with drilling cycle optimisation 4 independent axes X Workpiece transport along the X axis with vacuum suction cup for automatic alignment Y Machining head W Lateral pressure control Z Machining depth control Remark: Max. Workpiece dimensions: 3000x1200x50mm Min. workpiece dimensions: 300x130x12mm Geometry of workpieces: Length > Width / Length = Width / Length < 20% Width Machi ...

AUERBACH AX3 TLF deep hole drilling machine was manufactured by the renowned German company Erste Maschinen Fabrik (ERMAFA Sondermaschinen- und Anlagenbau GmbH) in 2011. Characterised by its high reliability and performance, the AUERBACH AX-3 TLF machine used in the drilling of deep holes with high precision and tolerances in various types of metal, provides excellent optimisation of all aspects of the process and a significant reduction in cycle times. The machining process is fully automatic in 6 axes (X, Z, W, Y, B, A), making it capable of obtaining holes with a maximum diameter of 32 mm and a depth of up to 1700 mm. The AUERBACH AX 3 TLF deep hole machining centre is equipped with, among others, a 1500 x 100 mm interpolated rotary table and a user-friendly HEIDENHAIN iTNC 530 CNC control for programming all parameters of the process. The total weight of the drilling and milling m ...

CNC controlled three-axis under-table cross-cut saw with additional drilling unit for wood and wood-like materials, but also suitable for sawing aluminium non-ferrous metals and plastics. Closed compact production island, low noise pollution and no chips in the machine environment. Our automatic sawing and drilling machine KA 550 CNC - SAW and DRILL is versatile einsetzbar_ – Only saws in automatic mode and for single cuts - Drilling only - Combines drilling and sawing in a single operation The possibilities to work with the drilling unit include drilling and countersinking, combined drilling + countersinking with a combination tool, drill milling of longitudinal holes – longitudinal holes transversely – rectangular cut-outs. The drill feed speed and the drilling pressure can be sensitively adjusted. Technical data Circular Saw and Drilling Machine KA 550 CNC - SAW an ...

AUERBACH AX3 TLF drilling and milling machine The machine is still in use. Used only for the internal needs of the company, so it was never heavily exploited / did not participate in mass production. Operating hours: 8000 Longitudinal travel (X axis) table: 1600 mm Cross travel (Z axis) column: 700 mm Transverse travel (W axis) drilling head: 1300 mm Vertical travel (Y axis) drilling head: 800-1200 mm Axes of rotation: - axis B rotary table: 360 degrees - axis A drilling head: -25 to +15 degrees Drilling range - deep drilling: Diameter range: 3 - 32 mm Drilling depths in one pass: 1300 mm Maximum possible drilling depth: 1700 mm Main Drive / Deep Drilling Module: Nominal drive power: 12/18.5 kW Rotation speed range: 60 - 8000 RPM Spindle torque: 115Nm feed drive: Feed speed: 1 - 15 (in Y axis 1-10) m/min rapid traverse speed in all axes: 15 (in  ...

The machine is completely overhauled and is then as good as new! The machine gets a completely new electric satisam with our control system. Technical specifications Drilling process: ELB Number of drilling spindles: 1 Min. Drilling diameter 4 mm Max. Drilling diameter 30 mm Max. Drilling depth 600 mm with drilling diameter 4mm / with larger drilling diameters max. Drilling depth 1000 mm Max. Rapid traverse speed X + Z axis 4000 mm / min Max. Rapid traverse speed y-axis 2000 mm Travels X-axis horizontal approx. 700 mm Y-axis vertical approx. 300 mm Z axis designed for max. Drilling depth 1000 mm

Frame dowel and slotted hole drilling machine from Hofmann HT 200 U with angle adjustment and speed control Special drilling machine for staircase construction, window construction and universal use by pneumatic height adjustment. Inclined doweling and stake drilling are easy to implement thanks to the rotatable drilling unit. Frequency-controlled motor with frequency converter, speed adjustment via potentiometer Motor power 1.5 kW Start of the engine with practical handle switch Precision chuck with two inserts 13 + 16mm Additional Röhm two-jaw chuck up to 20mm intake Preparation for drill heads Table size approx. 1100 x 240mm Linear laser for exact positioning of the workpiece Drilling unit can be rotated by 65 degrees to the left and right Pneumatic adjustment of the machining height, dowels on two levels without repositioning The desired drilling heights can be set fo ...

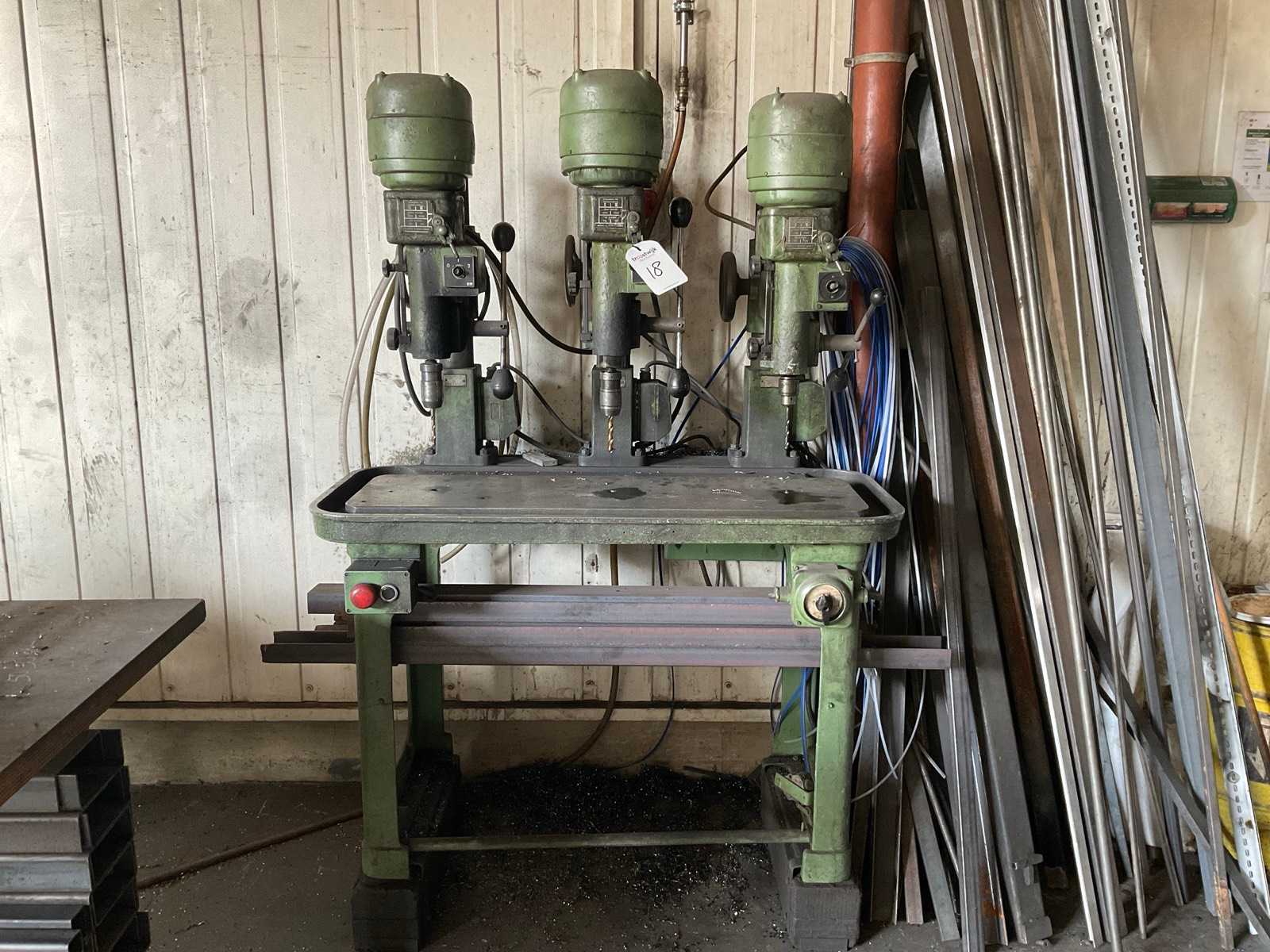

Stand drilling machine in row arrangement, used Gang drilling machine, used Type: BT 6.52 Manufacturer / make: Steinel Built/ new in: 1978 Drilling capacity / drilling capacity: 6 mm in St 60 Spindle cone/ spindle taper: MK 1 Drilling spindle discharge / distance center drill spindle to column: 204 mm Drilling stroke/ way of spindle: 90 mm Table clamping area/ table size: 800 x 390 mm Column diameter/ diam. of coulmn: 60 mm Drilling spindle speeds / speeds of drilling spindle: 1400 / 2800 / 5600 per min/ per minute Total connection value / rated power: 0.25 kW each => 1 kW Weight / weight: approx. 0.4 t

High-performance column drilling machine Offer number: 17469 Make: ALZMETALL Type: AB 4 SV Machine No: 18498 Built: 1987 Technical data: - Drilling capacity in steel ST 60 40 mm - Drilling capacity in steel ST 60 50 mm - Thread cutting device - Drilling spindle holder MK 4 - Drilling spindle stroke 180 mm - Drilling spindle speeds infinitely adjustable with pre-bedding - Level 1 - 80 - 210 rpm - Level 2 - 210 - 765 rpm - Extension 330 mm - 3 feeds 0.1 - 0.2 - 0.3 rpm - hydr. Feed cylinder for semi-autom. Workflow + Rapid Response - Table with 2 T-slots 720 x 360 mm - height-adjustable via rack with hand crank - max. distance table - drilling spindle approx. 780 mm - maximum distance machined base plate - drilling spindle 1250 mm - Lighting - Coolant device - Swivel arm control panel - Drive 400 V 4 kW - Space requiremen ...

Technical data: - Drilling capacity in steel ST 60 40 mm - Drilling capacity in steel ST 60 55 mm - Thread cutting device - Drilling spindle holder MK 4 - Drilling spindle stroke 180 mm - Extension 350 mm - Height-adjustable with 2 T-slots 720 x 560 mm - max. Distance table - drilling spindle 550 mm - max. Distance machined base plate - drilling spindle 1140 mm - Column diameter 200 mm - Feed-electromagnetic 0.15 0.2 - 0.3 - 0.36 mm/U with overload protection - Drilling spindle speeds infinitely adjustable 60 - 210 + 210 - 765 rpm - Drive 400 V / 2.3 / 3.4 kW - Lighting - Quick-release drilling chuck - Space requirement approx. W 750 x H 2050 x D 1050 mm - Weight approx. 850 kg

In-line drilling rigs with 8 pieces of drilling spindles for the processing of easily machinable materials such as wood - aluminium - non-ferrous metals, composite materials and various plastics. Each of the drilling units produces 450 watts. Infinitely adjustable drilling feed speed Infinitely adjustable drilling depth and return path of the drilling unit. Slanted holes in the range +/- 30°. Pneumatic workpiece tension Table size 3,000 x 800 mm (optionally larger) Working height approx. 870 mm. Horizontal adjustment of the drilling units 240 mm. Vertical adjustment of the drilling units 320 mm. Dimensions 3 x 1.25 x H 1.98 m Weight approx. 1,000 kg

In-line drilling rigs with 8 pieces of drilling spindles for the processing of easily machinable materials such as wood - aluminium - non-ferrous metals, composite materials and various plastics. Each of the drilling units produces 450 watts. Infinitely adjustable drilling feed speed Infinitely adjustable drilling depth and return path of the drilling unit. Slanted holes in the range +/- 30°. Pneumatic workpiece tension Table size 3,000 x 800 mm (optionally larger) Working height approx. 870 mm. Horizontal adjustment of the drilling units 240 mm. Vertical adjustment of the drilling units 320 mm. Dimensions 3 x 1.25 x H 1.98 m Weight approx. 1,000 kg

Description Universal CNC deep hole drilling machine from Degen suitable for tooling, fixture construction, training as well as mold making Travel 750x700x600mm Control SIMATIC OP17 Technical data Universal deep hole drilling machine DEGEN UTB 600 E X,Y manual Z, NC control Axes with digital display Drilling depth max. 900 mm max. drilling diameter 25 mm Spindle holder MK2 Spindle drive 2.6 kW Spindle speed max. 3000 rpm Table adjustment lengthways 750 mm Table adjustment Cross 700 mm Drilling unit vertical 300 mm Drilling swivel +/-20° Table area 650 x 1100 mm Table swivelling by 360° Table load max. 2000 kg 2 separate cooling systems - Spray mist (single-lip deep drills) - Drilling emulsion (spiral drilling) With accessory package and glass protection

Two-spindle drilling machine, row drilling machine, drilling machine, column drilling machine, pillar drilling machine, pillar drilling machine -Manufacturer: Webo Schlevo, line drilling machine / 5-fold column drilling machine -Clamping table: 2150 x 350 mm, height adjustable -Column boring machines: 4x Varia 23 type, 1x Varia 23 G type with thread cutting device -Spindle mount: MK2 -Motors: 1.1 to 1.6 kW with different speeds, see photo nameplates -Feed: different, see photo nameplates -Projection: 315 mm -Spindle stroke: 150 mm -Dimensions: 2360/1040/H2400 mm -Weight: about 3000 kg

Well drilling rig, drilling mount, UNIMOG drilling rig, UNIMOG drilling rig -Well drilling rig: on Mercedes Benz UNIMOG 4x4 with truck tandem trailer -Unimog: Mercedes Type 435 built in 1976, mileage: 97,243 km -Trailer: Schmid type MTT500 built in 1991 -Drilling rig: drilling power turret U 58 (company AGBO) torque 1700 Nm, speed 140 min -Linkage tensioning device: up to 165mm -22 boring bars: Ø 76mm length 4 m total length 88 meters -Theoretical drilling depth: 150 meters (depends on the soil and diameter of the drill hole) -1 flushing pump: Hatz 30C 30L, with Reno standard block pump type 65-250/263, 100m³/h, 8.9 bar -Price/tax: complete -Dimensions: Truck 6250/2300/H3350 mm / Trailer 6300/2400/H3050 mm -Total dimensions: 11300/2400/H3350 mm -Weight: kg

new CNC Drilling machine Brand: Alberti Type: Vector DH 6 controlled axes and two large drilling heads ensure high productivity on the Vector DH. This line can be fed manually or automatically. Two machining heads, working from above Manual or automatic loading and unloading with longitudinal workpiece transport Monolithic frame in welded strong steel Independent control of all axes with drilling and optional with fitting cycle optimization 6 independent axes X workpiece transport along the X-axis with vacuum suction cup for autom. alignment Y1 first machining head Z1 control of machining depth, first machining head Y2 second machining head Z2 Machining depth control, second machining head W lateral pressure control Remark: Max. Workpiece dimensions: 3000x1200x50mm Min. workpiece dimensions: 300x130x12mm Geometry of workpieces: Length > Width / Length = Width ...

Radial drilling machine, used radial drilling m/c, used Type: BR 56 x 1600 Manufacturer/ make: WMW Year built/ year of make: 1965 Extension/ length of arm: 300...1600 mm Ma. Drilling radius / max. drill. Radius: 1800 mm Drilling capacity at boring: 56 mm ( St 60 ) Drilling capacity at boring: 80 mm ( GGL 20 ) Thread cutting/ thread cutting: max. 65 mm ( St 36 ) 76 mm ( GGL 20 ) Drilling depth/ drilling depth: 400 mm Tool holder / taper in spindle: MK 5 Removal spindle head to base plate/ distance Spindle head to base: max. 1600 mm Base plate/ base: 1700 x 1000 mm Speed range/ range of speeds: 14..1800 rpm Feed: 0.0315 .. 1.6 mm/U// mm per round Connection value: 7.13kW Weight: about 4.5 t

Drilling capacity: 36 mm Drilling depth: 0 mm Spindle taper: 0   Number of drilling spindles: 0   MACH-id    3627 MAKE         IXION Auerbach TYPE           TL 1004 YEAR         2009 SPECIFICATIONS Drilling capacity    6 - 32 mm Drilling capacity steel Ø    6 - 32 mm Drilling capacity cast iron Ø    6 - 46 mm Spindle taper Mk    ISO 40 Power   7.5 kW Spindle speeds / ranges    4000 Rpm DIMENSIONS    Length    4000 mm Width      6600 mm Height      2300 mm Capacity X           &n bsp;    : 1000 Y                 ...

Bore diameter: variabel mm Number of heads horizontal: 3 St. Number of heads vertical: 4 St. Dimensions (length / width): 4800 x 1600 x 2400 mm weight: 1500 kg Götzinger Power Drill Type BF 297 With the Götzinger PowerDrill you can, depending on the type and design: Griffoliven drill on the loose frame part or for finished wings, with multi-spindle drilling head, quick-change, also for milling of the lock case for WK 2 or intermediate gear Ecklager drill on loose frame part, with Mehrspindelbohrkopf, quick-change, corner-oriented over stop or custom made (tilt window) Drill vertically from above for fitting, pre-drill for clip on loose frame part Milling vertically from above for pushers, profile cylinders, 3-D hinges Horizontal drilling with 2 drilling units, different drilling diameters, Dowel drill front and long side, plywood / fighter, sprouts, Corner connection, front door etc. M ...

Standard equipment - Thread cutting device - Control panel with OLED display - robust, high-quality drill head hood - LED lighting - quickly adjustable and ergonomic drilling depth stop - infinitely variable speed control via rotary knob - thermal overload protection - Spindle stop - Drilling protection with electr. Hedge - Connection cable with CEE plug - mechanical feed of the Z-axis - incl. electromagnetic coupling for 3 feed speeds - Drill cross with push button - in thread cutting mode: right-left SPECIFICATIONS Continuous/normal drilling performance (mm) R1 - 27/32 (in E335/ST60) (100) R2 - 25/30 (in E335/ST60) (70) R3 - 30/35 (in E335/ST60) (200) Thread cutting capacity max.: R1= M24x3, R2= M20x2.5, R3= M30x3.5 Spindle MK III Drilling depth: 125 mm Projection: 300 mm Column diameter: 125 mm Usable table surface (W x D): 590 x 450 mm Speed display digit ...

Deep hole drilling machine make TBT Tiefbohrtechnik type T 10-250Machine no. 418.311.215, year of construction 1989 with control SIMATIC S5Technical specifications:Max. Drilling depth: 250 mmTable size 420 x 780 mmDrilling area steel ST 60 full drilling: max 16 mm Boring: max 20 mm:Drilling process: ELB (single-lip drilling)Number of drilling spindles: 1Main spindle drive: 2.6 / 3.2 kWSpeeds: 1020 - 4400 rpm: 1960 - 2950 rpm: 2950 - 4400 rpm: 4400 - 8950 rpmFilters: plate filter 60 l / minCooling lubrication system: 670 l deep drilling oilelectrical connection: 380 V, 15 kWExternal dimensions of the system including SS L x W x H: 3850 x 1800 x 2000 mmWeight approx .: 2200 kgWith- SIMATIC S5 115 U ELGO 85 P controller- separate control cabinet- internal cooling- various single-lip drills (see photos)- workpiece counter- coolant system- filter- Central lubrication unit- Instruction manual  ...

Duebel hole drilling machine BORING SYSTEM 21 PRESTIGE QUICK CONNECTIONS 21 DRILLING SPINDLES AXLE DISTANCE 32 MM CENTER DISTANCE FROM THE FIRST TO THE LAST DRILL CHUCK 640 mm DRILLING DEPTH 65 mm Engine power 2 hp Aluminium stop with 2 folding straps equipped with 1 left stop 1500 mm and 1 right stop 1500 mm 5 drilling spindle droplets 2 Pneumatic hold-downs in a safe and secure manner incl. packaging Quick Connection Drilling Spindles Drill head in cast iron Cast iron work table Drilling depth adjustment via patented spiral system Pneumatic scraping of the drilling group from 00 to 90 ° adjustable in any position. Stop infinitely adjustable via millimeter scale with magnifying glass High drills over num. digital display adjustable Back-side stop max. travel 300 mm Fixed stop on 37 mm for doorband Machine built according to Ce standards

offer 22326 Specifications: - Drilling capacity in steel ST 60 35 mm - Drilling capacity in steel ST 60 40 mm - Drilling spindle holder MK 4 - Drilling spindle stroke 170 mm - Projection 345 mm - Rotary table with 2 T-slots 550 mm - distance table – drilling spindle 650 mm - distance base plate – drilling spindle 1000 mm - Feed rates 0.09 - 0.16 - 0.28 mm/rev - AZ transmission continuously variable with manual transmission - Drilling spindle speeds infinitely adjustable 40 - 720 rpm -Right. - Left-hand rotation - Drive 400 V / 2.5 kW -Lighting - Coolant device - Space requirement approx. W 750 x H 1950 x D 1000 mm - Weight approx. 700 kg

offer 22054 Specifications: - Drilling capacity - in steel 15 mm - - in aluminium 18 mm - Drilling spindle holder MK 2 - Drilling depth 70 mm - Projection spindle / column 180 mm - Drilling spindle speeds 80 - 4000 rpm - Drive 400 V 0.45 / 0.75 kW - height-adjustable drilling table 280 x 240 mm - Distance drilling spindle / table approx. 360 mm - Distance drilling spindle / base plate approx. 410 mm - Space requirement approx. W 280 x H 1700 x D 600 mm - Weight approx. 85 kg - with : - Quick-change drill chuck 1 - 13 mm - Machine vice - div. Gebr. HSS drill 5 - 15 mm

Offer 23240 Specifications: - Drilling capacity in steel ST 60 32 mm - Drilling capacity in steel ST 60 40 mm - Tapping device up to M 27 - Drilling spindle holder MK 3 - Drilling spindle stroke 175 mm - Drilling spindle speeds infinitely variable from 60 to 1600 rpm - 3 feeds electr. Magnetic indentation 0.1 ; 0,16 ; 0.25 mm/rev - Projection 290 mm - Max. distance between drilling spindle and table 790 mm - Max. distance from drilling spindle - base plate 1210 mm - Table with 2 T-slots 570 x 475 mm - Height adjustable via rack and pinion with hand crank - Table left + right tiltable - Drive with reinforced motor 400 V / 1.6 / 2.9 kW - Space requirement approx. W 600 x H 1950 x D 980 mm - Weight approx. 450 kg - With: - Coolant device in base plate - Quick-release drill chuck 1-13 mm - Emergency stop button -Lighting - Machine ...

Specifications: - Drilling capacity in steel ST 60 35 mm - Drilling capacity in steel ST 60 40 mm - Drilling spindle holder MK 4 - Drilling spindle stroke 170 mm - Projection 345 mm - Rotary table with 2 T-slots 550 mm -Max. Distance table – drilling spindle 650 mm -Max. Distance base plate – drilling spindle 1000 mm - Feeds 0.09 - 0.16 - 0.28 mm/rev - AZ continuously variable transmission with manual transmission - Drilling spindle speeds infinitely variable 80 - 720 rpm - Drive 400 V / 2.5 kW -Lighting - Quick-action drill chuck - Space requirement approx. W 750 x H 1950 x D 1000 mm - Weight approx. 700 kg

The deep hole drilling machine have 6 spindles and is in very good condition, LIKE NEW! This can be like to inspect under pressure. On request we can send you more pictures. Number drill spindle 6 ELB and BTA drilling Min. drilling diameter 3 mm Max. drilling diameter 20 mm Max. drilling depth 1000 mm We see ourselves as a competent partner for downhole drilling, turning, milling and welding in paid labor. We will gladly make you an offer!

Modern, precise production column drilling machine according to proven UNIMAX 3 concept with infinitely variable feed drive, automatic tool ejector and standard chip breakage control. The digital display displays feed, speed and drilling depth. Turn switch Right/Left Run. Emergency-off-stroke button. Motor protection. Pre-configured machine with optional equipment thread cutting device, free cutting function and LED lamp. Normal drilling capacity in E 335: 30 mm Thread cutting power: M 20 Spindle: MK 3 Feed infinitely adjustable in the range: 30 - 400 mm/min Drilling depth programmable: 125 mm Extension: 260 mm Distance spindle/table: 90 to 840 mm Table area: 500 x 365 mm Column diameter: 110 mm Total height: 1,900 mm Weight: 280 kg Motor can be switched on pole: 0.8/1.5 kW Spindle speeds infinitely variable Drilling Range A: 80 - 1,440 rpm Drilling Range B: 180 - ...

Technical data: - Drilling capacity in steel ST 60 40 mm - Drilling capacity up to 45 mm - Thread cutting device up to M 36 - Feeds infinitely adjustable 30 - 1,650 mm/min - Drilling spindle holder MK 4 - Drilling spindle stroke programmable up to 175 mm - Drilling spindle speeds infinitely 30 - 2400 rpm - Extension 300 mm - Table with 2 T-slots 600 x 500 mm - Height adjustable via rack with hand crank - min. - max distance table - drilling spindle 70 - 830 mm - Drive 400 V / 7.5 kW - Space requirement approx. W 600 x H 1980 x D 950 mm - Weight approx. 500 kg

High performance column boring machine Technical data: - Drilling capacity in steel ST 60 32 mm - Thread cutting device up to M 20 - Drilling spindle holder MK 3 - Feeds 0.1 + 0.2 + 0.3 mm/U - Drilling spindle stroke 150 mm - 12 drilling spindle speeds 80 - 1400 rpm - Extension 280 mm - max distance table - drilling spindle 760 mm - Table with 2 T-slots 550 x 400 mm - Height adjustable via rack with hand crank - Drive 400 V / 1.4 / 2.3 kW - Space requirement approx. W 550 x H 1950 x D 850 mm - Weight approx. 360 kg - with: - coolant device - Quick-release drilling chuck - 20 pcs. HSS div. Drill 8 - 25 mm

Specifications: - Drilling capacity in steel ST 60 28 mm - Drilling capacity in steel ST 60 32 mm - Drilling spindle holder MK 3 long spindle - Drilling spindle stroke 180 mm - Drilling spindle speeds infinitely variable approx. 140 - 1600 rpm - 3 feeds 0.1 ; 0,2 ; 0.3 mm/U - Projection 290 mm - max distance table - drilling spindle 620 mm - Rotary table with 2 T-slots 450 mm - Height adjustable via rack and pinion with hand crank - Coolant device - Drive 380 V / 0.9 / 1.3 kW - Space requirement approx. W 750 x H 1900 x D 700 mm - Weight approx. 280 kg

CNC drilling machine, manufacturer: MAW, type: BEA-3/6, year of manufacture: 1999, serial no.: 1345, 1365, 1363, control FERROCONTROL, workpiece dimensions approx. L/W 300x190 - 2,400x700 mm, plate thickness approx. 16-23 mm, aggregate group 1: drilling gear, 11 spindles, spindle spacing approx. 32 mm, spindle speed approx. 9,000 rpm, milling unit, speed max. approx. 18,000 rpm, horizontal drilling gear, 1 spindle, speed max. approx. 9,000 rpm, Aggregate group 2 (machining from the rear): drilling/press-fit unit for pot belt fittings, vibrating conveyor, light barrier stop, unit group 3 (machining from below): drill gear, 11 spindles, spindle spacing approx. 32 mm, spindle speed approx. 9,000 rpm, special drilling gear, 2 spindles, drilling gear, 1 spindle, press-fit unit for stop buffers, pendulum machining with clamping rails, control cabinets, safety fence system, barcode reader, acce ...

ID3265 Adler B50 year/Year of construction 2020 approx. 1500 hours/ hours 3.1 t Well drilling rig (well construction and geothermal energy up to 100 m), with trailer for drilling rig up to 3.5 t, standpipe with auger for pre-drilling, 110 m flushing drill pipe on steel pallet, complete maintenance was carried out at the end of 23. The machine was fitted with a new drill head from Eurodrill at the end of 2013 for approx. 20,000 euros. Water well drilling rig (well construction and geothermal energy up to 100 m), with trailer for drilling rig up to 3.5t, standpipe with auger for pre-drilling, 110 m directional drill pipe on steel pallet, complete maintenance was carried out at the end of 23. At the end of 23, the machine received a new drill head from Eurodrill for about 20,000 euros.

Drilling capacity: 25 mm Drilling depth: 700 mm Spindle taper: 40   Number of drilling spindles: 0   SPECIFICATIONS Drilling capacity   X = 700 mm Drilling capacity steel Ø5 - 25 mm Drilling capacity cast iron Ø  5 - 25 mm Spindle taper Mk  Spindle Sk 40 Power  5.5 kW Spindle speeds / ranges  4000 Rpm

Specifications: - Drilling capacity in steel ST 60 32 mm - Drilling capacity in steel ST 60 40 mm - Drilling spindle holder MK 3 - Drilling spindle stroke 175 mm - 12 drilling spindle speeds 120 – 3000 rpm - Projection 290 mm distance between drilling spindle and table / base plate 630 / 1190 mm - Table with 2 T-slots 570 x 475 mm Height-adjustable via rack and pinion with hand crank - Drive 400 V / 1.1 / 1.8 kW - Space requirement approx. W 600 x H 1950 x D 980 mm - Weight approx. 450 kg - with: - Machine vice - Quick-release drill chuck 1-13 mm - Lighting

Universal deep hole drilling machine make DEGEN type UTB 500Machine -No: 061/86 built in 1986Technical specifications:Quill stroke / drilling depth: 500 mmTravel X (cross table): 400 mmTravel Y (vertical spindle head): 450 mmTravel Z (table lengthways): 250 mmDistance from the center of the spindle to the clamping surface: 250 mmmax.workpiece weight: 1000 kgTable surface area: 800 x 400 mmTable height: 1000 mmSpindle mount: MK 2Max.drilling diameter with twist drill / Speedbit drill: 16/25 mmmax.thread diameter: 16 mmQuill feed: 0 - 150 mm / min.Rapid traverse quill: 3.6 m / min8 spindle speeds: 240 - 2400 rpm.Drive power spindle: 0.8 / 1.3 kWCoolant pump: 0.07 kWServo motor: 0.65 kWTotal power requirement: 2 kWWeight approx: 980 kgDimensions L x W x H (with control panel) approx: 2420 x 1200 x 1850 mmWith- Control panel with digital display for drilling depth and drilling cycle- 2-axis  ...

- Thread cutting device - Control panel with OLED display - LED lighting - Quickly adjustable and ergonomic drilling depth stop - Infinitely variable speed control via central rotary knob - Thermal overload protection - Spindle stop - Drilling protection with electr. Hedge - Connection cable with Schuko plug SPECIFICATIONS - Spindle: B16 - Drilling depth: 60 mm - Projection: 220 mm - Column Ø: 70 mm - Spindle/work surface: 140 – 315 mm - Drill head height adjustment: by hand - Speed display: Digital - Drilling depth display: Digital - Feed (mm/revolution): by hand - Spindle speeds infinitely variable: 60 – 6,000 1/min - Continuous/normal drilling capacity: 10/12 mm - Thread cutting performance (depending on slope): M6 - FACTORY WARRANTY: 3 years (single shift) - OPTION Drilling package (No. 296570) Machine vice Flott [felix] 80 and quick-release drill c ...

Machine Details Warehouse number 1105-03722 Machine type Deep hole drilling machine Make IXION Type TL 500 SVA Year of construction 1985 Control type CNC Control CNC Bosch Alpha Storage location HAGUENAU Country of origin GERMANY Delivery time immediately Freight base from stock Technical details Core drilling diameter - max. 1.5 - 18 mm Drilling depth 600 mm Clamping table, rigid 700 x 1,350 mm Clamping surface of the rotary table 1,000 x 500 mm Longitudinal movement of the table 600 mm Table displacement in drilling direction 400 mm Table rotatable 180 ° Vertical adjustment of the drill carriage 250 mm Drilling unit swivel +/- 15 ° Spindle cone MK 3 Number of speeds 8 Speed range 240 - 2,400 rpm Control CNC Bosch Alpha Motor power 1.0 / 1.6 kW Total power requirement 10 kVA Machine weight approx. 1.35 t Space requirement approx. 2.0 x 1.5 x 1.8 m Infor ...
