bend used for sale

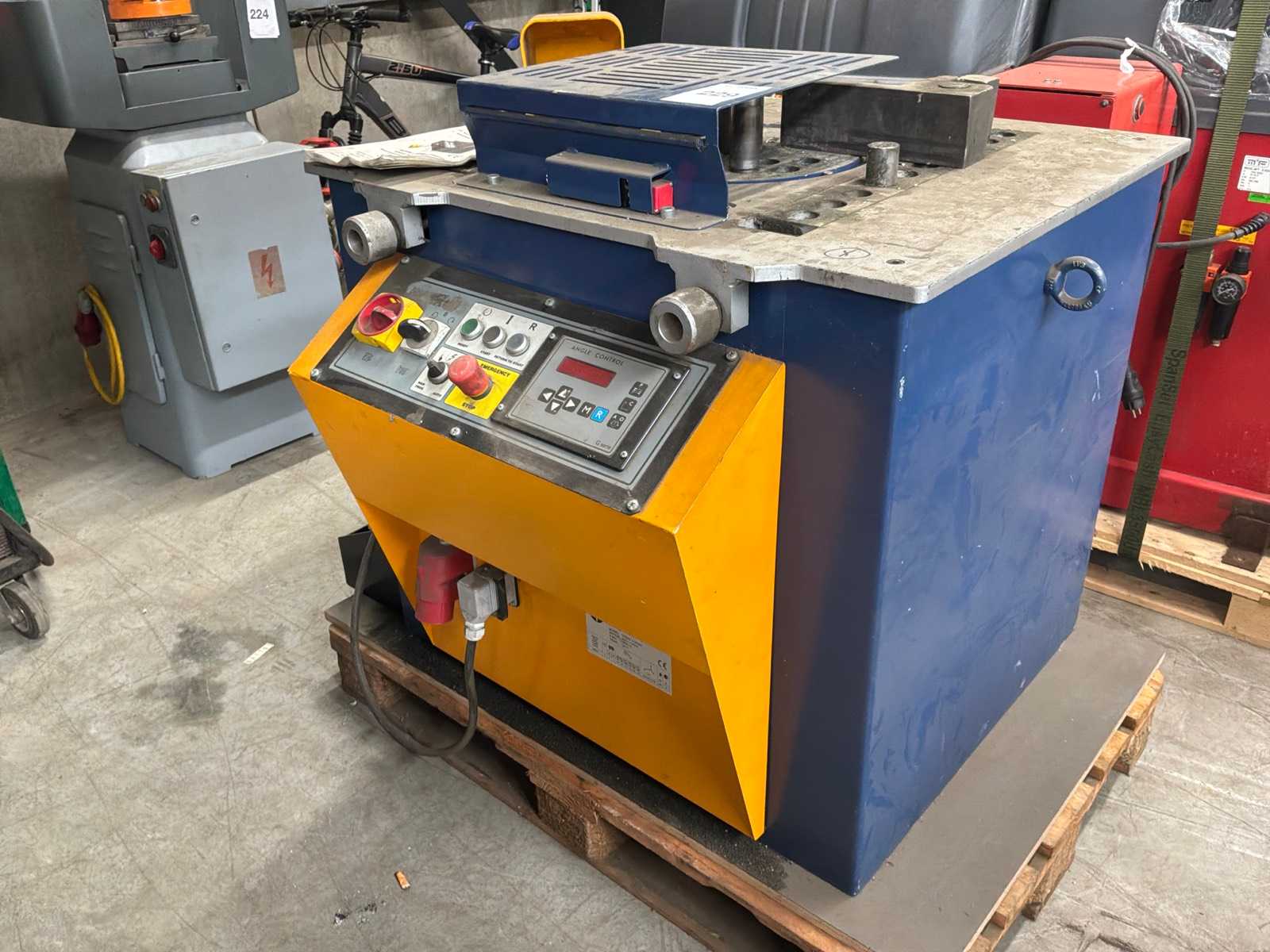

This STAR-BEND STAR 800 CN6/GEN/L Bending machine was manufactured in the year 2006 in Italy. It is equipped with a STAR-BEND control unit and has 6 axis.

round material: 40 mm tube diameter: 70x2 mm square material: 80x30x3 mm L-beam: 50 x 5 mm I - beam section - flat steel: 80 x 16 mm I-beam section - upend: 50 x 15 mm roll diameter: 157 mm Shaft diameter: 50 mm bending speed: 2,95 m/min total power requirement: 1,1 kW weight of the machine ca.: 500 kg dimensions of the machine ca.: 1000x950x1450 mm Domestic equipments: - Special steel shafts (42CrMo4) hardened and ground - a set of standard rollers - lower rollers up and down hydraulically deliverable - digital display for lower rollers - separate control panel - in one direction manually adjustable lateral straightening rollers - manual lubrication - horizontal and vertical operation - CE mark / Declaration of Conformity - Operating instructions in German The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 1050 mm plate thickness: 1 mm roll diameter: 56 mm dimensions of the machine ca.: 1600 x 700 x 1050 mm Domestic equipments: - Upper roller can be swung out manually The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 2100 mm plate thickness: 13 mm pre-bending: 10 mm upper roll diameter: 230 mm lower roll diameter: 210 mm side roll diameter: 190 mm total power requirement: 7,5 kW weight of the machine ca.: 4.620 kg dimensions of the machine ca.: 4150x1400x1300 mm Accessories / equipment: - Conical bending device - induction hardened rolls - digital display for side rollers - Machine made of steel construction - Separate control panel - two speeds - all rollers on ball bearings - Folding and support bearing from the top roller is actuated from the control panel. When the folding bearing is opened, the roller moves automatically upwards. - Conical adjustment of the rollers via control panel - Central rollers are via hydraulic motor and rotary reduction gear driven. (Top and bottom rollers) - Calibration The data for this ad was created with ModulMWS - the software solution of LogoTech oHG ...

bending speed: 2.1 m/min Bending capacity - square: 30x30 mm bending capacity - flat iron: 80x15 mm Bending capacity - flat iron on edge: 50x10 mm tube diameter: 1 oder 60x2 mm Shaft diameter - upper: 35 mm Shaft diameter - lower: 30 mm total power requirement: 0,75 kw range L-W-H: 650 x 500 x 1300 mm weight: 170 kg Standard features: - hardened special steel shafts - a set of hardened rollers - Bottom rollers are driven - lateral straightening rollers - Foot pedal - horizontal and vertical working The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bar material - diameter: Ø 35 mm I-beam section - flat steel: 60x10 mm L-beam: 50 mm tube diameter max.: Ø 60x2 mm square material: 45x45x3 mm roll diam. toproll: 162 mm roll diam. bottom roll: 152 mm Shaft diameter: 50/40 mm turning speeds: 3,3 m/min total power requirement: 1,5 + 0,75 kW weight: 450 kg range L-W-H: 1050x950x1450 mm Domestic equipments: - hydr. Delivery of the top roller - standard roller set - side straightening rollers - Upper roll holder: 50.0 mm - Under roller diameter: 40.0 mm - Control panel The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

L-beam: 50x5 mm square material: 50x40x3 mm I - beam section - flat steel: 120x15 mm I-beam section - upend: 60x10 mm round material: Ø 35 mm tube diameter: Ø 70x2 mm roll diameter: 155 mm bending speed: 4,3 m/min bore: 50 mm total power requirement: 1,5 kW weight: 400 kg dimensions: 830x730x1350 mm Domestic equipments: - Extended special steel shafts - a set of hardened rollers - Bottom rollers are driven - lateral straightening rollers - Foot pedal - horizontal and vertical working - CE mark / Declaration of Conformity - Operating instructions in German The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

I-beam section - flat steel: 80x20 (d1200) mm I-beam section - upend: 80x25 (d2100) mm L-beam: 50x50x6 (d1000) mm bar material - diameter: 40 (d800) mm square material: 60x60x3 (d4000) mm rectangle: 80x30x3 (d6000) mm tube diameter max.: 70x2 (d1600) mm tool adaptor: 60 mm roll diameter: 177 mm bending speed: 6,4 m/min total power requirement: 4 kW machine weight ab.: 970 kg Overall size: 1400x950x1450 mm Domestic equipments: - hydr. roller drive - Planetary gearbox delivery of the 2 lower rollers - for extra small bending radii - hardened tool holder (42CrMo4) - Standard roller set, hardened - lateral straightening rollers - mobile control panel - 3 driven rollers - Digital display - Machine horizontal u. vertically usable - CE mark / Declaration of Conformity - Operating instructions in German The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 2050 mm plate thickness: 4,5 mm pre-bending: 4,0 mm min. dia.: 210 mm roll diameter: 140 mm weight of the machine ca.: 1530 kg dimensions of the machine ca.: 3220x1200x900 mm Standard features: - Central rollers via electric motor, planetary reduction gear and Gear drive driven - Swivel top roller - Main engine with brake device - Conical bending device - Mobile controller and foot pedal - CE mark / Declaration of Conformity Additional equipment: - motorized rear roller adjustment - Digital display for back roller - induction hardened rolls The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 1050 mm plate thickness: 3,3 mm pre-bending: 3,0 mm roll diameter: 90 mm min. dia.: 130 mm total power requirement: 1,1 kw weight of the machine ca.: 570 kg dimensions of the machine ca.: 2100 x 800 x 1130 mm Domestic equipments: - Asymmetrical 3-roll round bending machine with motor drive - Upper roller swung out - Conical bending device - Main engine with brake device Additional equipment: - motorized rear roller adjustment - Digital display for back roller - induction hardened rolls The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 1250 mm plate thickness: 5,5 mm pre-bending: 5,0 mm roll length: 1280 mm min. dia.: 210 mm roll diam. toproll: 140 mm weight: 1365 kg range L-W-H: 2.020 x 900 x 1.200 mm Standard features: - Central rollers via electric motor, planetary reduction gear and Gear drive driven - Swivel top roller - Main engine with brake device - Conical bending device - Mobile controller and foot pedal - CE mark / Declaration of Conformity Additional equipment: - motorized rear roller adjustment - Digital display for back roller - induction hardened rolls The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 1050 mm plate thickness: 3,3 mm pre-bending: 3,0 mm roll length: 1050 mm roll diameter: 90,0 mm min. dia.: 130,0 mm engine output: 1,1 kW weight: 570 kg range L-W-H: 1.800 x 800 x 1.130 mm Furnishing: - Asymmetrical 3-roll bending machine with motor drive - hardened rollers - Motorized rear roller adjustment - Upper roller can be swiveled out - Conical bending device - self-braking main engine - digital display - foot switch The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 2100 mm plate thickness: 8,0 mm ST pre-bending: 6,0 mm ST diameter of upper rolls: 190 mm side roll diameter: 150 mm diameter of lower rolls: 170 mm total power requirement: 3,0 kW weight of the machine ca.: 3.290 kg. dimensions of the machine ca.: 4042 x 1380 x 1254 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

I - beam section - flat steel: 120 x 15 (d 750) mm I-beam section - upend: 60 x 10 (d 800) mm L-beam: 50 x 5 (d 1200) mm round material: 35,0 (d 800) mm bar material dia. max.: 70 x 2 (d 1200) mm square material: 50 x 40 x 3 mm bending speed: 4,3 m/min roll diam. toproll: 155 mm bore: 50,0 mm total power requirement: 1,5 kW weight: 320 kg range L-W-H: 730 x 830 x 1350 mm Furnishing: - Machine base - horizontal and vertical work use - foot switch - standard rollers (divided) - 2 driven rollers - CE mark / declaration of conformity - Operating instructions in German The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 1250 mm plate thickness: 5,5 mm pre-bending: 5,0 mm roll diam. toproll: 140 mm min. dia.: 210 mm engine output: 2,2 kW turning speeds: 5,7 U/min weight: 1365 kg range L-W-H: 2.020 x 900 x 1.200 mm Furnishing: - 2 central rollers driven by an electric motor - Upper beam can be swiveled out - Conical bending device - foot switch - self-braking main engine - CE mark / declaration of conformity including special equipment: - Motorized rear roller adjustment - hardened rollers - digital display The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 4100 mm plate thickness: 13,0 mm ST pre-bending: 10,0 mm ST diameter of upper rolls: 360 mm side roll diameter: 250 mm diameter of lower rolls: 330 mm total power requirement: 11,0 kW weight of the machine ca.: 16.000 kg. dimensions of the machine ca.: 6542 x 1677 x 1900 mm Furnishing: - hydraulic 4 roll bending machine - Conical bending device, hydr. adjustable - Induction hardened rollers - Digital display for the two side rollers - mobile control panel - 2 speeds - hydraulic folding bearing - CE mark / declaration of conformity The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 3100 mm plate thickness: 16,0 mm ST pre-bending: 20,0 mm ST diameter of upper rolls: 360 mm side roll diameter: 250 mm diameter of lower rolls: 330 mm total power requirement: 15,0 kW weight of the machine ca.: 13.200 kg. dimensions of the machine ca.: 5542 x 2100 x 1983 mm Furnishing: - hydraulic 4 roll bending machine - Conical bending device, hydr. adjustable - Induction hardened rollers - Digital display for the two side rollers - mobile control panel - 2 speeds - hydraulic folding bearing - CE mark / declaration of conformity The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 4100 mm plate thickness: 8,0 mm ST pre-bending: 6,0 mm ST diameter of upper rolls: 300 mm side roll diameter: 210 mm diameter of lower rolls: 270 mm total power requirement: 7,5 kW weight of the machine ca.: 9.930 kg. dimensions of the machine ca.: 6532 x 1730 x 1489 mm Furnishing: - hydraulic 4 roll bending machine - Conical bending device, hydr. adjustable - Induction hardened rollers - Digital display for the two side rollers - mobile control panel - 2 speeds - hydraulic folding bearing - CE mark / declaration of conformity The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 3100 mm plate thickness: 8,0 mm ST pre-bending: 6,0 mm ST diameter of upper rolls: 230 mm side roll diameter: 210 mm diameter of lower rolls: 190 mm total power requirement: 7,5 kW weight of the machine ca.: 6.020 kg. dimensions of the machine ca.: 5142 x 1390 x 1300 mm Furnishing: - hydraulic 4 roll bending machine - Conical bending device, hydr. adjustable - Induction hardened rollers - Digital display for the two side rollers - mobile control panel - 2 speeds - hydraulic folding bearing - CE mark / declaration of conformity The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

I-beam section - upend: 120 x 25 (d 1600) mm bar material dia. max.: 140 x 3 (d 3000) mm L-beam: 100x100x10 (d 1600) mm square material: 140 x 40 x 3 (d 4000) mm I - beam section - flat steel: 200 x 35 (d 1000) mm bar material - diameter: 70,0 (d 800) mm tool taper: 100,0 mm 0: 315 mm turning speeds: 5,4 m/min. total power requirement: 11,0 kW weight: 2.240 kg range L-W-H: 1500 x 1650 x 2100 mm Furnishing: - hydr. Roller drive - Planetary gear delivery of the 2 lower rollers - for extra small bending radii - hardened tool holder (42CrMo4) - Standard set of rollers, hardened - Hydraulically adjustable lateral straightening rollers - mobile control panel - 3 driven rollers - digital display - Machine can be used horizontally and vertically - CE mark / declaration of conformity - Operating instructions in German Special accessories included in the price: - hydraulic side roller adjustment  ...

sheet width: 2050 mm plate thickness: 4,5 mm max. plate thickness: 4,0 mm anbiegen roll length: 2050 mm min. dia.: 210 mm roll diam. toproll: 140 mm weight: 1530 kg range L-W-H: 3220 x 1200 x 900 mm Furnishing: - Upper and lower roller electr. driven - Upper roller can be swiveled out - Conical bending device - Asymmetrical roller arrangement - self-braking main engine - separate control and operating panel - Safety line - foot switch - Operating instructions in German - CE mark / declaration of conformity Special equipment included in the price: - hardened rollers - Motorized rear roller adjustment - digital display The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

I-beam section - upend: 100 x 20 (d 2100) mm tube diameter max.: 100 x 3 (d 3000) mm L-beam: 80 x 80 x 8 (d 2000) mm square material: 50 x 25 x 2 (d 600) mm bar material - diameter: 60,0 (d 1000) mm I-beam section - flat steel: 120 x 30 (d 600) max. 140 mm tool taper: 80,0 turning speeds: 4,2 U/min weight: 1600 kg dimensions: 1240 x 1375 x 1540 mm Domestic equipments: - Welded steel structure (St-52) - Rollers are driven by 3 separate hydraulic motors - Stepless speed - Special steel gears - Shafts are made of special steel, hardened and ground - Manual lubrication - Guide rollers are hydraulically adjustable - Lower rollers are hydraulically movable up and down - Infinitely adjustable speed of the lower rollers, move after below and above - Digital display for lower rollers - Separate and movable control panel - Horizontal and vertical operation - Production quality certified according  ...

sheet width: 1550 mm plate thickness: 4,5 mm pre-bending: 4,0 mm roll length: 1550 mm min. dia.: 190 mm roll diam. toproll: 130 mm engine output: 2,2 kW bending speed: 5,3 m/min weight: 1360 kg range L-W-H: 2.320 x 900 x 1.200 mm Furnishing: - 2 central rollers driven by an electric motor - Swing-out upper beam - Conical bending device - separate control panel - self-braking main motor - CE mark/Declaration of Conformity Special equipment included in the price: - hardened rollers - Motorized rear roller adjustment - Digital display The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 1550 mm plate thickness: 4,5 mm pre-bending: 4,0 mm roll length: 1550 mm min. dia.: 190 mm roll diam. toproll: 130 mm weight: 1265 kg dimensions: 2670x1110x1050 mm Domestic equipments: - Central rollers via electric motor, planetary reduction gear and Gear drive driven - Swivel top roller - Main engine with brake device - Conical bending device - Mobile controller and foot pedal - CE mark / Declaration of Conformity Additional equipment: - induction hardened rolls - motorized rear roller adjustment - Digital display for back roller The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Brand BENDMAK Type CYL-ST-170-20-5,0 Working lenght 2100 mm Pre-Bending 5 mm Max Thickness 5 mm Top Roll 170 mm Min Bending 255 mm Motor Power 4 kW Bending Speed 4,8 m/min. Dimensions L x W x H 4000 x 1100 x 1130 mm Weight 2300 kg Year 2015 Extra information Cone Bending device Induction hardened rolls Motorized Up and Down movement of the Back Roll Digital readout for Displaying positions of the Back Roll 2 Separte Control Units Cast Iron Body

sheet width: 1600 mm plate thickness: 16,0 mm ST pre-bending: 13,0 mm ST diameter of upper rolls: 230 mm side roll diameter: 0 mm diameter of lower rolls: 0 mm total power requirement: 0 kW weight of the machine ca.: 0 kg. dimensions of the machine ca.: 0 mm Furnishing: - electro-hydraulic 4-roller bending machine - 2x driven main rollers (upper & lower roller) - with hydraulic conical bending device - Induction hardened rollers - including straightening function for welded pipes - Control unit / display with touch screen function digital position display for the two side rollers - mobile control panel - 2x bending speeds selectable - hydraulic folding bearing - Safety device (safety line with switch unit) - Pressure gauge / pressure indicator for the rollers - CE mark + declaration of conformity - Operation manual The data for this ad was created with ModulMWS - the software solution ...

I - beam section - flat steel: 80 x 20 (d 1200) mm I-beam section - upend: 80 x 25 (d 2100) mm L-beam: 50 x 50 x 6 (d 1000) mm bar material - diameter: 40,0 (d 800) mm square material: 60x60x3 ( d 4000 ) mm rectangle: 80x30x3 ( d 6000 ) mm roll surface width: 177x60 (18x5 Nut) mm tool adaptor: 60 mm range L-W-H: 940 x 1260 x 1390 mm bar material dia. max.: 70 x 2 (d 1600) mm turning speeds: 6,4 m/min. total power requirement: 4,75 kW weight: 1080 kg range L-W-H: 950 x 1400 x 1450 mm Furnishing: - electro-hydraulic ring/profile bending machine - Hydraulic lower/side roller adjustment for extra small bending radii - Lower/side roller can be delivered individually - 3x powered rollers - divided roller segments - Digital position display of the bottom/side rollers Display with TouchScree function - hardened tool holder (42CrMo4) - Machine base - 2x manually adjustable side guides - Horizon ...

L-beam: 40 x 5 (d 500) mm I - beam section - flat steel: 80 x 15 (d 700) mm I-beam section - upend: 50 x 10 (d 800) mm round material: 30,0 (d 700) mm bar material dia. max.: 60 x 2 (d 1200) mm square material: 50 x 30 x 3 mm range L-W-H: 670 x 530 x 1350 mm weight: 185 kg total power requirement: 0,75 kW Furnishing: - Robust electro-motor ring/profile bending machine - Horizontal and vertical work possible Machine head foldable by 90° - 1x free moving footswitch - segmented standard rollers (divided) - 2x motor driven rollers - manual delivery of the top roller - analogue position display of the top rollers (scale) - manually adjustable lateral/straightening rollers - CE mark / declaration of conformity - User manual in German The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

I-beam section - upend: 100 x 20 (d 2100) mm bar material dia. max.: 100 x 3 (d 3000) mm L-beam: 80x80x8 (d 2000) mm square material: 50 x 25 x 2 (d 600) mm I - beam section - flat steel: 120 x 30 (d 600) max.140b mm bar material - diameter: 60,0 (d 1000) mm tool taper: 80,0 mm turning speeds: 4,2 m/min. weight: 1.600 kg range L-W-H: 1240 x 1375 x 1540 mm Ausstattung: - elektro-hydraulische Ring-/Profilbiegemaschine - hydraulische Unter-/Seitenwalzenverstellung für extra kleine Biegeradien - Unter-/Seitenwalze einzel zustellbar - 3x angetriebene Walzen - geteile Walzensegmente - digitale Positionsanzeige der Unter-/Seitenwalzen Anzeige mit TouchScree Funktion - gehärtete Werkzeugaufnahme (42CrMo4) - Maschinenuntergestell - 2x hydraulisch zustellbare Seitenführungen - horizontaler und vertikaler Arbeitseinsatz möglich - freibewegliches Bedienpult - Manometer / Druckanzeige für die  ...

Specifications Ø tubes / radius in mm: Ø 22 / 67 Ø tubes / radius in mm: Ø 10 / 36

weight max. in kg: max. 1000 kg turning speeds: 0,18 - 0,58 U/min height: 976 - 1436 mm inclination: 0 - 115 ° table diameter: 895 mm voltage: 380 V total power requirement: 2,0 kW weight: 685 kg range L-W-H: 2414 x 920 x 1436 mm he AK BEND SRH hydraulic weld positioner is great for welding, assembly and maintenance work. The positioning is done via a hydraulic turning and tilting function. Description : - hydraulic turning and tilting function - Fast handling of workpieces - Highest productivity through optimal working position - Lifting, tilting and turning of workpieces in one setting - Low non-productive times by turning components - Highest work performance through pleasant working - Back-friendly work for the user Furnishing : - Stepless speed adjustment - free-moving footswitch - Handheld remote control with 5 meter cable - freely movable control panel with digital speed display  ...

Hand lever plate and profile steel shears heavy and stable outing cuts sheets, round steel (approx. 15mm), flat steel and T-profiles Mounted on base Special price

Reinforced steel scissors Round iron scissors Scissors Manufacturers Muhr and Bender Type 50N/22 and 50N/28 50N/22 intersects at 450N/mm2: Round: 22mm Square 22mm Flat: 35x10mm 50N/28 intersects at 450N/mm2: Round: 28mm Square 24mm Flat: 40x15mm Both machines new and ovp Special price

Qty. 1 Second-hand section rolling mill plant Mfc.: Pomini, OMV, BM, Bendotti Built: 1989 continuously modernised Stopped: 2019 Installed power: 16.2 MW Billet income sizes: 120 x 120 up to 160 x 160 mm Length: 6.0 m Section production: Round bar dia.: 30 – 60 mm Angles from 30x3 up to 100x12 mm U” channel from 40x20 and 120x55 mm T” shape from 30 till 100 mm T” shape from 30 to 120 mm (Special for elevator rails- Leader in Europa) The rolling mill can be implemented with many other profiles by using different grooved rolls. Production capacity: 250,000 – 270,000 T/annum depending on the production mix Scope of supply: Reheating furnace Section rolling mill line Tying Machine Descaler Bundle Machine Cooling tower Machine shop

Qty. 1 Second-hand section rolling mill plant Mfc.: Pomini, OMV, BM, Bendotti Built: 1989 continuously modernised Stopped: 2019 Installed power: 16.2 MW Billet income sizes: 120 x 120 up to 160 x 160 mm Length: 6.0 m Section production: Round bar dia.: 30 – 60 mm Angles from 30x3 up to 100x12 mm U” channel from 40x20 and 120x55 mm T” shape from 30 till 100 mm T” shape from 30 to 120 mm (Special for elevator rails- Leader in Europa) The rolling mill can be implemented with many other profiles by using different grooved rolls. Production capacity: 250,000 – 270,000 T/annum depending on the production mix Scope of supply: Reheating furnace Section rolling mill line Tying Machine Descaler Bundle Machine Cooling tower Machine shop

Hydr. Flat, - Profile and bar steel shears with cut-out device and punch punch Offer number: 15229 Make: MUHR + BENDER Type: KBLH 700 Machine no: 01562869552445 Built: 1986 Technical data: - two separate working cylinders, - it can be used at two workstations - work at the same time - Flat steel shears - knife length 520 mm - for flat material 500 x 18 mm - Profile steel shears - L- steel at 90° 130 x 12 mm - at 45° 90 x 10 mm - T-steel at 90° 180 mm - Bar steel scissors - Round steel 65 mm - Square steel 60 mm - Cut-out device - rectangular tool for material up to 12 mm - Punching hole - Punching force approx. 700 KN - Stroke infinitely variable 0 - 75 mm - punches in steel up to 30 mm in 20 mm - Extension 510 mm - Hydraulic drive 400 V / 8.5 kW - Space requirement approx. W 1850 x H 2100 x D 750 mm - Weight ...

table diameter: 960 mm table load: 3.500 kg Frontal Loading Center (A): 150 mm Side Loading Center (B): 150 mm Rotating speeds: 0,1 - 0,9 UpM T-slots: 6 x M20 Tilt Angle: 70-90-180 ° Tilting Speed: 30 sn min./90° weight of the machine ca.: 1.500 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 2600 mm plate thickness: 10 mm pre-bending: 8 mm upper roll diameter: 230 mm lower roll diameter: 190 mm side roll diameter: 210 mm total power requirement: 7,5 kW weight of the machine ca.: 5.560 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

plate thickness: 1,25 mm roll-body distance: 250 mm throat: 260 mm distance between roll centers: 62 mm tool adaptor: 26 mm speed: 6,3 m/min total power requirement: 0,7 kW weight: 170 kg range L-W-H: 1020x600x1500 mm Domestic equipments: - motor driven beading machine - 5 sets of bead rollers - Footswitch - Operating instructions in German - CE mark / Declaration of Conformity The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

plate thickness: 2,5 mm roll-body distance: 260 mm throat: 500 mm distance between roll centers: 92 mm tool adaptor: 35 mm speed: 3,5 m/min total power requirement: 1,5+0,55 kW weight of the machine ca.: 320 kg dimensions of the machine ca.: 1200x700x1200 mm Domestic equipments: - motor driven beading machine - 3 sets of bead rollers - Footswitch - Operating instructions in German - CE mark / Declaration of Conformity The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 3100 mm plate thickness: 6 mm pre-bending: 5 mm upper roll diameter: 200 mm min. bending diameter: Ø 300 mm bending speed: 5 m/min total power requirement: 5,5 kW weight of the machine ca.: 4.000 kg dimensions of the machine ca.: 4800x1300x1270 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 4100 mm plate thickness: 35 mm pre-bending: 28 mm upper roll diameter: 540 mm lower roll diameter: 541 mm side roll diameter: 440 mm total power requirement: 37 kW weight of the machine ca.: 48.100 kg Machine dimensions approx.: 7670x3000x2930 mm Accessories / equipment: - Conical bending device - induction hardened rolls - digital display for side rollers - Machine made of steel construction - Separate control panel - two speeds - all rollers on ball bearings - Folding and support bearing from the top roller is actuated from the control panel. When the folding bearing is opened, the roller moves automatically upwards. - Conical adjustment of the rollers via control panel - Central rollers are via hydraulic motor and rotary reduction gear driven. (Top and bottom rollers) - Calibration The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

plate thickness: 2,5 mm roll-body distance: 260 mm throat: 500 mm distance between roll centers: 92 mm tool adaptor: 35 mm speed: 3,5 m/min total power requirement: 1,5 kW weight of the machine ca.: 295 kg dimensions of the machine ca.: 1200x700x1200 mm Domestic equipments: - motor driven beading machine - 3 sets of bead rollers - Footswitch - Operating instructions in German - CE mark / Declaration of Conformity The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

plate thickness: 4 mm roll-body distance: 260 mm throat: 500 mm distance between roll centers: 132 mm tool adaptor: 40 mm speed: 5 m/min total power requirement: 2,2 kW weight of the machine ca.: 350 kg dimensions of the machine ca.: 1650x700x1280 mm Domestic equipments: - motor driven beading machine - 3 sets of bead rollers - Footswitch - Operating instructions in German - CE mark / Declaration of Conformity The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table diameter: 1300 mm table load: 7.000 kg Frontal Loading Center (A): 150 mm Side Loading Center (B): 150 mm Rotating speeds: 0,1 - 0,9 UpM T-slots: 6 x M24 Tilt Angle: 90-180-100 ° Tilting Speed: 30 sn min./90° weight of the machine ca.: 3.050 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 2100 mm plate thickness: 8 mm pre-bending: 6 mm upper roll diameter: 190 mm lower roll diameter: 170 mm side roll diameter: 150 mm total power requirement: 3 kW weight of the machine ca.: 3.450 kg Machine dimensions approx.: 4040x1380x1255 mm Accessories / equipment: - Conical bending device - induction hardened rolls - digital display for side rollers - Machine made of steel construction - Separate control panel - two speeds - all rollers on ball bearings - Folding and support bearing from the top roller is actuated from the control panel. When the folding bearing is opened, the roller moves automatically upwards. - Conical adjustment of the rollers via control panel - Central rollers are via hydraulic motor and rotary reduction gear driven. (Top and bottom rollers) - Calibration The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 3100 mm plate thickness: 25 mm pre-bending: 20 mm upper roll diameter: 390 mm lower roll diameter: 360 mm side roll diameter: 300 mm total power requirement: 18,5 kW weight of the machine ca.: 17.100 kg Machine dimensions approx.: 5800x2100x2000 mm Accessories / equipment: - Conical bending device - induction hardened rolls - digital display for side rollers - Machine made of steel construction - Separate control panel - two speeds - all rollers on ball bearings - Folding and support bearing from the top roller is actuated from the control panel. When the folding bearing is opened, the roller moves automatically upwards. - Conical adjustment of the rollers via control panel - Central rollers are via hydraulic motor and rotary reduction gear driven. (Top and bottom rollers) - Calibration The data for this ad was created with ModulMWS - the software solution of LogoTech oHG. ...

plate thickness: 4 mm roll-body distance: 260 mm throat: 500 mm distance between roll centers: 132 mm tool adaptor: 40 mm speed: 5 m/min total power requirement: 2,2+0,55 kW weight of the machine ca.: 450 kg dimensions of the machine ca.: 1800x700x1600 mm Domestic equipments: - motor driven beading machine - 3 sets of bead rollers - Footswitch - Operating instructions in German - CE mark / Declaration of Conformity The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table diameter: 715 mm table load: 500 kg Frontal Loading Center (A): 150 mm Side Loading Center (B): 150 mm Rotating speeds: 0,1 - 1 UpM T-slots: 6 x M16 Tilt Angle: 90-180-110 ° Tilting Speed: 30 sn min./90° weight of the machine ca.: 675 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 3100 mm plate thickness: 10 mm pre-bending: 8 mm upper roll diameter: 270 mm lower roll diameter: 250 mm side roll diameter: 210 mm total power requirement: 11 kW weight of the machine ca.: 7750 kg Overall size: 5600x1450x1600 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
