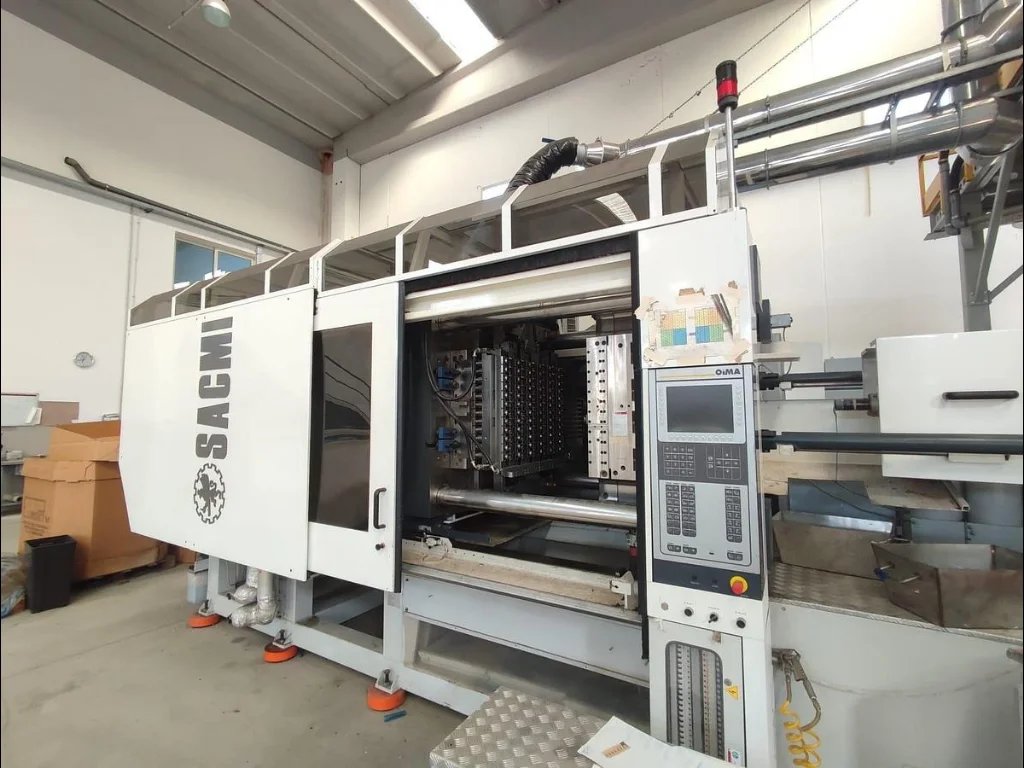

Used OIMA 350T injection molding machine - Y SACMI 6500.350

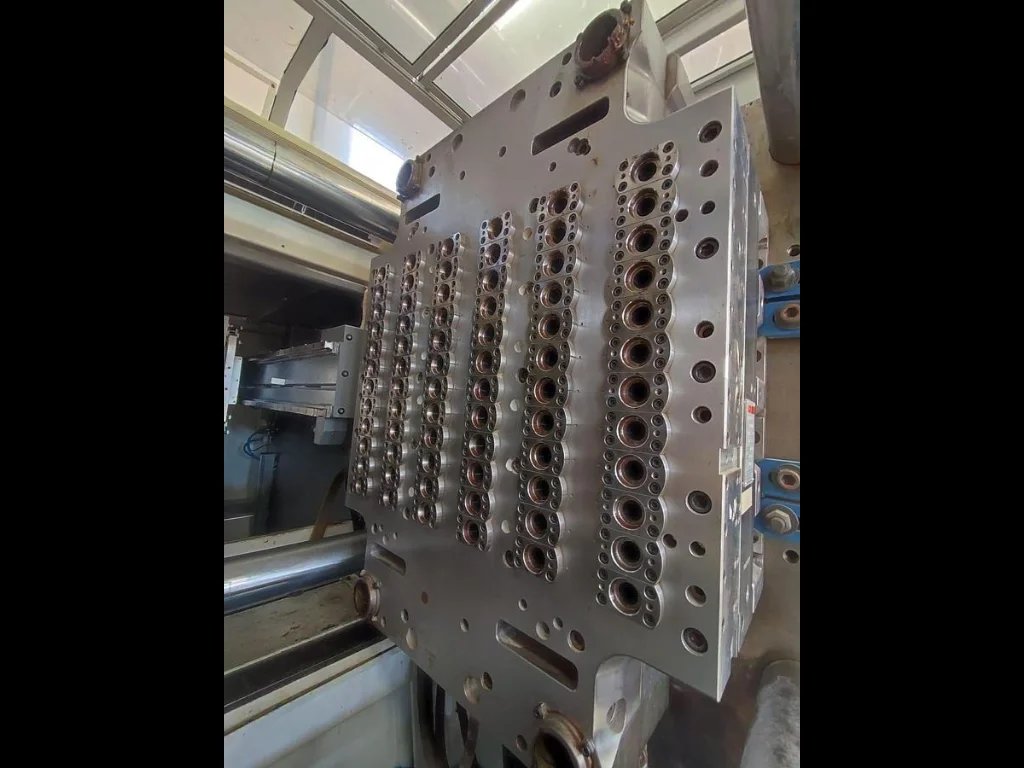

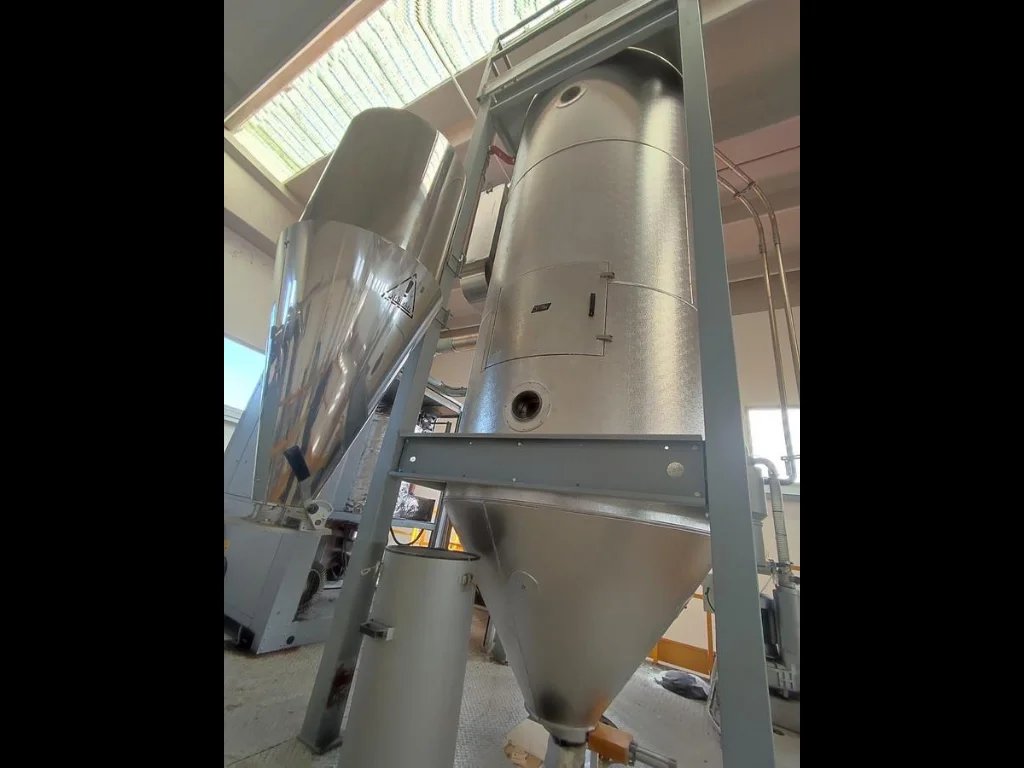

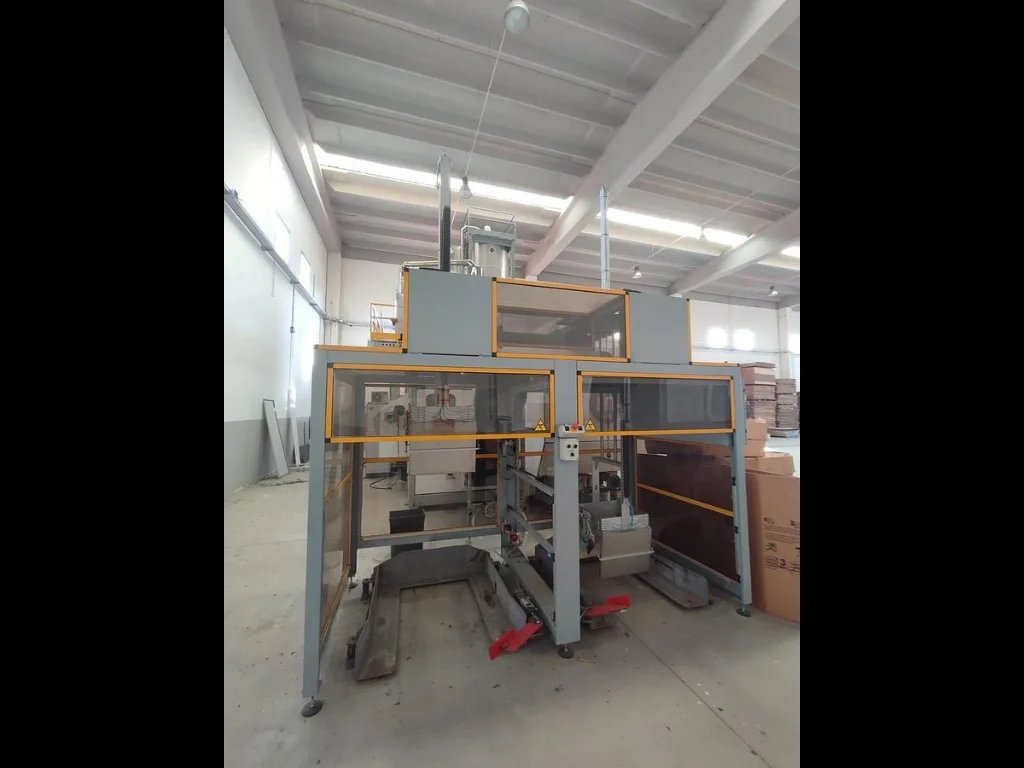

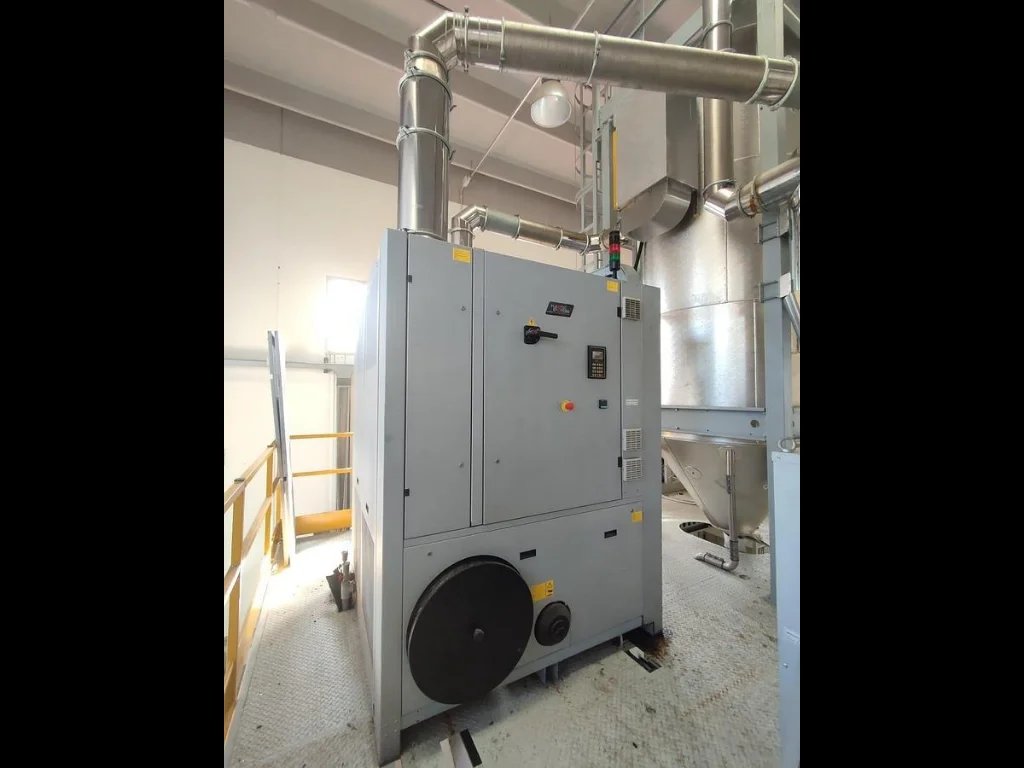

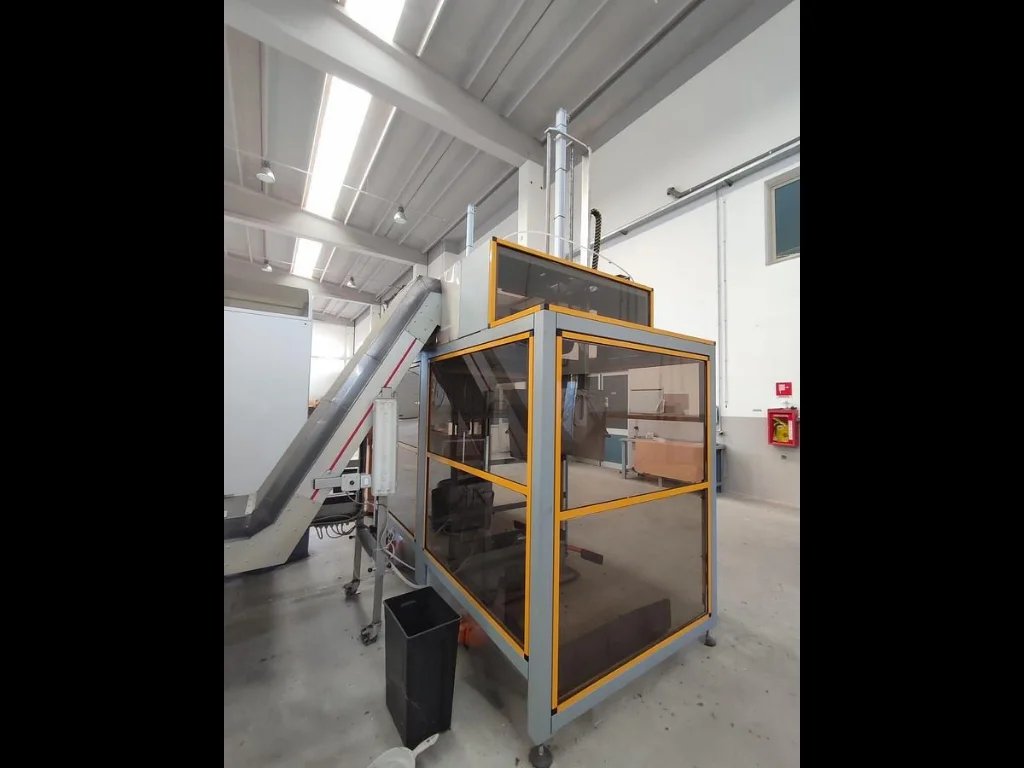

Used SACMI OIMA 350T injection molding machine - Year 2010Technical Specifications & Performance DataThis injection molding machine for PET preforms is a high-output cell engineered for beverage production and industrial packaging applications. Manufactured by OiMA, it combines robust clamping performance with precise injection control and a complete set of auxiliaries for reliable second hand operation within a used bottling line context.Manufacturer: OiMA S.p.A.Model: 6500.350Application: PET preform production for beverage packagingClamping force: 350 tonInjection volume: 4500 cm³ per 100 MPaInstalled power: 436.58 kWPower supply: 400 V, 50 HzMachine mass: 20,000 kgPress year: 2014Mold: SACMI PPM 072 H, 72 cavities, 34 g preforms, neck type Alaska Blue PRE 342Year: 2010Mold temperature: 8–12 °CMold mass: 9,720 kgAuxiliaries included: Sytrama REV 156 PET take-out robot; Plastic System dehumidifier; Plastic System hopper H6000H; Plastic System mold-area dehumidifier DSH 2004 MIC DISP; conveyor; palletizing systemMaterial processed: PETAdvanced Automation & Control SystemsThe cell integrates a Sytrama REV 156 PET robot for automatic take-out and part handling, supporting stable cycle times and consistent product quality. The machine is equipped with an electric charging unit and hydraulic accumulators for fast, repeatable injection phases. Operator-friendly controls and interlocked safety guards help streamline setup and routine operation.Automated take-out and transfer via Sytrama robotAccumulator-assisted injection for stable, fast cyclesIntegrated dehumidification and material handling for resin conditioningElectrical specifications: 400 V, 50 HzEngineered for quick, repeatable mold changes and efficient maintenance accessProduction Line Integration CapabilitiesThis injection cell can operate as a standalone preform production unit or be integrated upstream of stretch blow molding in a PET production line. The included dehumidifiers, hopper loader, conveyor, and palletizing system simplify in-plant logistics and align with broader bottling equipment and packaging machinery workflows.Standalone or inline operation with PET packaging linesDehumidification and hopper loading optimize PET resin preparationConveyor and palletizing system support downstream handling and warehousingIdeal for beverage production environments targeting consistent preform supplyMachine Condition & Maintenance HistoryThis second hand injection molding machine is presented in operational condition and ready for immediate use after standard site preparation and commissioning. The core press is year 2014, with the SACMI mold and auxiliaries from 2010, providing a balanced mix of robust mechanics and proven process reliability for PET preform production.Operational Performance & VersatilityWith a 350 ton clamp and 72-cavity SACMI mold, the system delivers high-throughput preform manufacturing suitable for water, juice, and other beverage packaging once blown into bottles downstream. The cell’s integrated resin dehumidification and controlled mold temperature range (8–12 °C) contribute to dimensional stability, surface finish, and low acetaldehyde content—key quality parameters for beverage packaging.High-cavity mold for large-scale preform outputConsistent process conditions for repeatable qualityIntegrated take-out robot minimizes cycle time and handling defectsOptimized for PET material conditioningInstallation Requirements & Site PreparationEnsure appropriate floor loading for the 20,000 kg press and safe access for installation equipment. Provide stable three-phase electrical service at 400 V, 50 Hz. Chilled water is required to maintain the mold temperature within the 8–12 °C operating window. Space planning should account for the robot envelope, conveyor routing, and palletizing zone.Electrical: 400 V, 50 HzCooling: chilled water for mold temperature 8–12 °CHandling: hoisting capacity for heavy equipment placementLayout: clearances for robot, conveyor, and palletizing systemSafety Standards & Compliance CertificationThe injection cell features perimeter guarding, interlocked access points, and emergency stop circuits to protect operators and maintenance staff. The integrated robot and auxiliaries are arranged to promote safe operations and streamlined maintenance within modern industrial packaging and used bottling line facilities.
seller offer No. resale PR28
