used DEGEN UTB

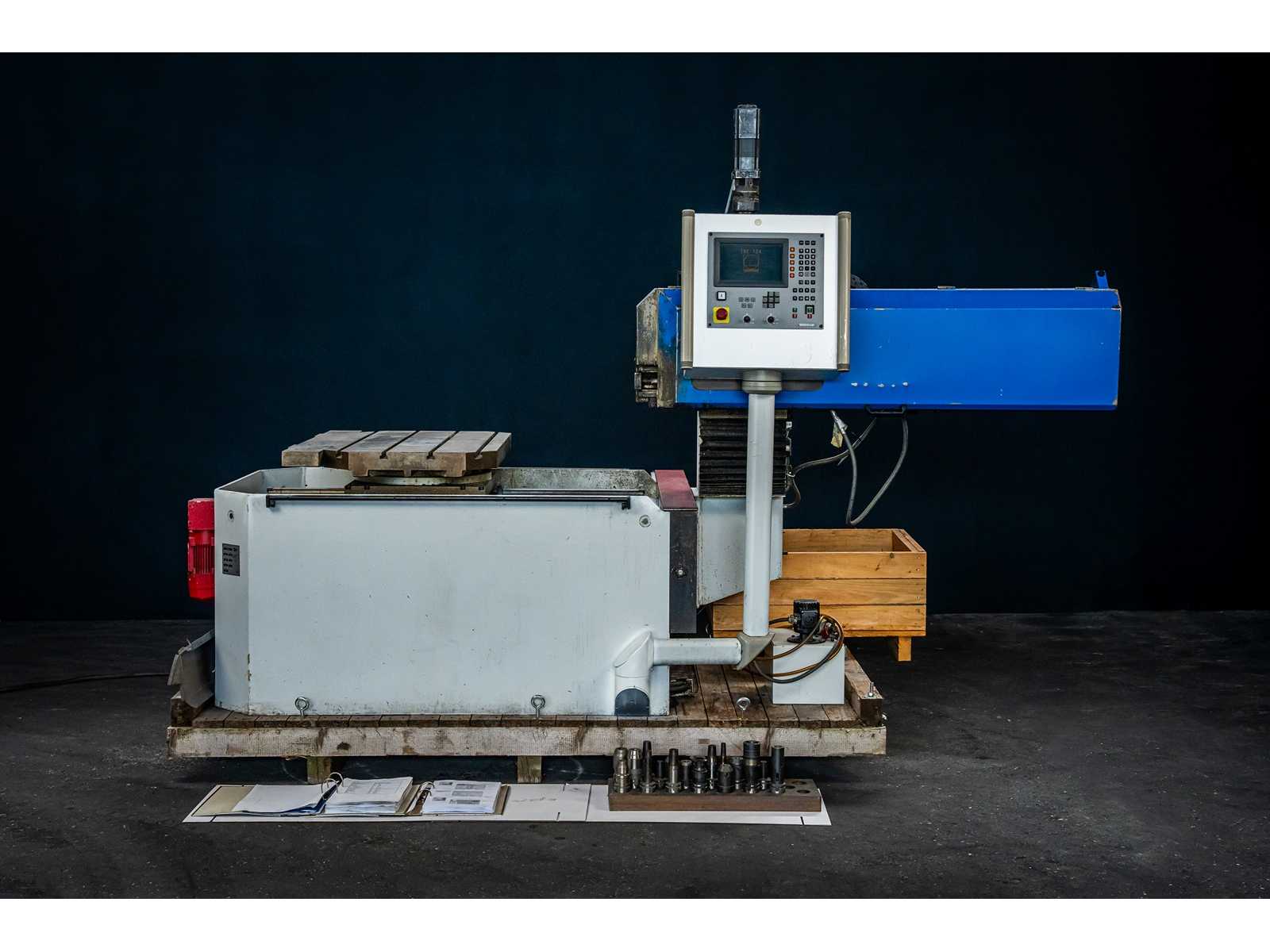

Description Universal CNC deep hole drilling machine from Degen suitable for tooling, fixture construction, training as well as mold making Travel 750x700x600mm Control SIMATIC OP17 Technical data Universal deep hole drilling machine DEGEN UTB 600 E X,Y manual Z, NC control Axes with digital display Drilling depth max. 900 mm max. drilling diameter 25 mm Spindle holder MK2 Spindle drive 2.6 kW Spindle speed max. 3000 rpm Table adjustment lengthways 750 mm Table adjustment Cross 700 mm Drilling unit vertical 300 mm Drilling swivel +/-20° Table area 650 x 1100 mm Table swivelling by 360° Table load max. 2000 kg 2 separate cooling systems - Spray mist (single-lip deep drills) - Drilling emulsion (spiral drilling) With accessory package and glass protection

Universal deep hole drilling machine make DEGEN type UTB 500Machine -No: 061/86 built in 1986Technical specifications:Quill stroke / drilling depth: 500 mmTravel X (cross table): 400 mmTravel Y (vertical spindle head): 450 mmTravel Z (table lengthways): 250 mmDistance from the center of the spindle to the clamping surface: 250 mmmax.workpiece weight: 1000 kgTable surface area: 800 x 400 mmTable height: 1000 mmSpindle mount: MK 2Max.drilling diameter with twist drill / Speedbit drill: 16/25 mmmax.thread diameter: 16 mmQuill feed: 0 - 150 mm / min.Rapid traverse quill: 3.6 m / min8 spindle speeds: 240 - 2400 rpm.Drive power spindle: 0.8 / 1.3 kWCoolant pump: 0.07 kWServo motor: 0.65 kWTotal power requirement: 2 kWWeight approx: 980 kgDimensions L x W x H (with control panel) approx: 2420 x 1200 x 1850 mmWith- Control panel with digital display for drilling depth and drilling cycle- 2-axis  ...

core drilling diameter max.: 20 mm bore depth: 900 mm longitudinal travel: 700 mm cross travel: 300 mm spindle travel: 600 mm w-axis: 750 mm weight of the machine ca.: 1.6 t dimensions of the machine ca.: 3.5 x 2.1 x 1.75 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Drilling capacity: 500 mm Drilling depth: 0 mm Spindle taper: 40   Number of drilling spindles: 2   CNC Brand: Siemens CNC Model: Sinumerik Make Degen UTB 4 Type UTB 400 - 2 Year 2006 Siemens Sinumriek Tapping capacity (mm)Stroke = 500 mm Drilling capacity (mm)Double spindle Distance Column/center (throat) mm Taper SK 40 Tapping depth (mm)    iKZ Coolant Filtration system Twin spindle machine Optional Large tooling package

Type TAM 25/600 Masch.-Nr. 1010 Built in 1992 . Specifications: Workpiece diameter approx. 1 – 25 mm Cut-off spindle approx. 8,800 rpm Grinding spindle approx. 4,400 rpm Cutting wheel 125 x 1.5 x 20 mm Grinding wheel 100 x 50 x 20 mm

Drilling capacity: 32 mm Drilling depth: 1000 mm Spindle taper: 50   Number of heads: 1   CNC Brand: Heidenhain Deep hole drilling machineDEGEN - UTB 1000 H CNC MACH-ID 8511 Make: DEGEN Type: UTB 1000 H CNC Control: HeidenHain TNC 124 Year: 1999 Max. drill Ø steel:     5 - 32mm Drilling depth:         1000mm X - Travel:             1300mm Y - Travel:             600mm Z - Travel:             1000mm W - Travel:             500mm Table load:             5000 Table size L x W / or ø:1400 x 800mm Spindle taper:          Sk-50Mk Power on spindle:       10kW Speeds / ranges:        0  - 4000 ...

Key data: 300 mm, 160 mm, 240 mm

Machine Type: Horizontal Surface Grinding Machine Manufacturer: DEGEN Model: FSH Q 300-V Year of Make: 1986 Condition: very good Offer type: used machine Specifications: Grinding area: 300 x 160 mm Working size: max. working height 240 – 290 mm Drive type: el./hydr. Drive: 1.1 kW Remark: automatic depth delivery with digital display, automatic transverse adjustment, hydraulic longitudinal movement, Permanent magnet 250 x 150 mm, wet grinding equipment, Safety device according to DIN EN 60204-1 (VDE 0113-1), Balancing scale, balancing mandrel, Disc puller with diamond, 5 additional lens mounts, ideal for training, Digital measuring bar for transverse adjustment Weight: 500 kg The machine is in a very good and immediately ready condition and can be viewed and demonstrated by us. We would be pleased if our offer is of interest to you. Errors, changes and pr ...

General: Year of construction 1998 Workpiece diameter 1 – 25 mm Cutting spindle approx. 8,800 rpm Grinding spindle approx. 4,400 rpm Cutting wheel diameter 125 x 1.5 x 20 mm Grinding wheel diameter 100 x 50 x 20 mm Dimensions and weight: Dimensions 800 x 450 mm x 1,100 mm Weight approx. 200 kg

Dear Ladies and Gentlemen, Attached are documents and photos of our sword TAM25/600 - cutting machine with accessories. I will be happy to answer any further questions - thank you very much! The machine is energized and can be inspected at any time.

centre height: 160 mm chucking diameter: 160 mm indexing: 15 ° groove width: 12 mm weight: 50 kg dimensions of the machine ca.: 550 x 230 x 200 mm - S/N: 1117 - AROWA three-jaw chuck including jaws - indexing every 15° The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
