used CINCINNATI Sabre

Machine Details Stock-No. 1105-03789 Type of machine Machining Center - Vertical Make CINCINNATI Type sabre 1250 Year of manufacture 1995 Type of control CNC Storage location HAGUENAU Country of origin UK Delivery time immediatly Freight basis FOT Technical details X-Travel 1270 mm Y-Travel 762 mm Z-Travel 820 mm spindle 11 kW spindle turning speed range 60-8,000 rpm toolpiece magazine: chain magazine 21 pieces tool taper DIN 69871 ISO 40 table-size 1,370 x 760 mm control fanuc om total power requirement 30 kVA weight of the machine approx. 9 t Additional information FANUC OM Technical details and information subject to amendments and errors.

Machine Details Stock number 1105-03824 Machine type machining center - vertical Make CINCINNATI Type SABRE 500 Year of construction 1995 Control type CNC Storage location HAGUEANU FRANCE Country of origin Great Britain Delivery time immediately Freight base AB HAGUENAU FRANCE Technical details x-travel 500 mm y-travel 510 mm z-travel 510 mm Table size 950 x 520 mm Spindle holder ISO 40 Spindle speeds 60 - 6000 rpm Spindle drive motor 5.5 kW Rapid traverse 24 m/min Tool changing device 21-fold CNC control HEIDENHAIN TNC 415 Operating voltage 380 V table load 750 kg Projection 550 mm Total power requirement 30 kVA Machine weight ca. 4 t Information - Control: HEIDENHAIN 415 - Coolant device - Machine light

Machine Details Stock number 1105-03832 Machine type machining center - vertical Make CINCINNATI Type SABRE 500 Year of construction 1995 Control type CNC Storage location FRANCE Country of origin Great Britain Delivery time immediately Freight base EX LOCATION HAGUENAU Technical details x-travel 500 mm y-travel 510 mm z-travel 510 mm Table size 950 x 520 mm Spindle holder ISO 40 Spindle speeds 60 - 6000 rpm Rapid traverse 24 m/min Spindle drive motor 5.5 kW Tool changing device 21-fold CNC control FANUC OM Operating voltage 380 V table load 750 kg Projection 550 mm Total power requirement 30 kVA Machine weight ca. 4 t Information - Control: HEIDENHAIN 415 - Coolant device - Machine light

Vertical machining center Cincinnati Millacron Traverse path x 1270 mm Y: travel 660 mm Z: travel 660 mm CNC control: Acramatic 850SX Table size: 1,370 x 660 mm Table load: 910 kg Rapid traverse x/Y/Z: 15,000 mm / min. Spindle speeds: 60-8,000 rpm. Spindle recording: ISO 40 Distance from spindle - table min/max: 150/880 mm Tool changers: 21 items Equipped with:-cooling device -Hand Council operation -Complete instructions Country of origin: England Spindle motor: 9 kW Machine weight: 8.000 kg Machine WxDxH: 3,600 x 2.900 x 3.000 mm

Inv. Num. : 7681 Type: SABRE 1000 Producer: Cincinnati Milacron Generated: Parameters: Control system: HEIDENHAIN TNC 426CB X-axis travel: 1016 mm Y-axis travel: 508 mm Travel Z-axis: 558 mm

Tip height: Grinding diameter 250 mm centre distance: loop length 575 mm grinding wheel dimensions: 500 x 60 x 127 mm Electr. Supply: 380 V, approx. 9 kVA kW space: 2650 x 2600 x 2240 mm weight: 3400 kg

Tip width/grinding length: 1000/1075 mm Gr. Grinding diameter: 250 mm Table swivel: +/- 8° Gr. Table longitudinal movement: 1210 mm Workpiece spindle stick swivel: 0 - 90° Spindle bore/cone: 38 mm/MK 5 Grinding spindle stick easily swivelling Hydr. Quick adjustment approx.: 50 mm Grinding wheel dimensions: 400 x 50 x 127 mm 2 grinding wheel speeds due to V-belt step disc Drive power: 3 kW Space requirement: 2900 x 2200 x 1750 mm Weight: approx. 3.5 t

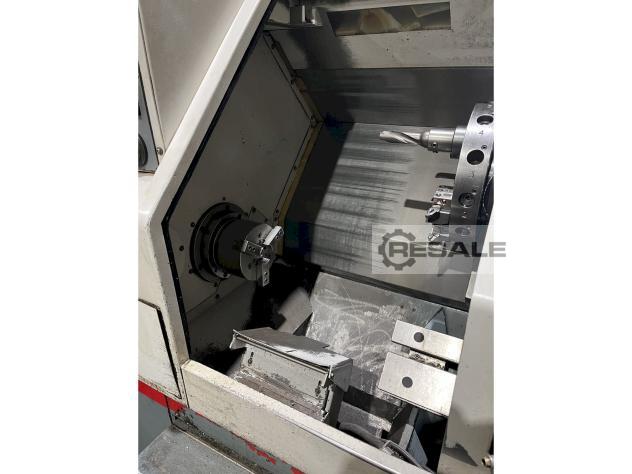

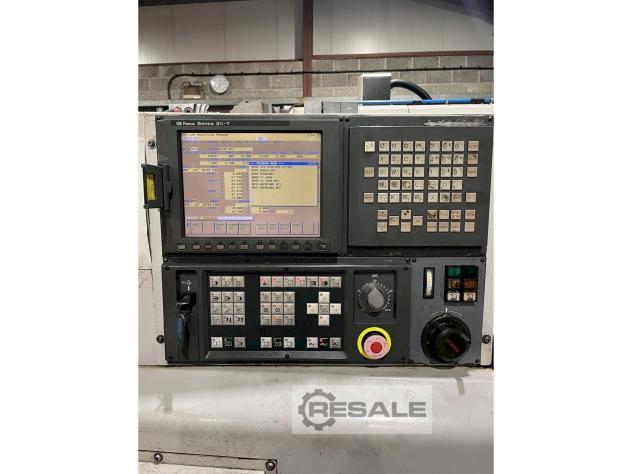

BRAND: CINCINNATI YEAR: 2001 MODEL: HAWK TC150 APPLICATION TYPE: TURNING LOCATION: UNITED KINGDOM MACHINE TYPE: LATHE AVAILABILITY: IMMEDIATELY Technical Information GENERAL DATA MEASUREMENTS WIDTH: 1495 MM MEASUREMENTS DEPTH: 1615 MM MEASUREMENTS HEIGHT: 2375 MM MACHINE WEIGHT: 3500 KG CONTROL UNIT BRAND: FANUC MODEL: 21I-T MAIN DRIVE SPINDLE SPEED RANGE: 30 - 5500 1/MIN SPINDLE BORE: A2-5 MOVEMENT X-AXIS MOVEMENT: 215 MM Y-AXIS MOVEMENT: 438 MM TURRET NUMBER OF TOOL SLOTS: 12 Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - MAX. SWING OVER BED 520 MM - MAX. MACHINING DIAMETER 270 MM - MAX. MACHINING LENGTH 438 MM - BAR CAPACITY 51 MM

Saw for Pipe Cincinnati RS 25 PZ S 1992 year 4000 Euro

Material: PVC // Details: DC motor 27 kW, degassing, counter-runner, capacity approx. 150 - 200 KG/hr.

Cincinnati Proton 75 Extruder 30D 500kg/h for Hdpe with gravimetric system 2 machines available, price is for one machine

Conical twin screw extruder Drive: DC 9kW motor heating zones: cylinder - 3, head - 3 cylinder cooling - oil

CINCINNATI CMT 80, twin screw extruder, n.2 conical screws diam 80 mm., thermoregulated barrel, vacuum degassing unit, 68 kw drive, installed power : 68

Description Conical Twin Screw Extruder Screws Diameter 45 - 97 Screws Length 390 Barrel zones 3 Nr.1 vent Thermoregulated screws Motor power 15,4 kW Forced feed

Description Conical Twin Screw Extruder screw diameter 80 Thermoregulated screws 1 vent Installe dnew lectrocal motor in 2018 Unstalled new inverter for electrical motor in 2018 Motor power 68 kW Retrofit of PLC with BCtouch control

Drilling capacity: 0 mm Number of drilling units: 0   Spindle taper: 0   CNC Brand: 0 CNC Model: 0 Technical data Number of drill-heads: 2 Drill depth (spindle stroke): 100 mm Table length: 1350 mm Table width: 290 mm Taper in spindle: 2 MT Depth of throat: 235 mm Drill head 1:: PE 10 Drill capacity: 10 mm Spindle speeds: number (steps): 10 from: 660 rpm up to: 12000 rpm Drill head 2:: NE 23 Drill capacity: 23 mm Spindle speeds: number (steps): 8 from: 220 rpm up to: 4000 rpm Voltage 50 Hz 3x: 380 Volt Machine´s weight about: 300 kg Overall dimensions machine: Length: 200 mm Width: 850 mm Height: 1700 mm Various accessories: Vice: width: 100 mm Drill chuck: 2x Adjustable depth stop

Drilling capacity: 0 mm Number of drilling units: 0   Spindle taper: 0   CNC Brand: 0 CNC Model: 0 Technical data Number of drill-heads: 2 Drill capacity: 10 mm Table length: 1040 mm Table width: 350 mm Spindle speeds: number (steps): 10 from: 660 rpm up to: 12000 rpm Voltage 50 Hz 3x: 380 Volt Machine´s weight about: 350 kg Overall dimensions machine: Length: 1150 mm Width: 550 mm Height: 1700 mm Various accessories: Drill chuck: 0.5 - 10 mm Adjustable depth stop

GENERAL CHARACTERISTICS, Grinding Wheel Dimensions Ø406.4 x Ø254 x 101,6 mm, Regulating Wheel Dimensions Ø228.6 x Ø101.6 x 101,6 mm, Ø min / max to grinding 80 mm, DIMENSIONS AND WEIGHTS, Long 1.600 mm, High 1.550 mm, Width 900 mm, Weight 2.500 Kg aprox.

Technical data Centre height: 390 mm Distance between centres: 1600 mm Grinding wheel: Diameter: 600 mm Width: 80 mm Bore: 305 mm Max. grinding diameter: 600 mm Workpiece weight on centres max.: 400 kg Grinding wheel speeds: Peripheral speed: 30 m/s Angular displacement Work piece spindle head: speeds: number (steps): 6 from: 16 rpm up to: 168 rpm Spindle hole: 38 mm Spindle taper:: 5 MT Taper in tailstock:: 5 MT Table angular displacement: +/-10 ° Table speed: stepless from: 0.1 m/min up to: 6 m/min Voltage 50 Hz 3x: 380 Volt External Grinding wheel motor: 15 kW Workpiece spindle motor: 2.2 kW Machine´s weight about: 8000 kg Overall dimensions machine: Length: 4400 mm Width: 2300 mm Height: 2250 mm Various accessories: Coolant system: 450 L Flange with wheel Lamp Hydraulic tailstock

Cincinnati Grinding Machine 2 Technical Details Type of machine: 60" x 240 Year of Installation: 1954 Dimensions Distance between centers: 240" (6096 mm.) Max. working diameter with new stone: 60"(1524 mm.) Max. allowable workpiece weight: 58967 Kg. (58.967 T) Stone Dimensiones: 36”x4”x20”(914x101.5x508mm.) Stone Speeds: 300 ̴ 700 Rpm Drive Head Spindle Speed: 0 ̴ 35 Rpm Longitudinal Slide Motion Feeds: 400 ̴ 2520 mm/min. Rapid movement: 2520 mm/min Cooling Devices Liquid capacity in the tank: 2568 liters

10′ x 3/4″ Cincinnati Mechanical Shear Material Width: 10′ Thickness: 3/4″ Serial # 6210 Model # 14611 Hardness: 300 Brinell 11 Hold-Downs Adjustable Entry Edge Guides

60″ x .135″ x 20,000Lb Cincinnati – Forte Loop Slitting Line Material Width: 12″ – 60″ , Thickness: .010″ – .135″, Weight: 20,000Lb, Coil ID: 16″ – 24″, Coil OD: 72″, Speed: 600 fpm, Direction: Left to Right. Entry Turnstile, Entry L-Type Coil Car, Mandrel Uncoiler with Hold-Down Roll, Powered Peeler, Driven Pinch Rolls, PVC Applicator, Entry Shear, Two Slitting Heads, Injection Design, 5″ & 7″ Arbor Diameter, 75HP DC Motor, Two (2) Hydraulic Scrap Winders, Pit Cross Over Table, Drag Board & Rotary Tension Stand, Recoiler with Over-Arm Separator & Push-Off, 150HP DC Motor, Exit L-Type Coil Car & Turnstile. Electrics, Hydraulics, Controls, Tooling, Spare Parts

10′ x 3/8″ Cincinnati Mechanical Shear Material Length: 10′ Material Thickness: 3/8″ Front Guage Gap: 4″ Speed: 60 spm Auto Lube Number of Hold-Downs: 11 Electric Foot Pedal Digital Control Motor: 8HP AC

12′ x 1/4″ Cincinnati Mechanical Shear Material Length: 12′ Material Thickness: 1/4″ Model: 1812 Serial # 30782 Gap: 4″ Speed: 60 spm Auto Lube Number of Hold-Downs: 12 Electric Foot Pedal Digital Control Motor: 15HP AC

12″ x .250″ Cincinnati Mechanical Shear Material Length:12′ Material Thickness: 1/4″ Model: 1812 / Serial # 33664 Gap: 4″ Speed: 60 spm Auto Lube Number of Hold-Downs: 12 Electric Foot Pedal Digital Control Motor: 12HPAC
