used AGIE Agiecut

AGIE AGIECUT CLASSIC 2S wire EDM machine built in 2004 in Switzerland is used for the production of, among others, precision dies, tools and punches. Workpieces with a maximum weight of 450 kg are machined using electrical erosion, which can achieve complex shapes in even the hardest materials. This process is performed in a dielectric-filled work tank using a wire with a maximum diameter of 0.33 mm, which is threaded through a special AGIEJET system. The workpieces machined in this way do not require any other secondary processes such as polishing to be undertaken. The AGIECUT CLASSIC V2 wire EDM machine also features an intuitive CNC control with many useful functions. It is possible to purchase the dedicated cooler shown in the photos at an additional cost – price negotiable. The AGIE EDM machine weighs 2580 kg. Technical specifications of the AGIE AGIECUT CLASSIC 2S EDM machi ...

WIRE EROSION MACHINE - AGIE AGIECUT EXCELLENCE 2F This is a machine of the renowned Swiss brand Agie of great versatility and very high precision in wire erosion. ACCESSORIES INCLUDED - Wire Press 214MM GTAI214300 - Side clamping grinding press - GTV40 Precision Grinding Press - Vertex - Clamping Bar for workpiece holder - Magnetics 20MM Kit 6 Units GENERAL CONDITION - Equipment new in 1999 - Completely reconditioned and overhauled in 2019 - After revision had only 152 hours of use - The machine is in perfect working order and meets the demanding factory specifications (Annex 1) - Can be proven in operation Regarding the Agiecut Excellence 2F, is an excellent machine for precision with glass linear scales on the X and Y axis and equipped with 5 axis. This model is the most precision one on its class. We also offer some accessories: · Prensa de Fio 214MM GTAI214300 ·  ...

This 3-axis AGIE AGIECUT CLASSIC S erosion machine was manufactured in 2000. It has impressive axis movements with x=350mm, y=250mm, and z=256mm, providing ample flexibility for handling erosion tasks. The machine accommodates a maximum piece size of 750mm in length, 550mm in width, and 250mm in height, and it can manage weights up to 200kg. The dimensions and capabilities make it suitable for a wide range of erosion processes, ensuring detailed and precise outcomes. The AGIE AGIECUT CLASSIC S machine we have for sale is designed for robust performance and precision. Contact us for more information about this erosion machine.

AGIE AGIECUT 150 Wire EDM machine YOM-not written, about 1995 Control AGIEMATIC CF 50 AGIEPULS MMD Electric Control cabinet DA-15/PF AGIE RC 123 Table dimensions: 560x445 mm Maximum travel length X-axis: 300 mm Maximum travel length Y-axis: 200 mm Maximum travel length Z-axis: 251 mm Travel length U-axis ( -): 30 mm Travel length V-axis ( -): 30 mm Maximum workpieces length: 810 mm Maximum workpieces height: 250 mm Maximum workpieces width: 580 mm Largest workpiece weight: 450 kg Minimum starting hole: 2,0 diameter Max. Threadable workpiece height: 220 mm Wire diameter: 0,1 - 0,33 mm Max. Wire spool weight: 16 kg Dimensions 2325x1620x2130 mm Machine weight: 2900 kg In production at the moment.

AGIE AGIECUT 100 D Wire EDM machine YOM-not written, about 1990 Serial No. 144 Control AGIEMATIC CD AGIEPULS MM Electric Control cabinet DA-15/AF AGIE RC 123 Table dimensions: 560x445 mm Working travel: X: 300 mm Y: 200 mm Z: 256 mm Wire diameter: 0.1 - 0.3 mm Axis U, V: ±30° Working detail dimensions: length:810 mm width:580 mm height:250 mm Working detail weight: 200 kg Machine weight: 2 910 kg Dimensions 1700x1550x2130 mm In production at the moment.

Wire erosion machine make AGIE type Agiecut AC 100Machine -No: 117 built in 1988Working area X: 300 mmWorking area Y: 200 mmWorking area Z: 250 mmTable length: 510 mmTable width: 580 mmWorkpiece dimensions: 810 x 580 x 250 mmWorkpiece weight max.: 200 kgWire diameter: 0.03 - 0.3 mmTotal power requirement: 10 kWWeight approx: 3.0 tonsWith- Agiepuls MM- Operating hours 33976 hrs.used, in very good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools

AGIE AGIECUT 150 HSS CE Wire EDM machine YOM 1997 Control AGIEMATIC CF 50 SE AGIEPULS HSS Electric Control cabinet DA-19 Table dimensions: 560x445 mm Maximum travel length X-axis: 300 mm Maximum travel length Y-axis: 200 mm Maximum travel length Z-axis: 251 mm Travel length U-axis ( -): 30 mm Travel length V-axis ( -): 30 mm Maximum workpieces length: 810 mm Maximum workpieces height: 250 mm Maximum workpieces width: 580 mm Largest workpiece weight: 450 kg Minimum starting hole: 2,0 diameter Max. Threadable workpiece height: 220 mm Wire diameter: 0,1 - 0,33 mm Max. Wire spool weight: 16 kg Dimensions 2325x1620x2130 mm Machine weight: 2900 kg In production at the moment.

x-travel: 350 mm y-travel: 250 mm z-travel: 256 mm max. size of workpiece: 750 x 550 x 250 mm U-axis: +/- 70 mm V-axis: +/- 70 mm rapid traverse X/Y/Z axis: 1,5 / 1,5 / 0,6 m/min rapid traverse U/V-axis: 0,6 m/min max. concentricity: 30° / 100 mm control: AGIEVISION wire dia.: 0,1 - 0,33 mm speed of wire: 60 - 300 mm/sec wire retraction: halbautomatisch total power requirement: 9,1 kVA weight of the machine ca.: 3,6 t dimensions: 2,21 x 2,21 x 2,22 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

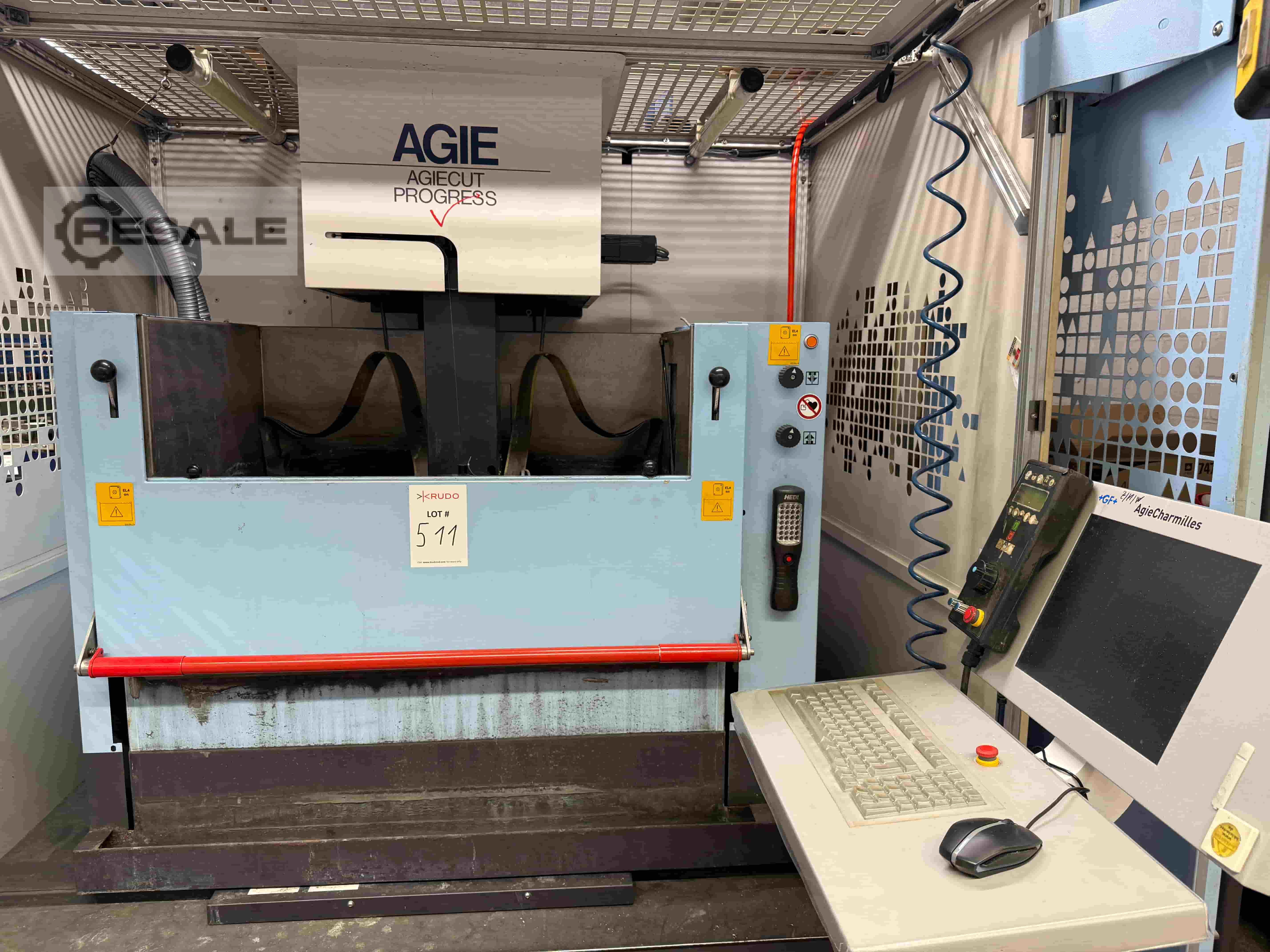

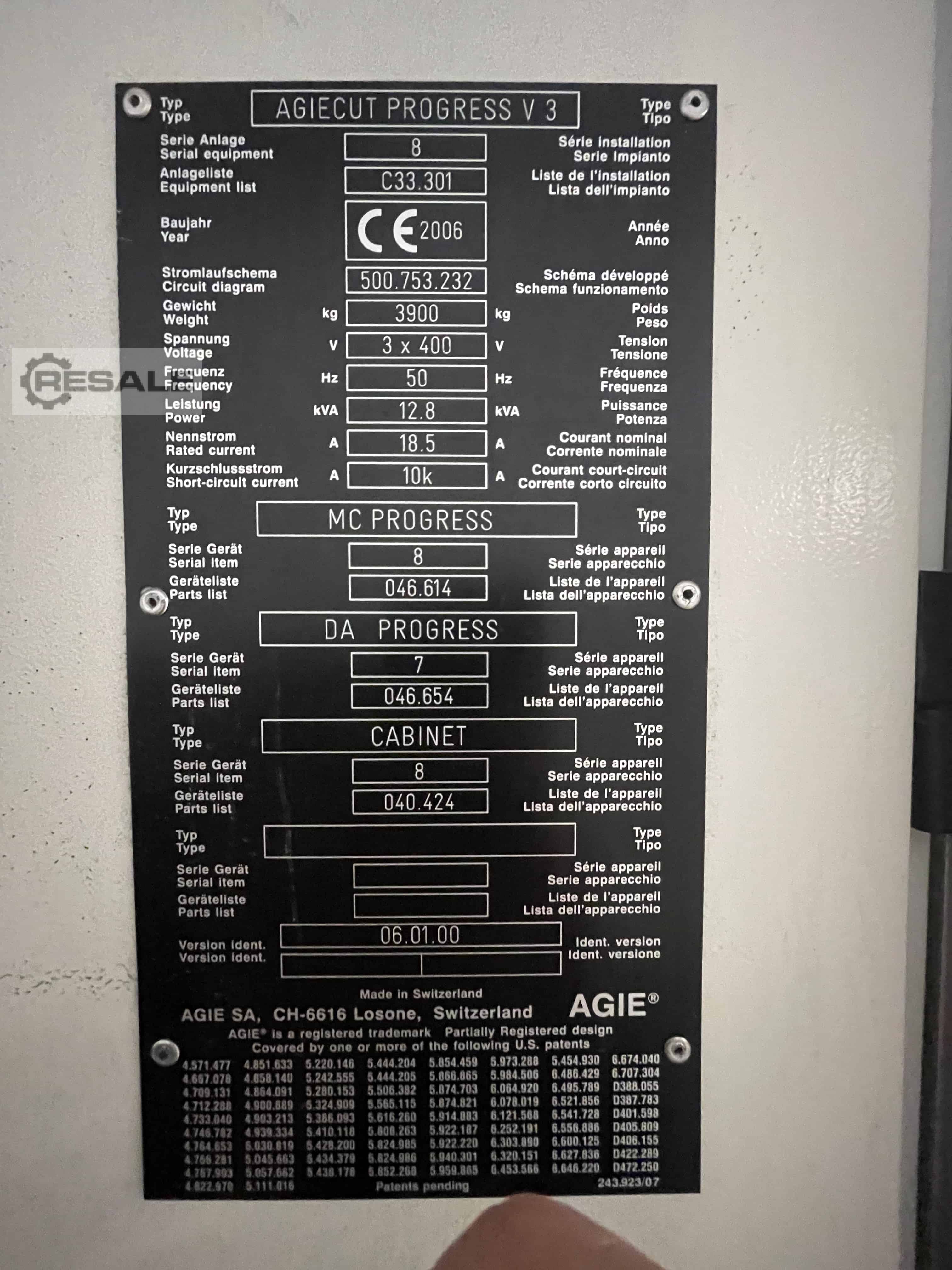

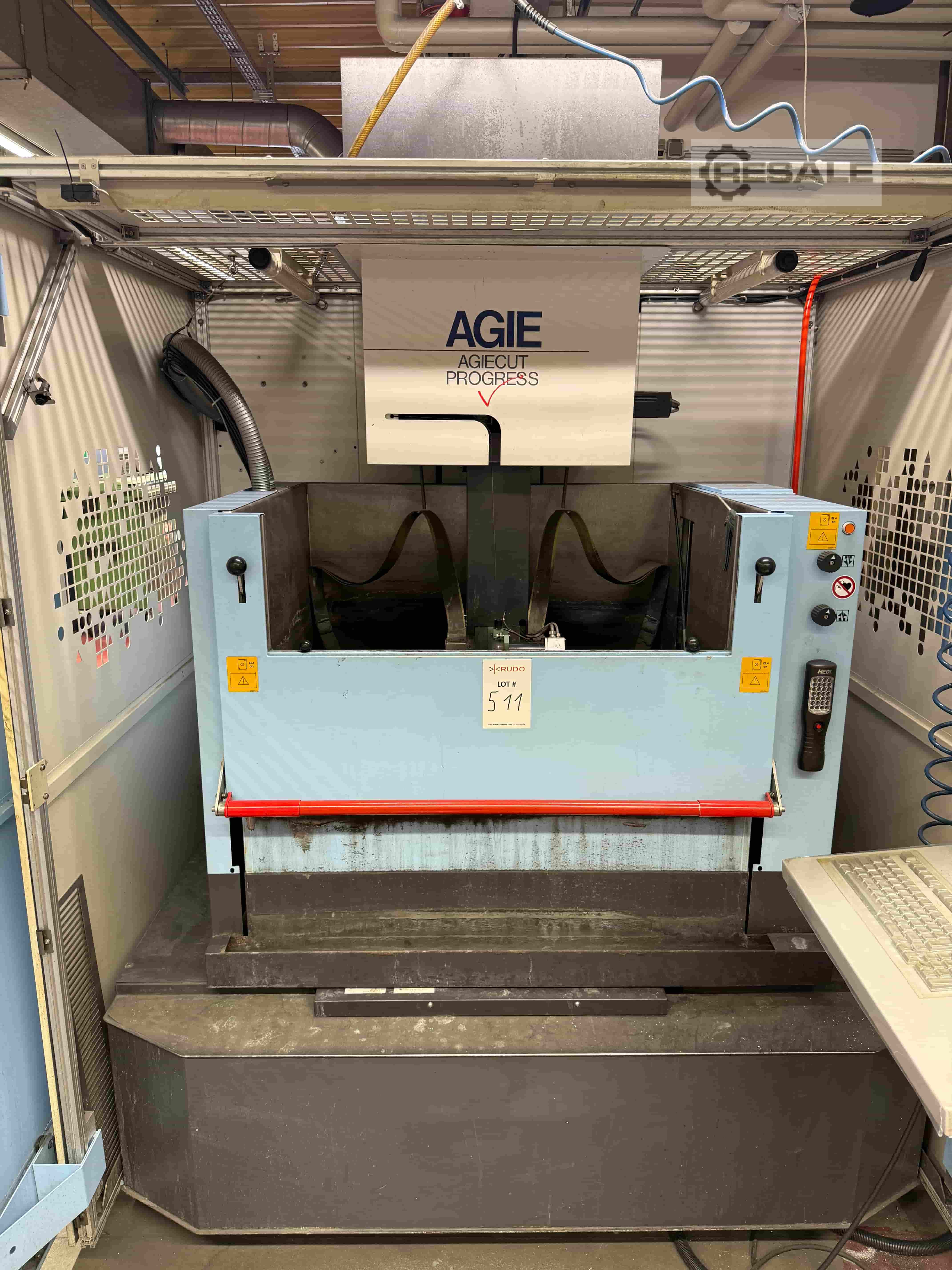

table length: 500 mm table width: 350 mm ampere: 65 A Control: AGIEVISION 5 CNC total power requirement: 20 kW weight of the machine ca.: 4000 kg dimensions of the machine ca.: m A G I E (Switzerland) CNC - Controlled Wire Cutting EDM Machine Model AGIECUT PROGRESS V 3, Year 2007 Working range, X Y Z (=height) 500 x 350 x 426 mm Wire head, U-V axis (helical/taper cuts) + / - 30 °/ +/- 70 mm Resolution of axes 0.0001 mm Speed for positioning the axes up to 3 m/Min. Tolerances (If machine is new) 4 µ Workpiece dimensions, L x W x H max. 1.050 x 650 x 420 mm Max.weight of workpiece with/w.o. Dieelektricum 400/800 kg Clamping System Universal Beams with fixing holes Cutting wire Ø 0.2 – 0.33 mm Size of wire roll up to 25 kg Cutting speed of wire  ...

BRAND: AGIE YEAR: 2001 MODEL: AGIECUT EXCELLENCE 2F APPLICATION TYPE: EDM LOCATION: GERMANY MACHINE TYPE: EROSION MACHINE AVAILABILITY: IMMEDIATELY Technical Information GENERAL DATA MEASUREMENTS WIDTH: 2215 MM MEASUREMENTS DEPTH: 2215 MM MEASUREMENTS HEIGHT: 2220 MM MACHINE WEIGHT: 3600 KG MEDIA MAIN ELECTRONIC CONNECTION: 3 X 400 V - 50 HZ POWER CONSUMPTION: 9 KVA Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - WORKPIECE DIMENSION: 750 X 550 X 250 MM EXTRA INFORMATION - DEFECTIVE MOTOR: ESTIMATED REPAIR COSTS 5.000€ ( SPECIALIZED COMPANY )

Agie Excellence wire-cutting machine for sale. Model Agiecut AC2 Excellence Year 2000 X 350 Y 250 Z 255 L2000xB22000xH2250 2600kg Clamping frame and various accessories Find more here - / Contact us at -

Agie Excellence wire-cutting machine for sale. Model Agiecut Excellence3 Year 2000 35’520h, Eroding hours 17’900h Agievision 14.062 W4 500 x 350 x 256 2800mm x 2400mm x 2250mm 4400kg Clamping frame and various accessories Find more here - / Contact us at -

Inv. Num. : 7740 Type: AGIECUT 150-HSS Producer: AGIE Created: 1997 Parameters: Control system: AGIEMATIC CF50 Switch-on hours: 75223 h Table dimensions: 560x445 mm Max. travel length of the X-axis: 300 mm Max. travel length of the Y-axis: 200 mm Max. travel length of the Z-axis: 251 mm Feed length in the U-axis (-): 30 mm Feed length in the V-axis (-): 30 mm Maximum workpiece length: 810 mm Maximum workpiece height: 250 mm Maximum workpiece height: 580 m Max. workpiece weight: 450 kg Machine height: 2130 mm Machine length: 2325 mm Machine width: 1620 mm Machine weight: 2900 kg

X axis (longitudinal) 400 mm Y axis (transverse) 250 mm Z axis (vertical) 256 mm Max length of the piece 860 mm Max workpiece width 580 mm Maximum workpiece weight 850 kg Type of the CN Agiematic Length of the tank 810 mm Width of the tank 580 mm Height of the tank 250 mm Max height of the piece 250 mm Automatic threading Yes Weight approx. in kg. 2350

Technical details x-way 350 mm y-way 250 mm z-way 256 mm Max. Workpiece dimensions 750 x 550 x 250 mm U-axis +/- 70 mm V-axis +/- 70 mm Rapid traverse X / Y / Z axis 1.5 / 1.5 / 0.6 m / min Rapid traverse U / V-axis 0.6 m / min Max. Taper 30 ° / 100 mm control AGIEVISION Wire diameter 0.1 - 0.33 mm Wire speed 60-300 mm / sec Wire feeder semi-automatic Total power requirement 9.1 kVA Machine weight approx. 3.6 t Dimensions L x W x H 2.21 x 2.21 x 2.22 m

Description: Operating hours: 157,237.26, eroding hours: 56,304.83, voltage 3 × 400 volts, frequency 50 hz, power 9 kVA, rated current 13.1 amps, without CE certificate and without tools, without filter Technical data: - Maximum workpiece dimensions - Length: 800 mm - Width: 500 mm - Height: 215 mm - Maximum workpiece weight: 400 kg - Travel (X/Y/Z): - X-axis: 350 mm - Y-axis: 250 mm - Z-axis: 256 mm - U/V-axis travel: - U-axis: ±70 mm - V-axis: ±70 mm - Maximum cutting taper: ±30° at 100 mm workpiece height - Wire diameter: 0.1 mm to 0.33 mm z-motion: 256 mm, x-motion: 350 mm, y-motion: 250 mm, weight approx.: 4,500 kg, Approx. Onsite Dimension. (l x w x h): 2,800 x 2,400 x 2,300 mm

Description: serial number 120 X Axis 300 mm Y Axis 200 mm Z Axis 256 mm max. workpiece length 810 mm Approx. Onsite Dimension. (l x w x h): 1,700 x 1,550 x 2,130 mm, weight approx.: 2,910 kg

Longitudinal X: 350 mm Cross Y: 250 mm Vertical Z: 256 mm Ampere: 14 A CNC Brand: _Unknown / Other EDM machineAgie - Classic 2S MACH-ID 7628 Make: Agie Type: Classic 2S Year: 2001 The AGIE AGIECUT CLASSIC 2S erosion machine, manufactured in 2003 in Austria, is used for machining details by electrical erosion in order to obtain complex and difficult-to-manufacture shapes. The extremely reliable and precise machine has the function of automatic wire threading with a diameter of up to 0.33 mm, which allows the processing of details with maximum dimensions (length x width x height) 750 x 550 x 250 mm and a weight of 450 kg.  X-Axis:                 350mm Y-Axis:                 250mm Z-Axis:                 256mm Table size L x W / or  ...

Filter cartridges for AGIE sinkers Electrolyte filter cartridge Filter cartridges NEW and org. Packed Technical data please clarify briefly Tel. . Electrolyte filter cartridge Price pcs. 85 € net Complete. Sentence 6 pcs. New and Org. Packed 480 € Net plus 19% tax, freight and packaging Pradler Machine Service Tel. 05242 / 43186

AGIETRON HYPERSPARK 2 HS Sinker 2008 Design with lowerable working container Work table with 50 mm hole grid travel X/Y/Z 350x250x350 mm -Workpiece size: LxWxH=650x580x250 mm or 820x420x250 mm Integrated C axis, for rotation, indexing and erosion Electronic laser measurement of all axes Detection of the electrode and workpiece position 1 set of documentation (CD + manuals) AGIEVISION 5 Control with multitasking DNC interface with transmission protocolXon/Xoff and LSV2 2 serial interfaces RS 232C for DNC and master computer LAN connection for data exchange via in-house network RJ45 3 drives: hard drive, 3 1/2" floppy disks, CD-ROM Without tool changer

AGIETRON IMPACT 2, built in 2002 AGIEVISION Control Travel: X = 350 mm, Y = 250 mm, Z = 350 mm Max workpiece dimensions (L x W x H): 650 x 580 x 250 mm x 820 x 420 x 250 mm Max workpiece weight: 400 kg Distance table to pinole: 170-520 mm Pinole with automatic chuck Mecatool Including Astrol electrode and pallet changer Working container can be reslid for optimum accessibility; Incl. C-axis for rotation, indexing and erosion (U=0-60 rpm); AGIE IPG high-performance generator with 72 A Removal rate copper/steel: 450 mm3/min Removal rate graphite/steel: 530 mm3/min Best achievable surface Ra 0.2 microns 10.4" LCD color screen, lifting keyboard and mouse, JOGBOX for the axis process 2r90di Machine weight (net): 3200 kg Machine dimensions (L x W x H): 2689 x 1855 x 2593 mm

CNC EDM machine Fabr. AGIE type Agietron 200 CSeries 03, device 04, list of devices 356804.5 built in 1987Travel X: 500 mmTravel Y: 350 mmTravel distance Z: 500 mmSupport surface: 800 x 630 mmMax. Workpiece dimensions: 1000 x 700 x 320 mmInner container dimensions: 1070 x 740 x 420 mmWorkpiece weight approx. 1200 kgMax. Weight of the electrode: 400 kgDistance table - quill: 180/680 mmPosition deviation (PA): 0.005 mmaverage position spread (PS): 0.003 mmmean inverse span (u): 0.002 mmResolution: 0.001 mmNumber of flushing connections: 10manual flushing: 1/20 l / minautomatic dosing spray: 8 / 3-800 ml / minControl mode: Multi-taskingSimultaneously controllable axis: 4Simultaneously controllable rotative and linear axes: C with X, Y, ZStorage Capacity: 3.5 , MS-DOS, 720KBScreen: color 14 Interface: RS 232 / CV 24Rated current: 60 ARemoval rate: 450/590 mm3 / minNumber of channels: 1Agiepu ...

Die sinking machine make AGIETRON type EMS 3.30Year of construction 1979Table size: 630 x 500 mmgr. workpiece height: 340 mmAdjustment = X: 420 mmAdjustment = Y: 320 mmgr. workpiece weight: 8000 NReading option: 0.01 mmgr. distance of table quill: 700 mmWork container: 945 x 650 x 465 mmFeed travel = Z: 400 mmRapid traverse and servo speed: 600 mm / minOutreach: 500 mmAgiepuls generator: Type 60 L / DDLRated current: 60 APulse voltage: 100/150/270 V.Dielectric aggregate: Type DA 220Capacity: 450 mmWeight: 1540 kgvery little used, in very good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools

Longitudinal X: 0 mm Cross Y: 0 mm Vertical Z: 0 mm Ampere: 0 A CNC Brand: 0 CNC Model: 0 Operating hours: 12000 Technical data Working table: Length: 680 mm Width: 450 mm Max. dimensions of work piece: Length: 1000 mm Width: 550 mm Height: 220 mm Table load max.: 750 kg Longitudinal traverse (X-axis): 350 mm Cross traverse (Y-axis): 220 mm Vertical travel (Z axis): 220 mm Taper-cut +/-: 30 ° Diameter of electrode wire: from: 0.33 mm up to: 0.10 mm Max. cutting speed with wire 0.33 mm: 400 mm2/min Total power required: 10 kVA Dielectric aggregate: Contents: 760 l Air connect: 6 - 7 bar Voltage 50 Hz 3x: 400 Volt Total power required: 12 kVA Weight total installation approx.: 2100 kg Overall dimensions machine: Length: 2050 mm Width: 2020 mm Height: 2000 mm Various accessories: Cooling unit for fluttines

AGIE AGIETRON 100 C Tool Change 16 positions Control on axes + axis C
